Since moving house a few years ago, I have been building a new layout.

Due to work commitments and illness, this has been a long time coming, but I, or we, are slowly getting there!

I hope to finish the main part of track laying this weekend, subject to some rail clamps arriving in the post.


The layout will be Massoth controlled, and I will be using Stellwerk to control the routing of trains.

Today I have done the track plan on Stellwerk....


  • Like
Reactions: mike
idlemarvel

idlemarvel

Neither idle nor a marvel
13 Jul 2015
2,100
276
Ascot
Very good. I look forward to seeing pictures of the actual layout, and how your computer control works out.

Gizzy

Gizzy

A gentleman, a scholar, and a railway modeller....
26 Oct 2009
33,138
700
59
Cambridgeshire
www.gscalecentral.net
The track starts from the back of the house. I have a pair of Keter benches bolted together down the side of the conservatory, that contains 3 rakes of freight wagons.

This is the siding area after the Keter 'depot'. The round slab is where my Heyn turntable will be located....



  • Like
Reactions: mike
Gizzy

Gizzy

A gentleman, a scholar, and a railway modeller....
26 Oct 2009
33,138
700
59
Cambridgeshire
www.gscalecentral.net
The sidings lead into the station area which will have 3 platform roads....


Gizzy

Gizzy

A gentleman, a scholar, and a railway modeller....
26 Oct 2009
33,138
700
59
Cambridgeshire
www.gscalecentral.net
At the station throat, I have installed a scissors crossover. The diamond crossing is a Heyn kit....


Last edited:
Gizzy

Gizzy

A gentleman, a scholar, and a railway modeller....
26 Oct 2009
33,138
700
59
Cambridgeshire
www.gscalecentral.net
The double tracks then lead down the garden towards a junction....


  • Like
Reactions: mike
P

Paul M

Registered
25 Oct 2016
4,538
714
57
Royston
Great to see it looking so good

JimmyB

JimmyB

Semi-Retired; more time for trains.
23 Feb 2018
2,553
499
Weston-super-Mare
Gizzy looks like its progressing nicely :)

Adam1989

Adam1989

Registered
11 Mar 2018
165
97
31
Calne wiltshire
Impressive layout keep up the good work

AustrianNG

AustrianNG

Director of my railway
16 Sep 2015
961
247
Wirral
Ditto the above plus the garden setting looks really good.
I se you are using auto decouplers......

Last edited:
T

Timmo

Registered
25 Apr 2016
24
6
Bath
Impressive layout Gizzy, and nice to see a posting from Jimmy B.

Tim

Gizzy

Gizzy

A gentleman, a scholar, and a railway modeller....
26 Oct 2009
33,138
700
59
Cambridgeshire
www.gscalecentral.net
The new part of the layout has only been built in the last couple of months.

The junction leads to either side of a double tracked return loop, which is currently a work in progress....


Last edited:
  • Like
Reactions: mike
Gizzy

Gizzy

A gentleman, a scholar, and a railway modeller....
26 Oct 2009
33,138
700
59
Cambridgeshire
www.gscalecentral.net

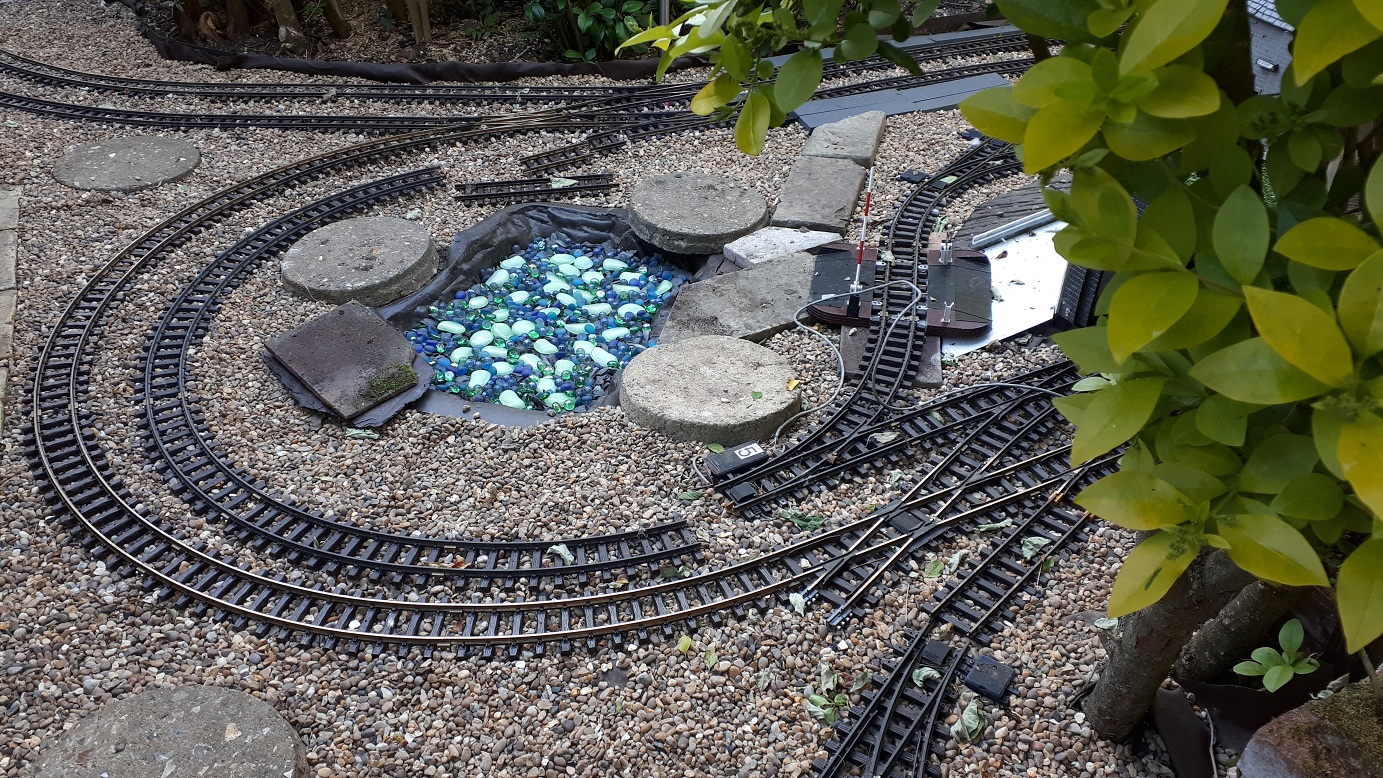

This is the double track loop at the bottom of the garden.
