What have you been printing.

casey jones snr

Registered
20 Apr 2010
8,499
6,436
70
Charnwood Forest Railway. Rothley. Leics.
My latest effort....

Drawn in TinkerCAD and printed off.



The roof (and floor) are plasticard as it seemed daft to 3D print large expanses of undetailed sheet plastic. The wheels are Lilliput metal spoked as I'm not entirely sure about the efficacy of 3D printing wheels (waddyafink?). There's still a bit of tidying-up to do and, of course, it needs painting, but I think it gives a feel for the early Southwold Railway van on which it is based.

Rik
Very nice Rik.


mike

Master at annoying..
Staff member
GSC Moderator
24 Oct 2009
50,330
3,672
Rossendale
www.gscalecentral.net
My latest effort....

Drawn in TinkerCAD and printed off.



The roof (and floor) are plasticard as it seemed daft to 3D print large expanses of undetailed sheet plastic. The wheels are Lilliput metal spoked as I'm not entirely sure about the efficacy of 3D printing wheels (waddyafink?). There's still a bit of tidying-up to do and, of course, it needs painting, but I think it gives a feel for the early Southwold Railway van on which it is based.

Rik
It's brilliant, I think the wheel problem with printing wheels is how much wears off onto the track.. Ie, lgbs own plastic wheels leave bits behind, hence going metal..


TheGlenhillsRailway

Registered
7 Jan 2018
68
99
46
leicester

Attachments

  • 128118532_2772041426341347_9024483142134417316_n.jpg
    79.8 KB · Views: 0
  • 20201116_130621806_iOS.jpg
    837.4 KB · Views: 0
  • 20201122_094739056_iOS.jpg
    641.2 KB · Views: 0
  • 20201122_094732483_iOS.jpg
    624.5 KB · Views: 0
  • IMG_20201108_160055.jpg
    450.9 KB · Views: 0
  • IMG_20201108_160109.jpg
    534.1 KB · Views: 0
  • Like
Reactions: 1 user

Rhinochugger

Retired Oik
27 Oct 2009
29,244
3,508
North West Norfolk
It's brilliant, I think the wheel problem with printing wheels is how much wears off onto the track.. Ie, lgbs own plastic wheels leave bits behind, hence going metal..
Yep - wheels, don't even try.

Two reasons: wear, as you said Mike, and weight.


Steen Rudberg

Registered
5 Apr 2016
23
15
56
Helsingør
www.5inch.dk
I have been modeling of two re-railers.
One for straight track & one for LGB R1 track.
Both are made to screw directly on the track.
The R1 version still needs some adjustment, to get closer to the track.

  • Like
Reactions: 1 user

mike

Master at annoying..
Staff member
GSC Moderator
24 Oct 2009
50,330
3,672
Rossendale
www.gscalecentral.net
Me, I'm printing boxes,packing crates ,barrels ect...worn out a belt on the print head, luckerly ender provides spares with it..ordered replacement 20210108_124304.jpg


Steen Rudberg

Registered
5 Apr 2016
23
15
56
Helsingør
www.5inch.dk
Next print will be a Depressed Center Flat Car.
Skærmbillede 2021-01-09 15.25.04.png Skærmbillede 2021-01-09 15.25.12.png
It is made of 3 parts ( actually 2 parts) 2 end parts & 1 center part.

  • Like
Reactions: 1 users

PhilP

G Scale, 7/8th's, Electronics
5 Jun 2013
27,406
2,828
Tamworth, Staffs.
I know for a model, it does not really matter..
But what material are you printing it in, and what type of adhesive will you be using?

Do you also have stl files for a depressed centre car therapist? - The mental health of our railways is important. :nerd::D:D

  • Like
Reactions: 1 user

casey jones snr

Registered
20 Apr 2010
8,499
6,436
70
Charnwood Forest Railway. Rothley. Leics.
Plans drawn by me, locomotive commissioned by me, printed by Jason at the 3D Print Shop:-

7/8ths steeple cab. 2.4Ghz radio control.

  • Like
Reactions: 2 users

LGB-Sid

Registered
19 Sep 2016
1,323
875
62
UK
Bits for the New Signal Box at Silene, got bored printing bits for my pub that take 4 to 6 hours each to print :think: I may have over done the Phones :rofl: but it takes the same time to print one or a bed full of them on a Resin Printer :) Also printed most of the Signal Box for the Bits to go in.

signal box bits.jpg

  • Like
Reactions: 2 users

gman1

Registered
2 Sep 2020
3
3
52
TX USA
Hi All,
For my Aristo-Craft SD45, I needed to modify the hood to include a nose light to match the D&RGW. Ended up recreating the hood with a slot to drop in a nose light (also 3d printed). Had to sand and putty a bit. Still some painting to be done for the safety stripes...then some weathering. Did these parts on a Flashforge creator pro using ABS. I also use simplify3d as the slicer. Thanks to everyone here for your inspiring ideas on this thread.
1610213843011.png 1610213885995.png .

  • Like
Reactions: 2 users

DGE-Railroad

The Orchard Line
26 Jan 2020
524
58
49
United Kingdom
Next print will be a Depressed Center Flat Car.
View attachment 278585 View attachment 278586
It is made of 3 parts ( actually 2 parts) 2 end parts & 1 center part.
Ooo. Is there any chance you will be making the files available Steen? I have some 3 axle buckeye trucks that are desperately in need of using and I had been thinking a depressed centre flat car would suit them nicely.
I have been trying to work up the CAD experience to design something myself. Yours looks very well thought out


DGE-Railroad

The Orchard Line
26 Jan 2020
524
58
49
United Kingdom
My poor printer is still wading through GWR coaches.

It doesnt' know it yet but the instant it's finished those, it's printing the parts for this :D
steam crane.jpg

  • Like
Reactions: 1 user

The Shed

Registered
DGE-Railroad DGE-Railroad , Darren, if you are looking for further ideas....for the SD45 or other American style diesels........


User manimal, Dan Gilchrist

  • Like
Reactions: 1 users

Steen Rudberg

Registered
5 Apr 2016
23
15
56
Helsingør
www.5inch.dk
I know for a model, it does not really matter..
But what material are you printing it in, and what type of adhesive will you be using?

Do you also have stl files for a depressed centre car therapist? - The mental health of our railways is important. :nerd::D:D
Hi PhilP

The STL's will be ready, as soon as I have printer the first proto.
I'm printing in PLA, and i join the parts with 3M screws.

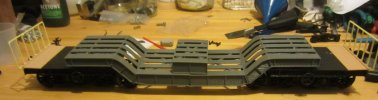

I'm also do a other version depressed center car:
002 (2).JPG
I'm not satisficed with the result, so i'm re-drawing it and moving the joints between the S-part and the center. The small part can be placen i the middel.
All 4 colors are PLA - the wooden deck is of cause a wood-PLA.

  • Like
Reactions: 1 users

PhilP

G Scale, 7/8th's, Electronics
5 Jun 2013
27,406
2,828
Tamworth, Staffs.
Very interesting, eager to see this develop.
PhilP


DGE-Railroad

The Orchard Line
26 Jan 2020
524
58
49
United Kingdom
  • Like
Reactions: 1 user

Tanker man

G scale and 5 inch ride on
10 Jun 2015
467
223
Oxford
Just to let you know ‘Dave’ prints up fine as well as the girl if printed in PLA.
Dave 683D84D5-8572-4859-B5CB-132ABBD4D106.jpeg

  • Like
Reactions: 1 user

Steen Rudberg

Registered
5 Apr 2016
23
15
56
Helsingør
www.5inch.dk
I know for a model, it does not really matter..
But what material are you printing it in, and what type of adhesive will you be using?

Do you also have stl files for a depressed centre car therapist? - The mental health of our railways is important. :nerd::D:D
Hi PhilP

Stl-files for my first project are ready in a separate tread heavy-load-center-depressed-car

- Steen

  • Like
Reactions: 1 users

PhilP

G Scale, 7/8th's, Electronics
5 Jun 2013
27,406
2,828
Tamworth, Staffs.
Thanks for the making the files available.

The new drawings make things much clearer.

PhilP
