2 into 1 will do nicely.

Riograndad

Model Railroading, boats and oil painting,
6 Jul 2013
1,977
588
66
Northampton UK

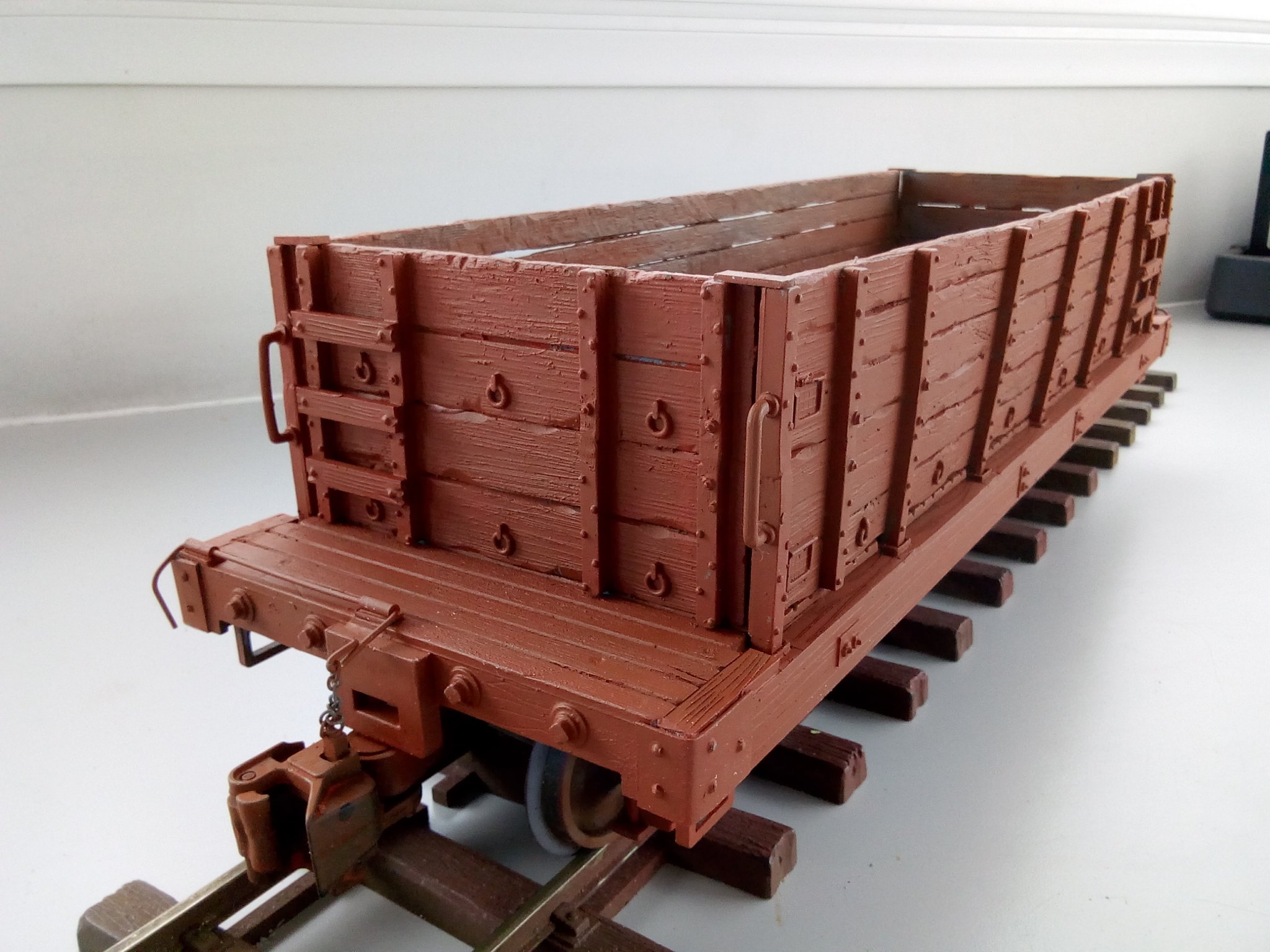

I had a couple of Nequida low sided gondolas that I never used and thought what to do with them,messing about building the upscale cars these were good donors,so work started and the plan was a pipe car and idler but halfway through I changed to a high sided gondola and a spare flat for something else later,so a few pics of the build,I`m up to first coat colour so far,the interior has just had a body colour wash over the primer for a sign of some use but no plan to weather any of the cars as my larger 1;20 locos are all paint box clean.The main frame has been beefed up and widened to make the stake pockets in the actual frame and ladders added,couplings changed and working cut bars each end,second coat paint,lettering and matt varnish to finish,not forgetting extra rivet and bolt moldings added,,trouble posting pics yesterday but appears all fine now. IMG_20190617_145915.jpg IMG_20210411_132729.jpg IMG_20210411_161245.jpg IMG_20210411_161320.jpg IMG_20210411_161300.jpg IMG_20210411_161341.jpg

  • Like
Reactions: 1 user

korm kormsen

Registered
24 Oct 2009
2,620
264
cool!

how did you achieve the outside-bent sideboards?


Riograndad

Model Railroading, boats and oil painting,
6 Jul 2013
1,977
588
66
Northampton UK
cool!

how did you achieve the outside-bent sideboards?

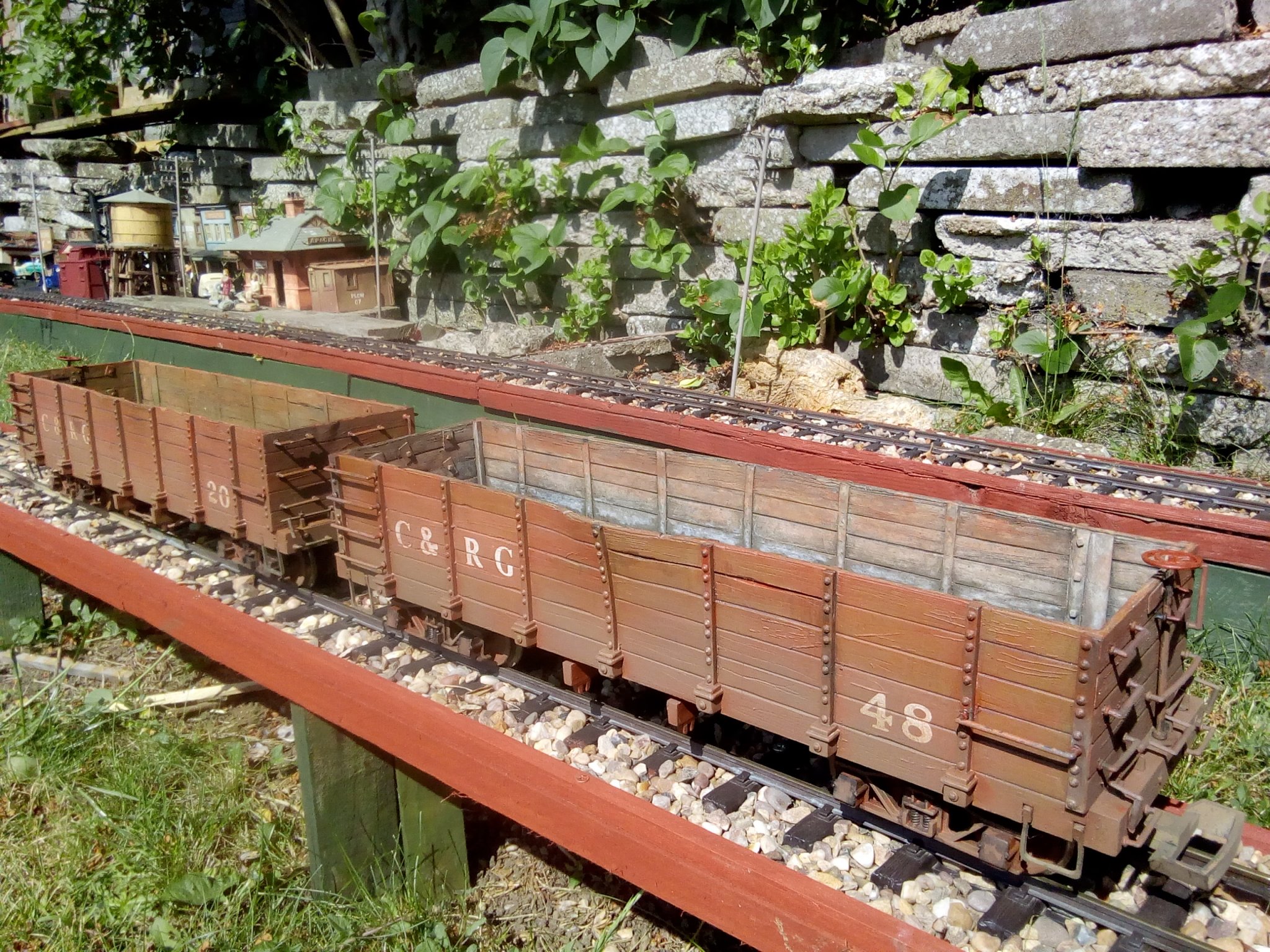

Korm,I simply used heat from the kitchen cooker and I had no problem with the current Mrs Rio!!!!;):rofl::rofl: I removed the trucks as prone to melt as thin plastic,then held the car over the heat until a little soft then using something to protect my hand bent the soft hot plastic into shape,risky job as if gets too hot the car body is ruined as it catches fire and "blobs" the plastic,small sections done with a lighter,I have also done the same to my Bachmann high side gondolas and a pic added of those although the pic is an old one that I think I have posted before.The biggest problem with this bash was matching the two low sides into the high side needed as both cars when done were different,yes matching done with heat in the same way. IMG_20190603_095722.jpg IMG_20190617_150534.jpg


korm kormsen

Registered
24 Oct 2009
2,620
264
thank you.


Paul M

Registered
25 Oct 2016
6,732
1,089
58
Royston
A heat gun works well. I've used one to bend my Binnie skips


Riograndad

Model Railroading, boats and oil painting,
6 Jul 2013
1,977
588
66
Northampton UK

dunnyrail

DOGS, Garden Railways, Steam Trains, Jive Dancing,
25 Oct 2009
19,666
3,927
72
St.Neots Cambridgeshire UK
neither do i. but i'll try a hairdryer, when the wife isn't home.
Hm never thought of that but I suspect my barely used one is nit hot enough but am going to give it a try and report back.

EDIT OK waste of electricity no effect, not worth risking a “Fine” when you try to explain what you have been using her hair dryer for. Trust me she will know!

Last edited:

korm kormsen

Registered
24 Oct 2009
2,620
264
Hm never thought of that but I suspect my barely used one is nit hot enough but am going to give it a try and report back.

EDIT OK waste of electricity no effect, not worth risking a “Fine” when you try to explain what you have been using her hair dryer for. Trust me she will know!
thanks for the warning. if that isn't hot enough, then i won't risk it.


Riograndad

Model Railroading, boats and oil painting,
6 Jul 2013
1,977
588
66
Northampton UK
Some time away on my hols so not been around for a couple of weeks but some more done on the bashes,only lettering and a body paint wash over the lettering to tone it back,not really weathering just a little age added,the white lettering was a little to bright.There is another box car under construction as I picked up a Bachmann car for 25 quid while away and the other Nequida chassis to look at when thats done. IMG_20210415_134412.jpg IMG_20210415_134359.jpg IMG_20210415_134032.jpg IMG_20210415_134326.jpg


Riograndad

Model Railroading, boats and oil painting,
6 Jul 2013
1,977
588
66
Northampton UK

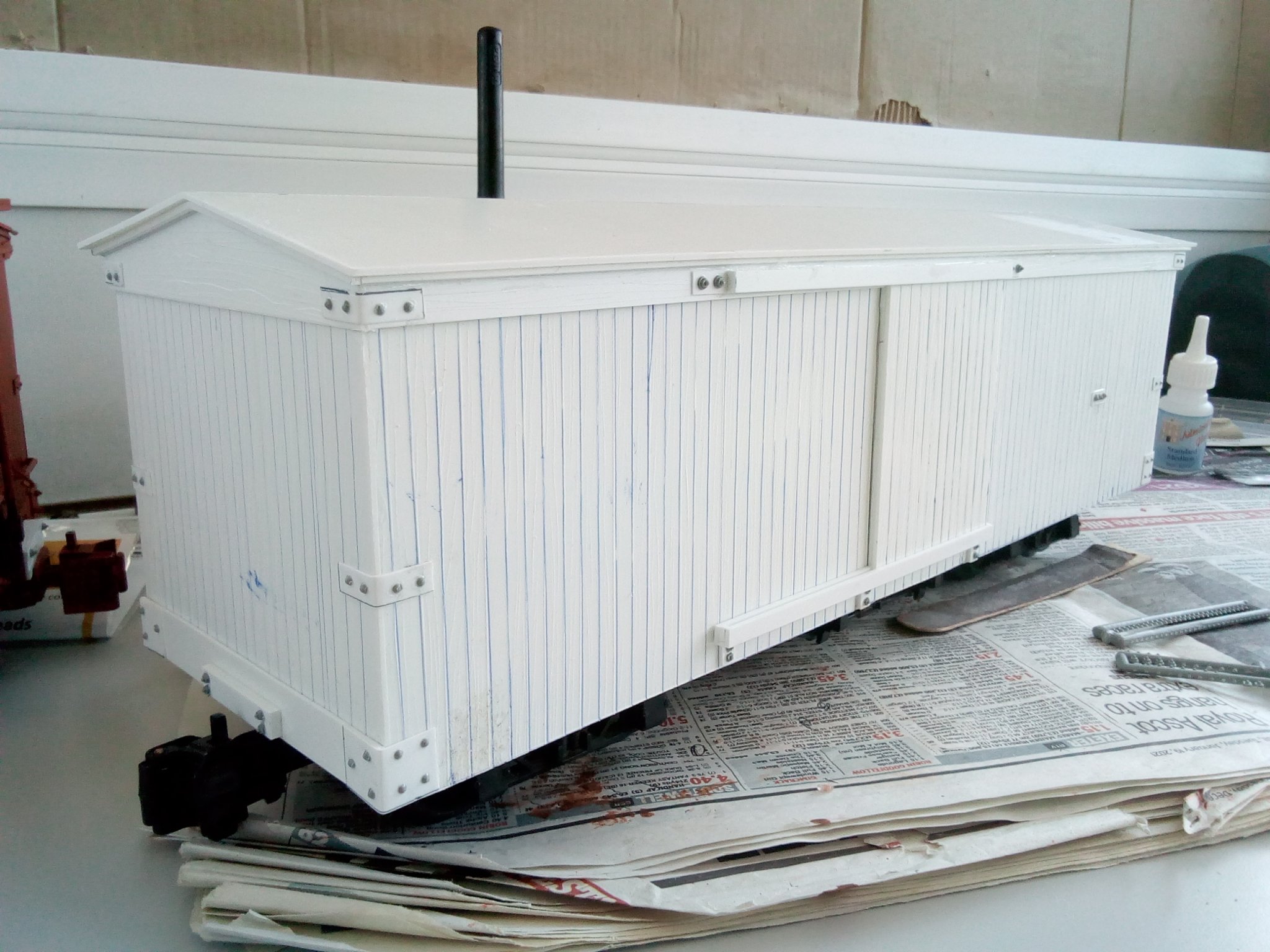

Not worth starting another thread so posting second boxcar going through the railroads shops at the moment,still some more to add and tidy up but its coming together nicely,having problems posting pics today but think its my end and finally got them on!!! IMG_20210502_091246.jpg IMG_20210502_155310.jpg IMG_20210502_161956.jpg IMG_20210502_162011.jpg
