Electric Live Steam?

tac foley said:
In the mid 1970's there was a weekly series called 'The World of Model Trains' in 48 weekly parts. In a early issue the very first article was about an indoor layout featuring the Lynton & Barnstaple railway, and the article descrobe a Manning & Wardle loco that picked up current from the track and used it to boil water. I seem to recall that the throttle used a Tri-Ang loco motor.

Does anybody else remember this?

tac
Ottawa Valley GRS [ovgrs.org]
Click to expand...
That also reminds me of a Layout by I think Manchester Model Railway Club described in one of the 50’s or 60’s Model Railway Mags of a 0 Gauge Railway Steam Powered or Controlled from the Track. Totally forgot that one, any one else remember it? Locomotives may have been powered by an internal system and the Regulator just Controlled from the Track.

stockers said:
Yes you can.
In the first instance - steam in our boilers is in a compressed state. Being pedantic there may be a difference between expansion and pressure but without pressure you cant have expansion.
I agree that to re-compress saturated steam is difficult as water droplets will form but superheated steam can be re-compressed by a simple pumping device.
Click to expand...
Yes it is the Hot Water that cannot be compressed which is why Priming is a big worry for any driver as the Water Captured can blow a Cylinder Cover off or far worse.

dunnyrail said:
That also reminds me of a Layout by I think Manchester Model Railway Club described in one of the 50’s or 60’s Model Railway Mags of a 0 Gauge Railway Steam Powered or Controlled from the Track. Totally forgot that one, any one else remember it? Locomotives may have been powered by an internal system and the Regulator just Controlled from the Track.
Click to expand...

I recall seeing that at a Manchester exhibition in the 60's and also reading an R.M. article. If I recall correctly it was three rail ! I think one common rail, one supply to boiler heater(s) and the other supply to control(s).

I remember reading of an experiment back in the eighties involving a standard guage 4-6-2 in 1;32 scale . it did work but derailed causing a short. The resultant arcing actualy melted one of the driving wheels before the poer fuse blew. They were steel tires on white metal cast wheels.

Given this is a US member's request would it be possible to work out the energy requirements to heat the boiler of, say, an Accucraft K28. We know this model has twin gas poker gas burners. We can find out what those put out in terms of heat. We can find out how much steam needs to be generated as the "engine" and what it has to move has not changed. This should be the same as the gas fired model.The final question is does the live steamer have insulated wheels ? There is a track powered version that will have.

Given this information how much in terms of volts/amps (peak requirement) would you need to replicate what the twin gas burners do if boiler is configured as an immersion heater like the smaller Hornby jobbies. Or have I missed something here. Max

Jensen, a USA based stationary steam engine builder, offers thier stationary engines with electric heating for use in school science labs and homes that do not want to fire with an open flame fuel source. Maybe use thier burner ratings as a baseline then go from there. They do have a nice website. Mike the Aspie

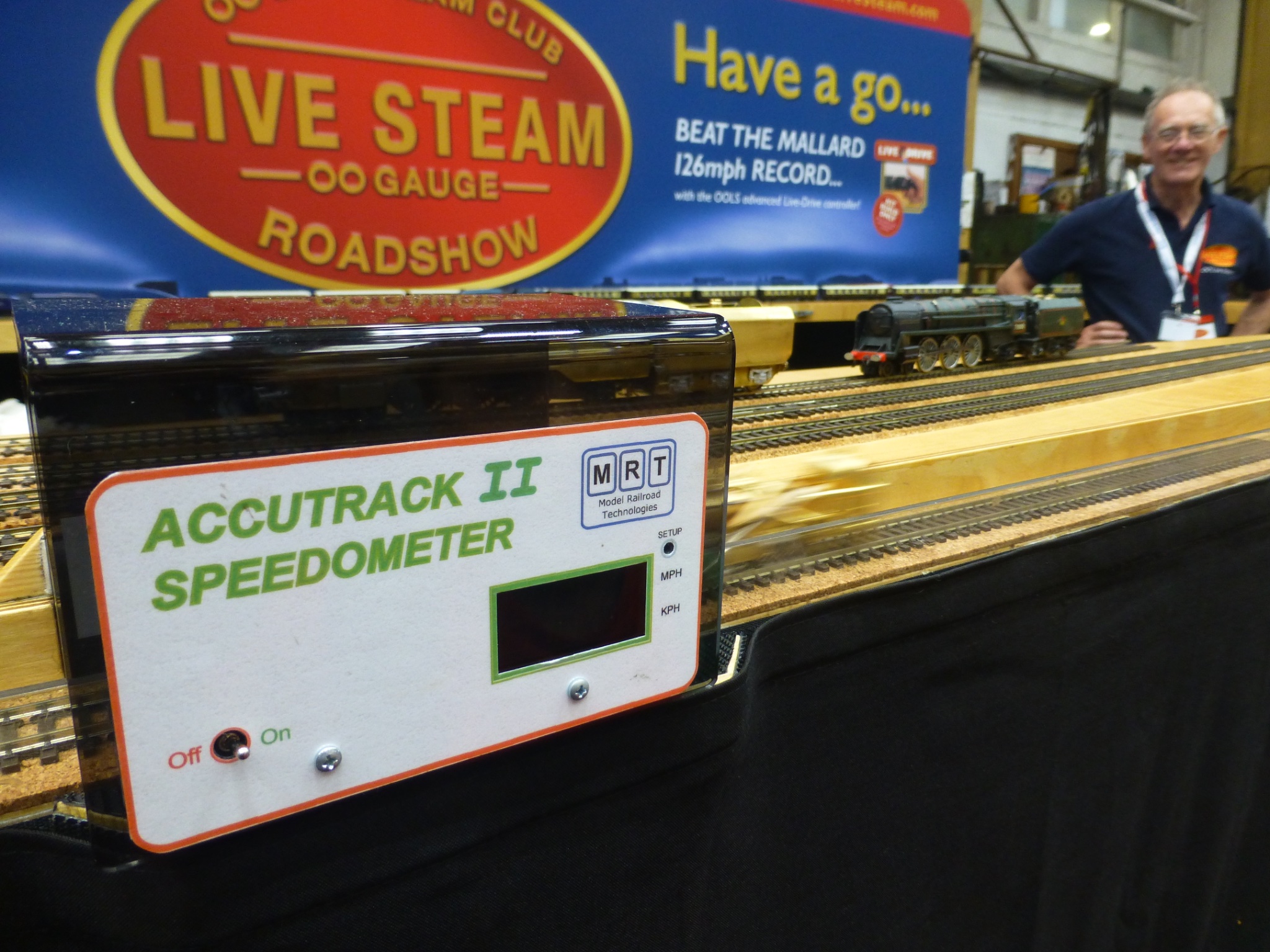

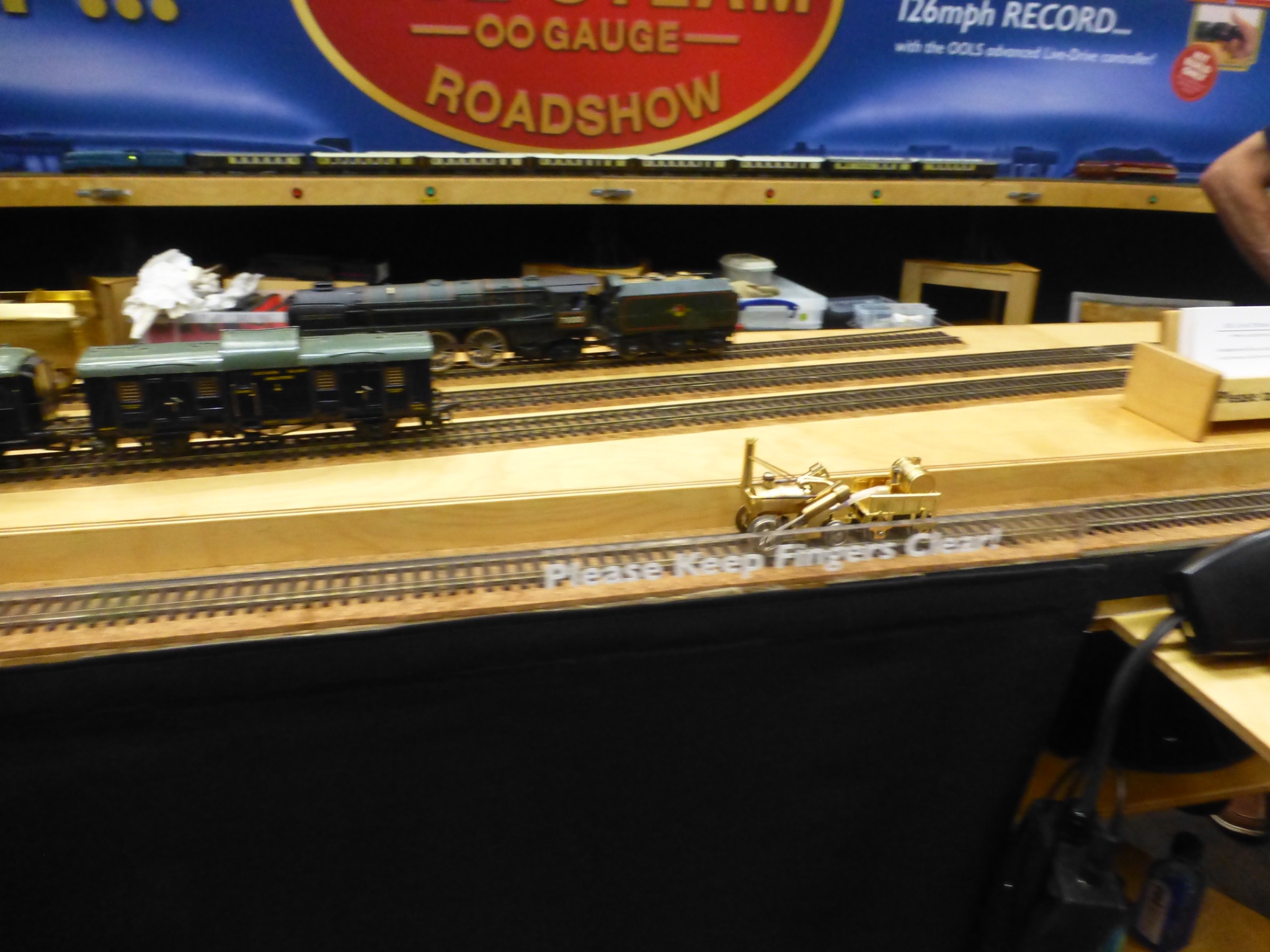

Yesterday me n my pal visited the Bluebelk Railway to see the Hornby Live Steam Railway that he has been trying to get to for some years now, we missed 2 years at Alexandra Palace due to lack of train service on Thameslink then this year it was not advertised for them to be there but they were! Still mission accomplished yesterday and he got to have a relaxing drive. There is a short time trap on the line and those things can exceed 200scale MPH! His personal challenge was to stop at a theoretical station, not managed so another visit at some stage required. They also had a meths fired 00 live steam Rocket, when I saw it I could not believe it but yes it did work though high speed, was clocked at scale 283 MPH! The skill of the builder cannot be understated, looks good with no compromises. Water in the boiler and meths in the tender tank. First picture shows it at a 20pMPH blur, second one I managed to do a pan shot. Also can be seen the in build Duke of Goucester using donor Hornby A4 parts to get another 0pLive Steam loco, these guys do wonderful work and if the layout is at a show you visit well worth a good look if live steam is your thing.P1080811.jpegP1080812.jpeg

dunnyrail said:
Yesterday me n my pal visited the Bluebelk Railway to see the Hornby Live Steam Railway that he has been trying to get to for some years now, we missed 2 years at Alexandra Palace due to lack of train service on Thameslink then this year it was not advertised for them to be there but they were! Still mission accomplished yesterday and he got to have a relaxing drive. There is a short time trap on the line and those things can exceed 200scale MPH! His personal challenge was to stop at a theoretical station, not managed so another visit at some stage required. They also had a meths fired 00 live steam Rocket, when I saw it I could not believe it but yes it did work though high speed, was clocked at scale 283 MPH! The skill of the builder cannot be understated, looks good with no compromises. Water in the boiler and meths in the tender tank. First picture shows it at a 20pMPH blur, second one I managed to do a pan shot. Also can be seen the in build Duke of Goucester using donor Hornby A4 parts to get another 0pLive Steam loco, these guys do wonderful work and if the layout is at a show you visit well worth a good look if live steam is your thing.View attachment 344544View attachment 344545
Click to expand...

Germany has a number of scratch builders in H0 -

Moonraker said:
If you ran on compressed air for any time then surely you would damage the cylinders because the lubricators work only with steam?

Regards
Peter Lucas
MyLocoSound
Click to expand...

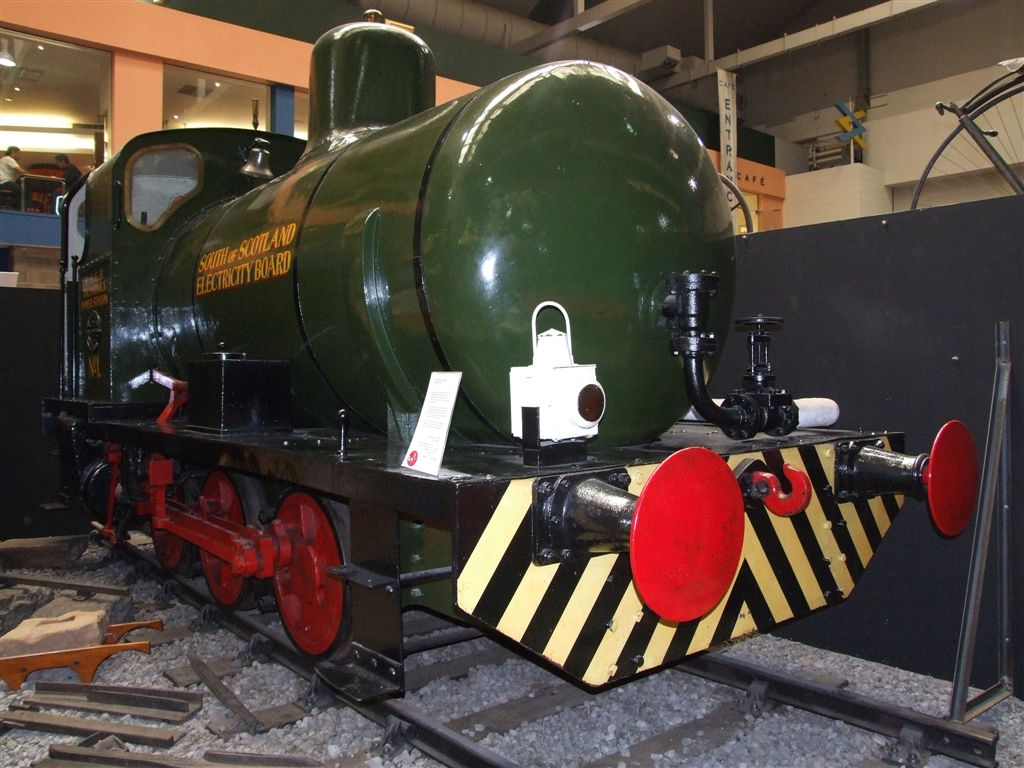

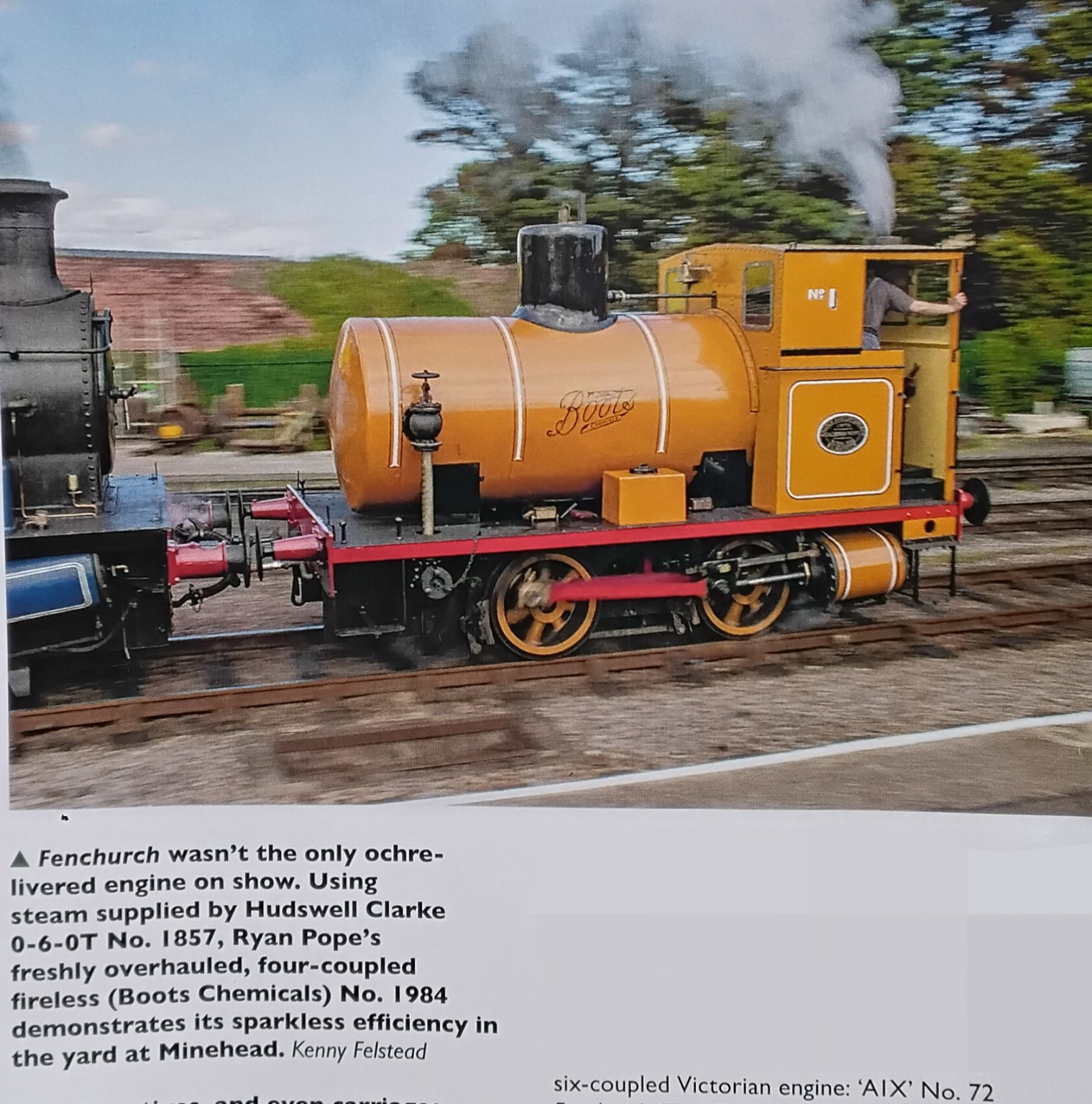

As stated earlier in this thread Compressed Air was quite popular in mines where a flame would be a problem. There is a working one at Statfold Barn. Never thought to ask how lubrication is done, but there must be a way. Statfold Barn - RAILSCOT
