The STM (Schenkeldijkse Tramweg Maatschappij)

I could easy make that whole corner in 3d, i only need propper measurements of your concrete, and to keep it simple without chairs and only with alu strip.
Templot is the program i use, with adding 3d print and some other features the learning curve for this program is gettin more difficult.

Chairs will take a bit longer for mash fixing, sorry

Hi Igor, Thanks for the help offered, much appreciated. But I don't have a 3D printer. I work at least 8 hours/day on a laptop so in my spare time I'd rather use some real tools :-D
Maybe in the future I might get one, but then I think a laser cutter is more to my liking for building coaches and such.

I figured out that the Thiel point mentioned solves my problem. The parameters are Radius: 765/1175mm (R2/R3).

Have to agree with you Henri re 3D printing, have been pondering for a long time but still hanging back. I also have an issue in that the CAD package I am familiar with has not gone down the 3D route as yet. Tools good but a lazer cutter sounds very good, must investigate.

www.thingiverse.com

chairs for stm 1.5 meter right hand turnout for stm by justmeigor

as the title for fdm printers
www.thingiverse.com www.thingiverse.com
or 2d print and cut wooden sleepers.

I am a wood worker, laser cutter do have some advantages, more precise, but also more time consuming.
I stick for myself with my jigs and real wood,
So from 2d paper print to product, it has something more for me.


Mihi necesse est optimus, in mea regione. :cool:

No need to be sorry btw, i had some fun


Attachments

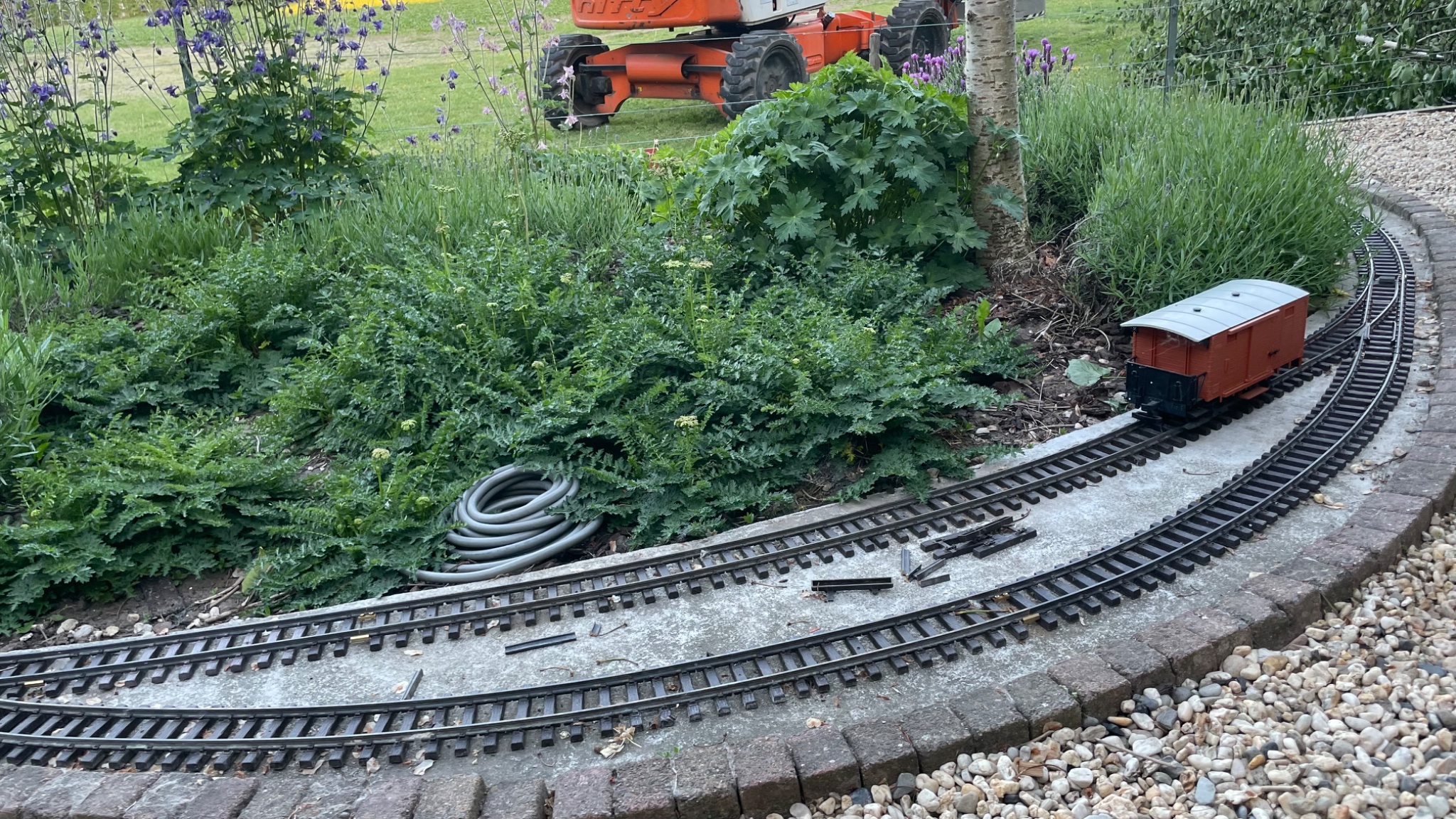

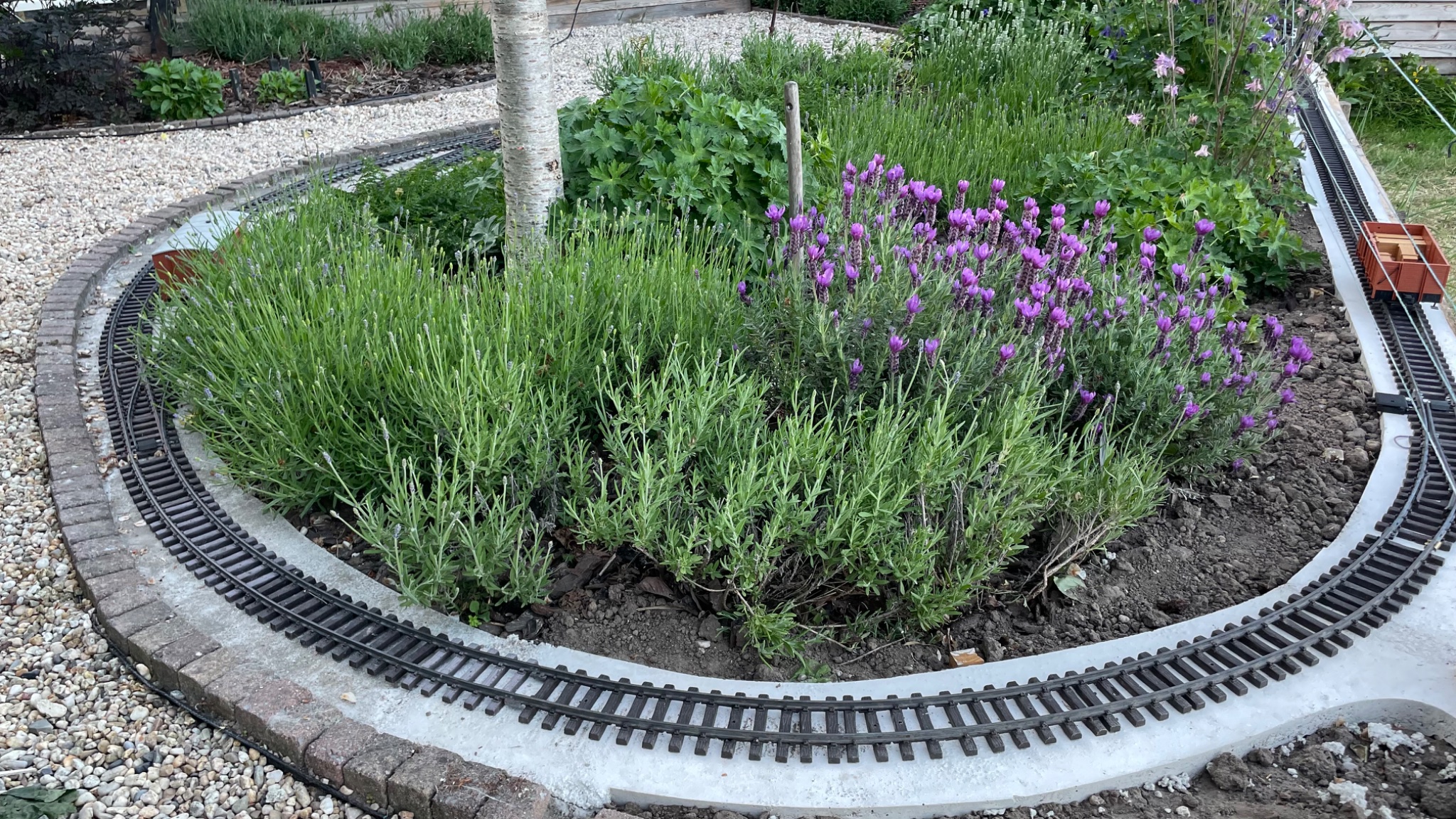

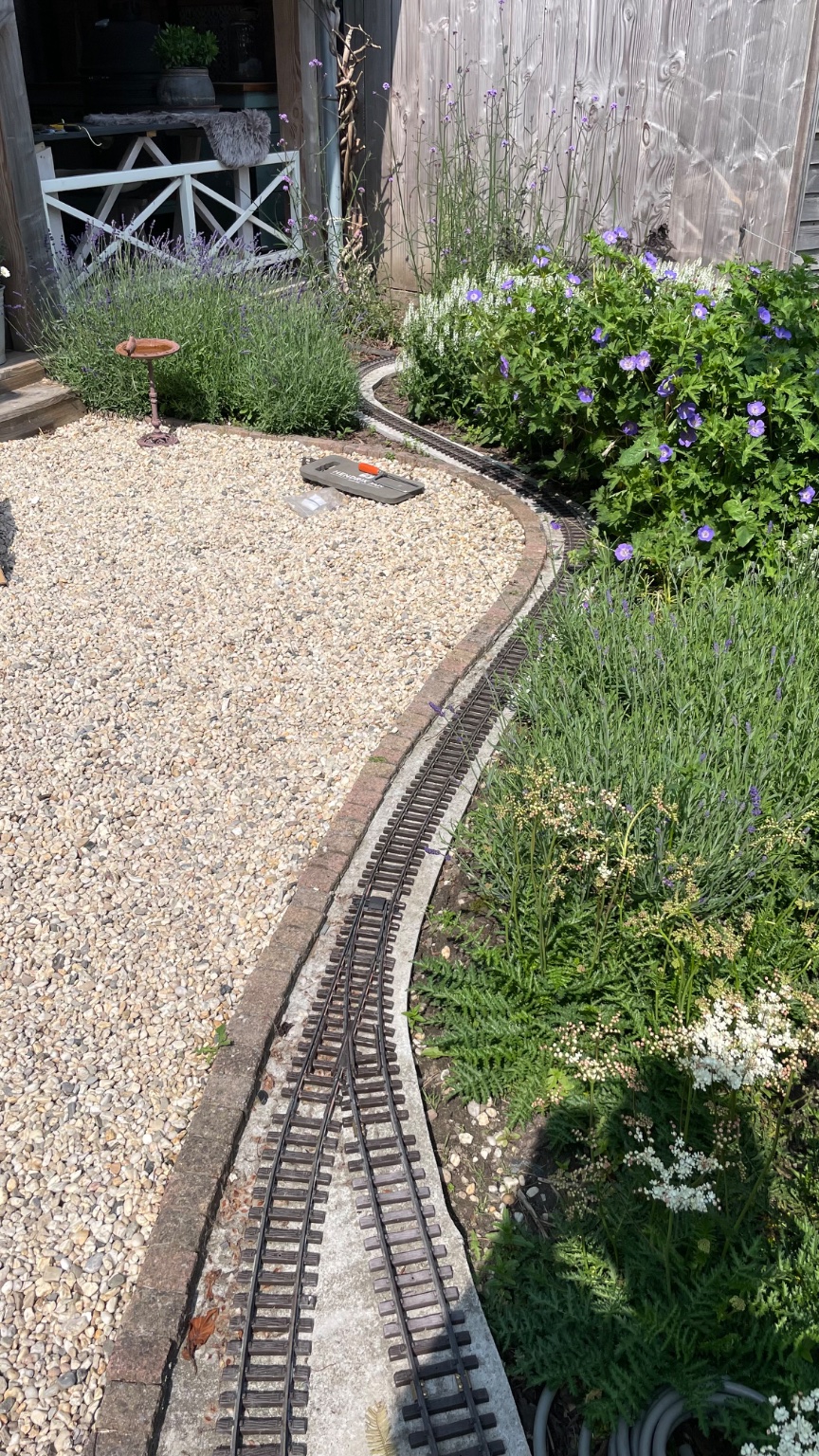

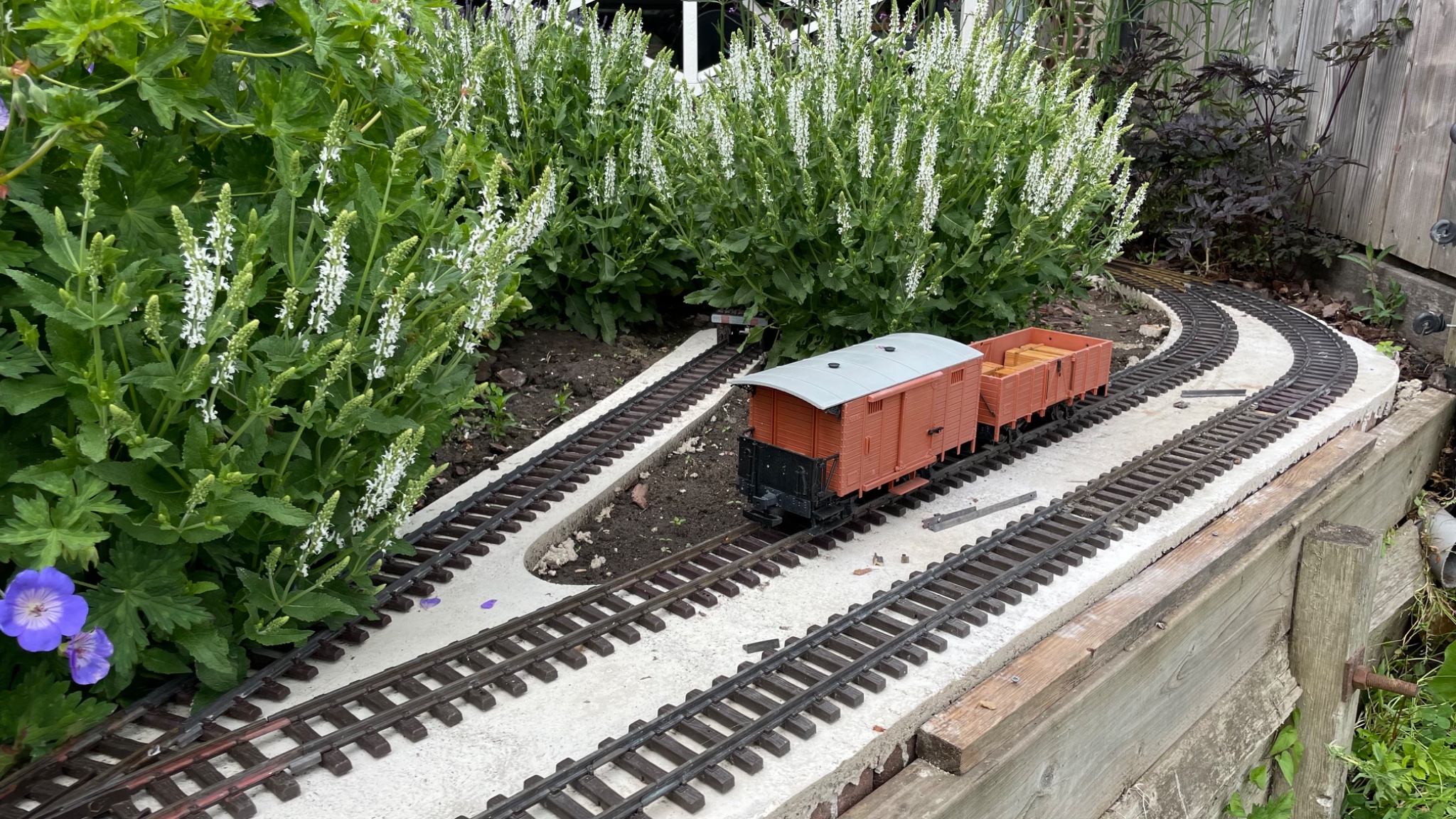

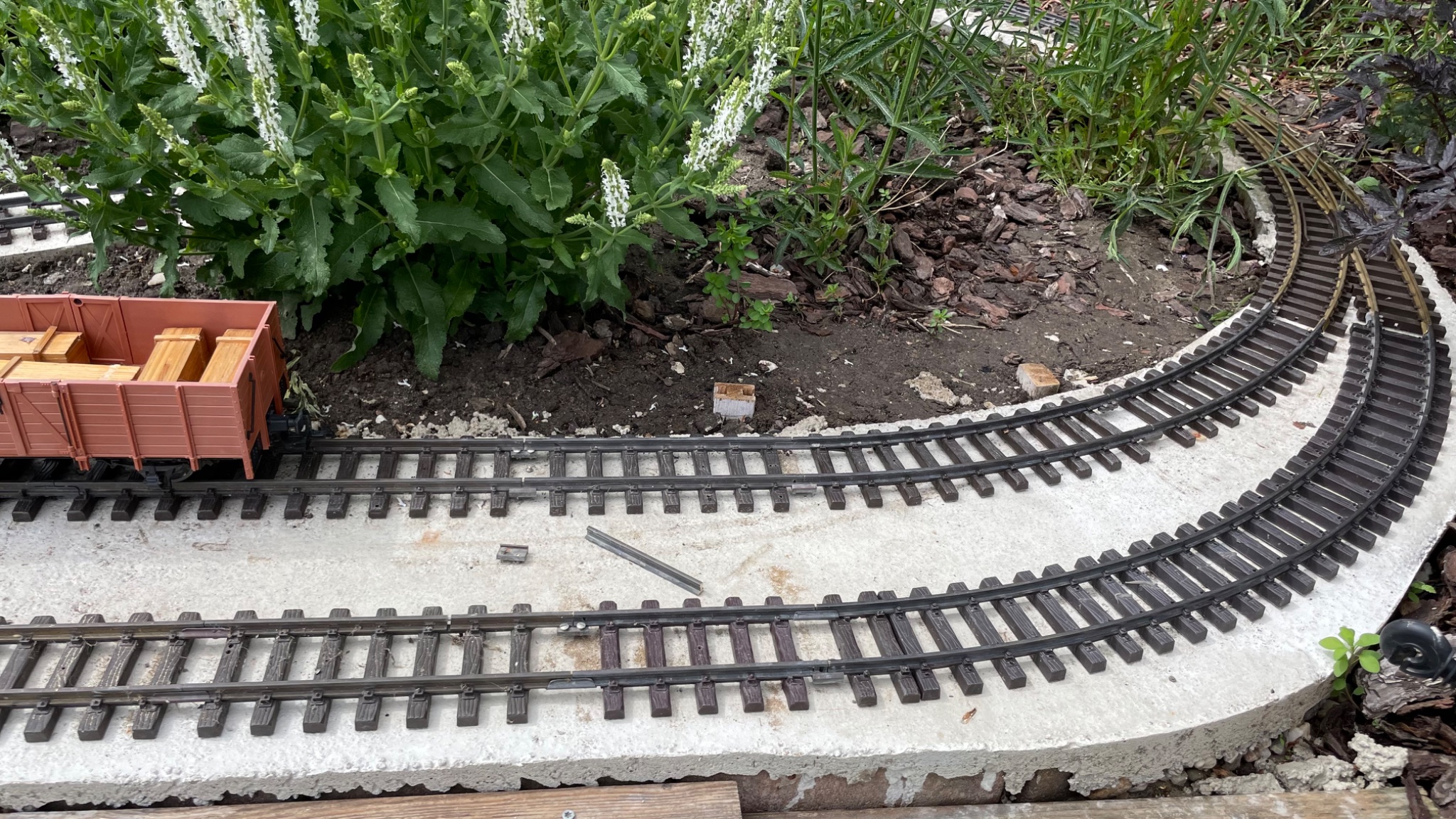

Piko’s curved point arrived and was installed today. All connected tracks were hand bent to get a smooth curve. The inner one is R2-ish and the outer one R3-ish. The test wagons run smoothly through them. The incoming curve needs some rearrangement concrete wise.
Just a few more meters and trains can run!

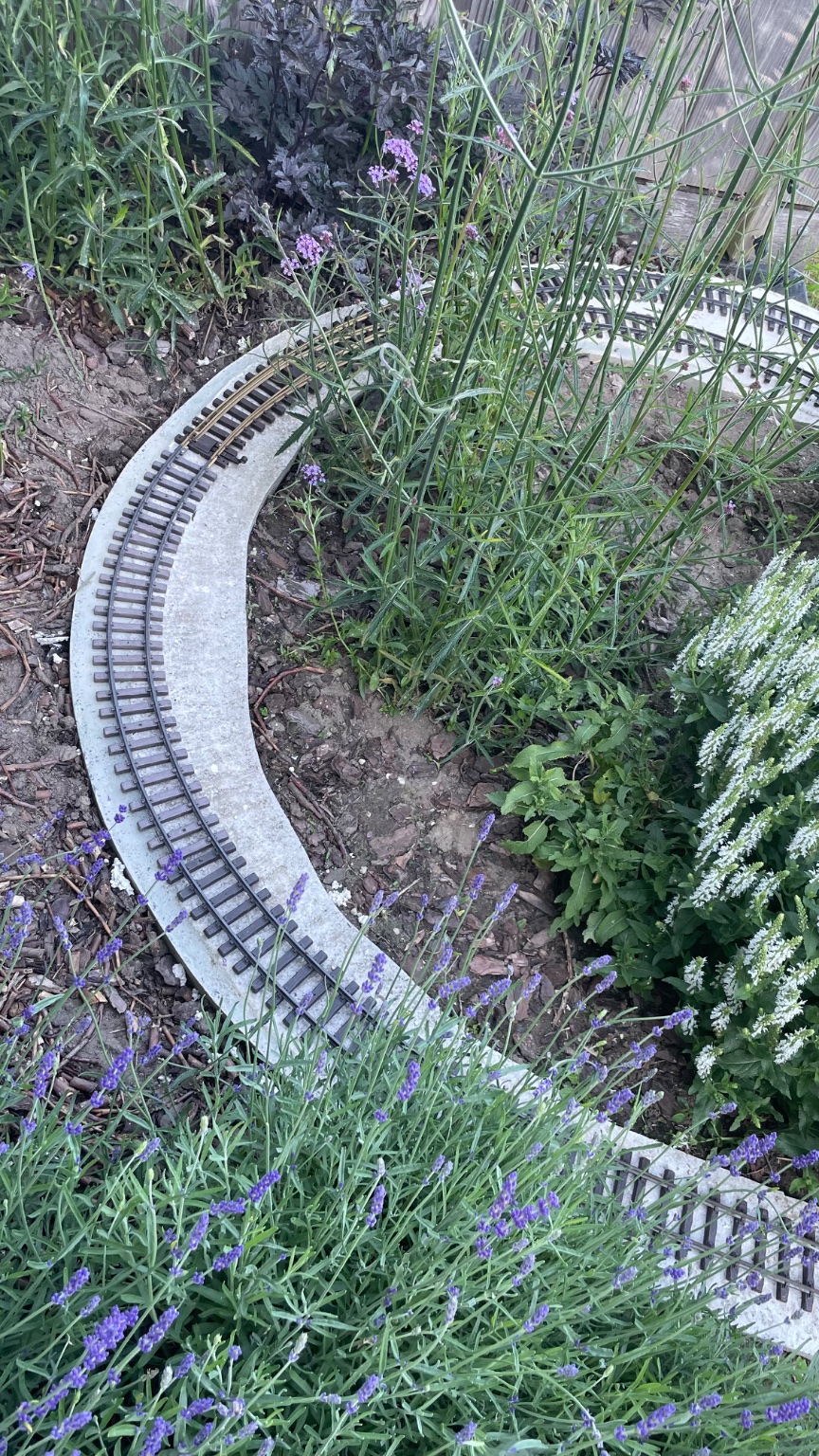

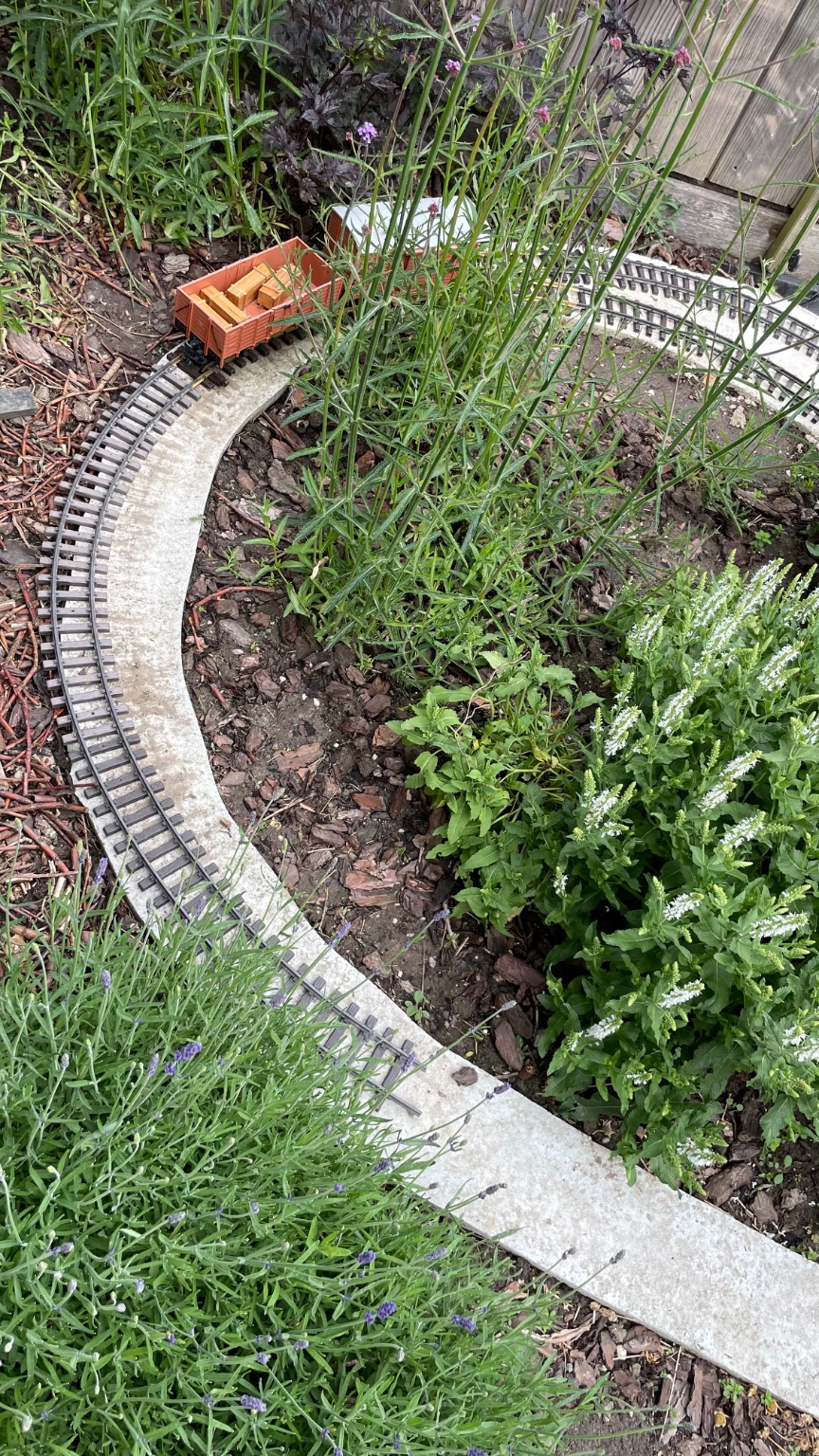

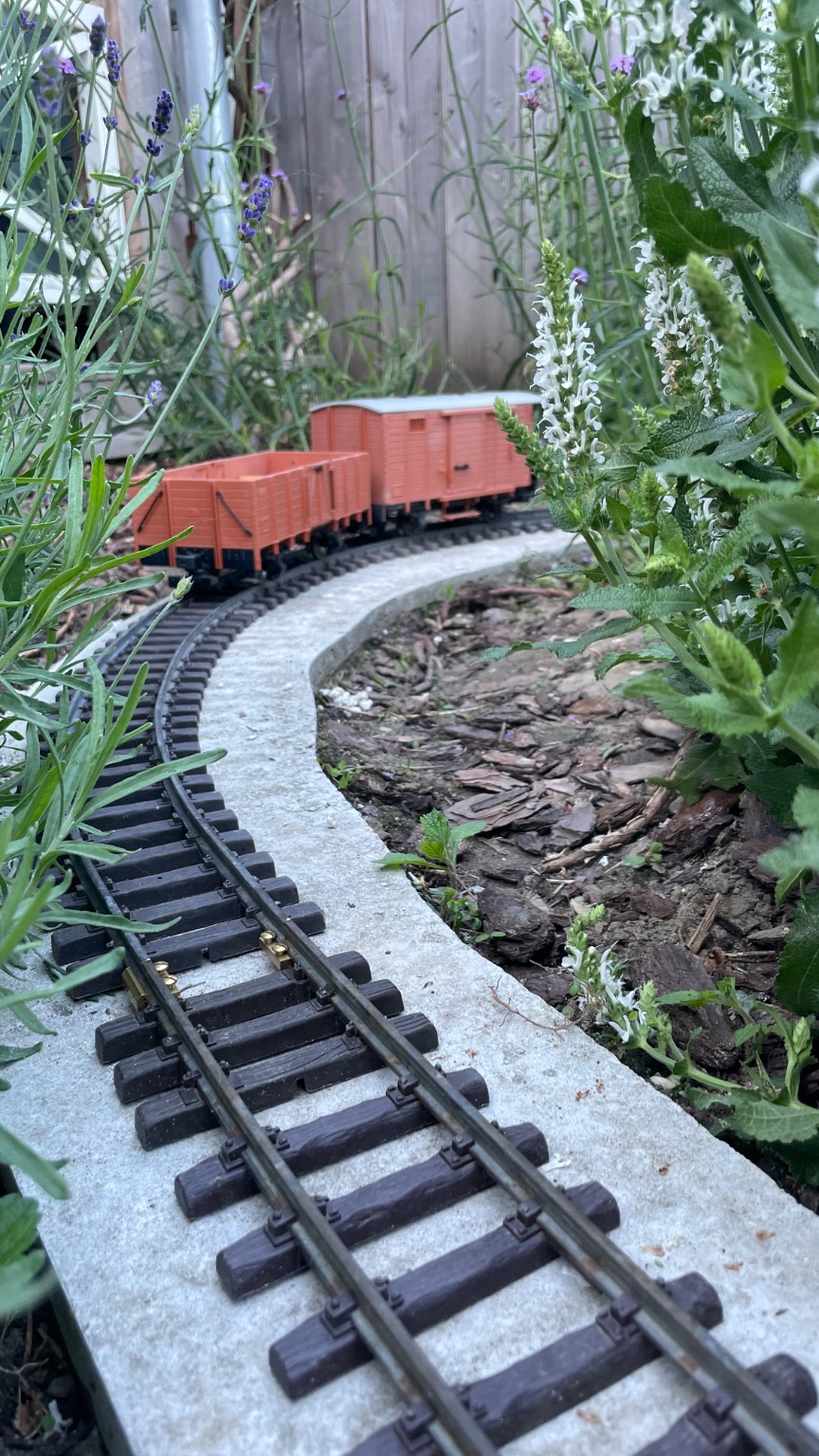

This incoming curve is also beteen R2 and R3 and I don’t want to make it sharper.

Henri said:

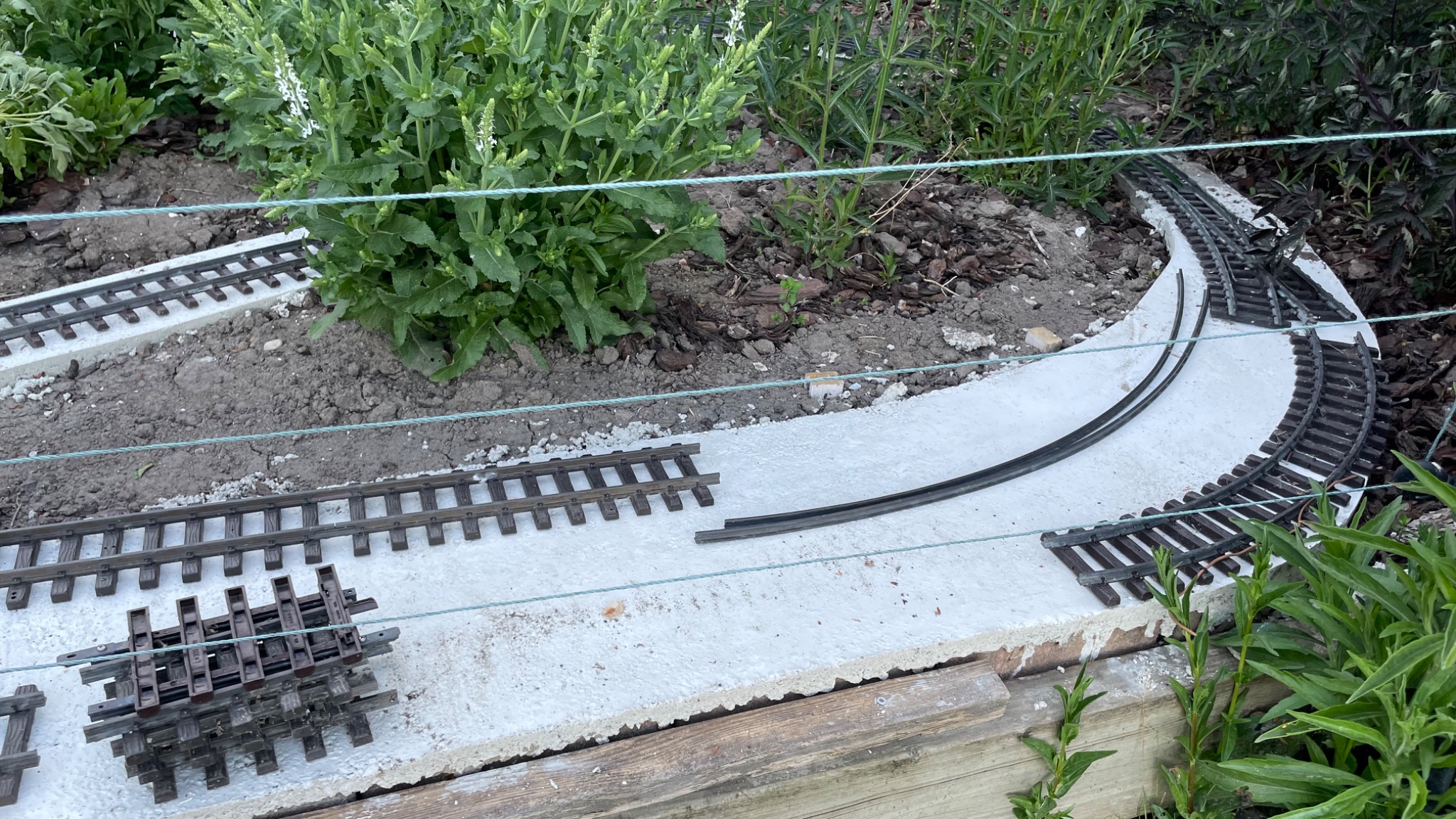

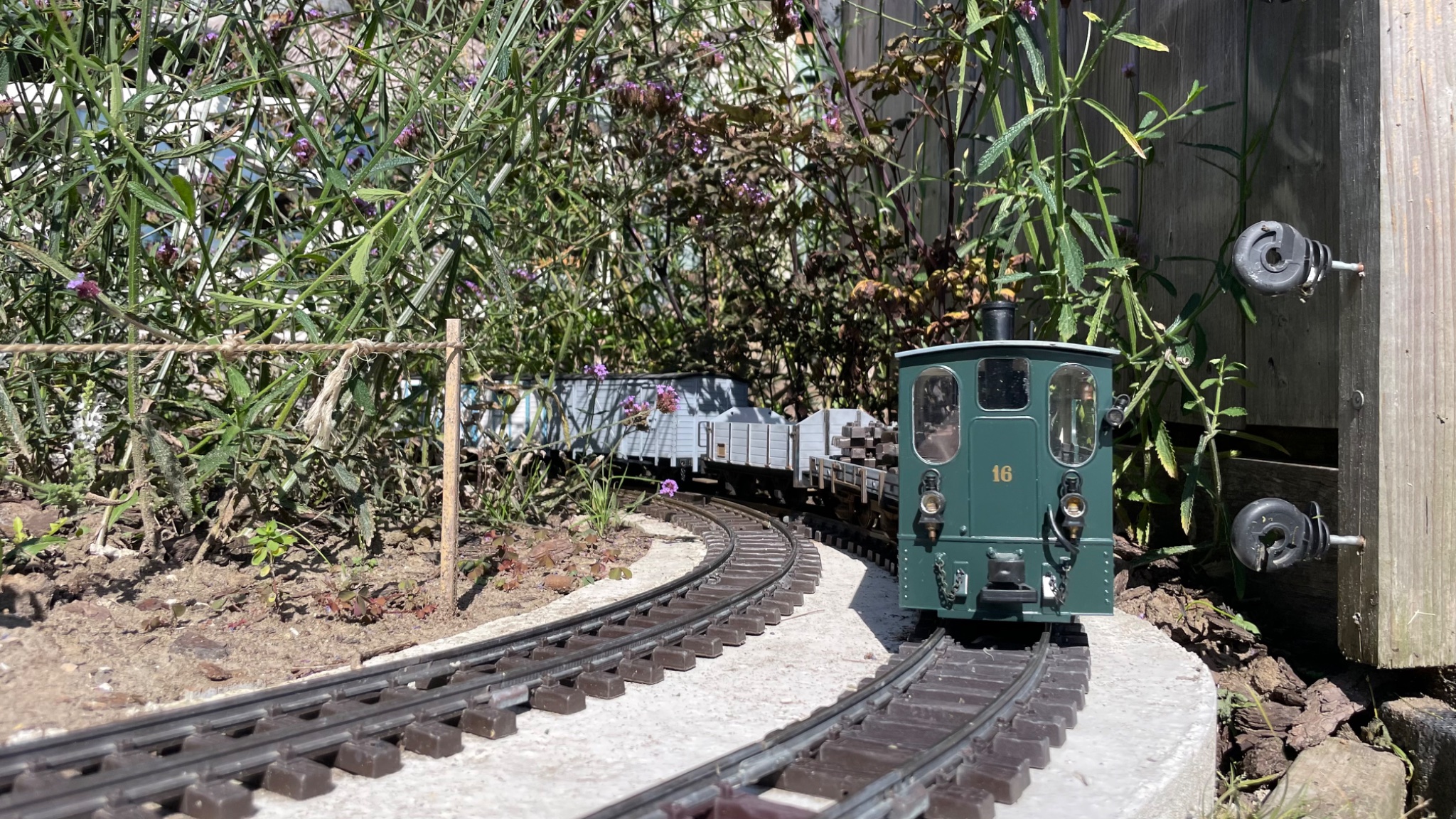

The wires arent some fancy overhead line system. They are to keep the cats inside the garden.
Click to expand...

They must be electrified then ?
