Hi there, all. I'm just opening the stout cardboard box containing the first of what hope will be at least three laser-cut models of Welsh NG prototypes from Sixteenmills.co.uk to run on my 45mm gauge track. David Mills, the proprietor and organiser of the whole shebang, it well-known in his locale of North Wales. The quality of his products is nothing less than excellent. He has recently teamed up with Tom Eivers, he of Endon Valley Decals [afternoon, Tom] and now includes his superb decals with his range of passenger coaches for certain lines.

To illustrate the measure of his skills with the laser cutter, here is an example of a model of the original, standard-gauge version, on which the NG version is based, in a raw, unpainted state, cut in what he describes as poor quality 1mm MDF, and to a scale of 5.5mm to the foot. This rather odd scale is based on the use of S Scale track...

Image used by kind permission of David V. Mills.

Back to the model in hand - here is a sneak preview of the components, as yet unseparated from their surrounding sprues - if that's the right word for them.


The finely detailed strapping is cunningly reproduced in heavy-duty card of a kind with which I am unfamiliar, but it's very 'scale-looking' dimensionally.


Anyhow, I'll be posting the build here if anybody is interested in looking in from time to time. I'll say no more except to give you fair warning that Grampian Models' styrene rivets and nuts/bolt/washers will be featuring strongly in the near future - not because they are necessary, but purely because I happen to like 'em. :)

Last edited:
  • Like
Reactions: 1 user

Paul M

Registered
25 Oct 2016
6,085
1,034
57
Royston
I'm looking forward to seeing your progress


Rhinochugger

Retired Oik
27 Oct 2009
29,244
3,508
North West Norfolk
GEM used 5.5mm : 1ft for their Ffestiniog model range, so that they could run on 12mm track - this was before n gauge was freely available :nod::nod::nod::nod:

The kits were white metal and included coaches, wagons (including a nice little skip wagon) Prince and a Fairlie.

In those days, the model railway bible was the W&H catalogue - W&H Models, 14 New Cavendish Street :):)

Sorry, a bit early for thread drift - must be the lockdown effect :mask:

  • Like
Reactions: 1 users

tac foley

Registered
11 Apr 2017
3,156
825
74
Near Huntingdon, UK
Thanks for that, Mr Chugger - I've often wondered why I've still got a white metal FR coach kit in that scale!!

Anyhow, we are getting on like a house afire here - Both ends are done, the 'box' with its doors is done, and a start has been made putting rivets on where there is no actual strapping -


It really is going together very well - in fact, I can't find anything to criticise. What I HAVE done, and I'm sure that Mr Mills won't mind, is to reinforce the cabin corners with 6mm square wood, just to give the adhesive something more to hold on to -


Here is the afore-mentioned item -

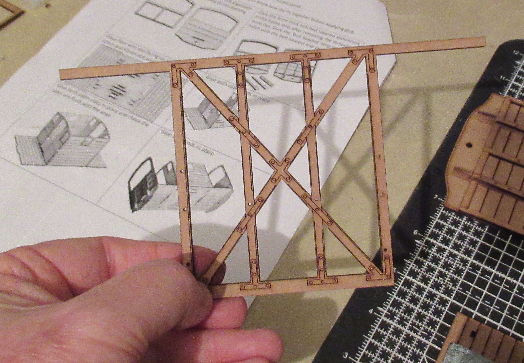

...and here is one of the side-brace units - it all interlocks very well - sign of a well-planned model...
