Evening all,

I've posted some of the progress I've been making with restoring my vintage Roundhouse Lady Anne over in the Daily Workbench thread, however in the last few weeks I think I've started to make enough progress to justify starting my own thread.

For a while, when I was quite young, I used to 'work' occasional Saturdays in the model railway shop where I spent a good amount of my pocket money. For many years up on a tall shelf stood a strangely modified Lady Anne (or Dylan). It was one of the earlier ones, with 4 wheels and a meths burner. It looked as if a previous owner had tried to make it into an approximation of a gauge 1 locomotive. It had a very low cab, and new cast brass buffer beams with twin sprung buffers and a chain coupling.

It looked very well used and very well made, but being a bit of oddity, out of proportion with everything else around it, she sat on the shelf for years. That was until several years ago, when I began my apprenticeship. A couple of months later, with a bit of money saved up from my starting bonus and my first paychecks, I asked how much the shop's owner would sell it to me for. With my 'staff discount' applied it turned out to be a very good price and I left with my first live steam loco.

Dylan (2).jpg

Once I had established in an old thread that no one knew what it was, I started to plan what to do with her. My basic, quick plan was to chop off the top of the cab and extend the chimney to make something akin to a open cabbed quarry loco. I quickly ran out of the necessary skills as the only thing holding the bunker on was where it attached to the rear of the water tanks. University came and went, I bought a house and started working on that and nothing really progressed on the loco. This year though I have been making a concentrated effort to finish off unfinished projects.


Paul M

Registered
25 Oct 2016
6,087
1,034
57
Royston
I do like the look of that model


musket the dog

Professional engineer, amateur modeler
31 Oct 2009
719
106
Leicester
nlrr.webs.com

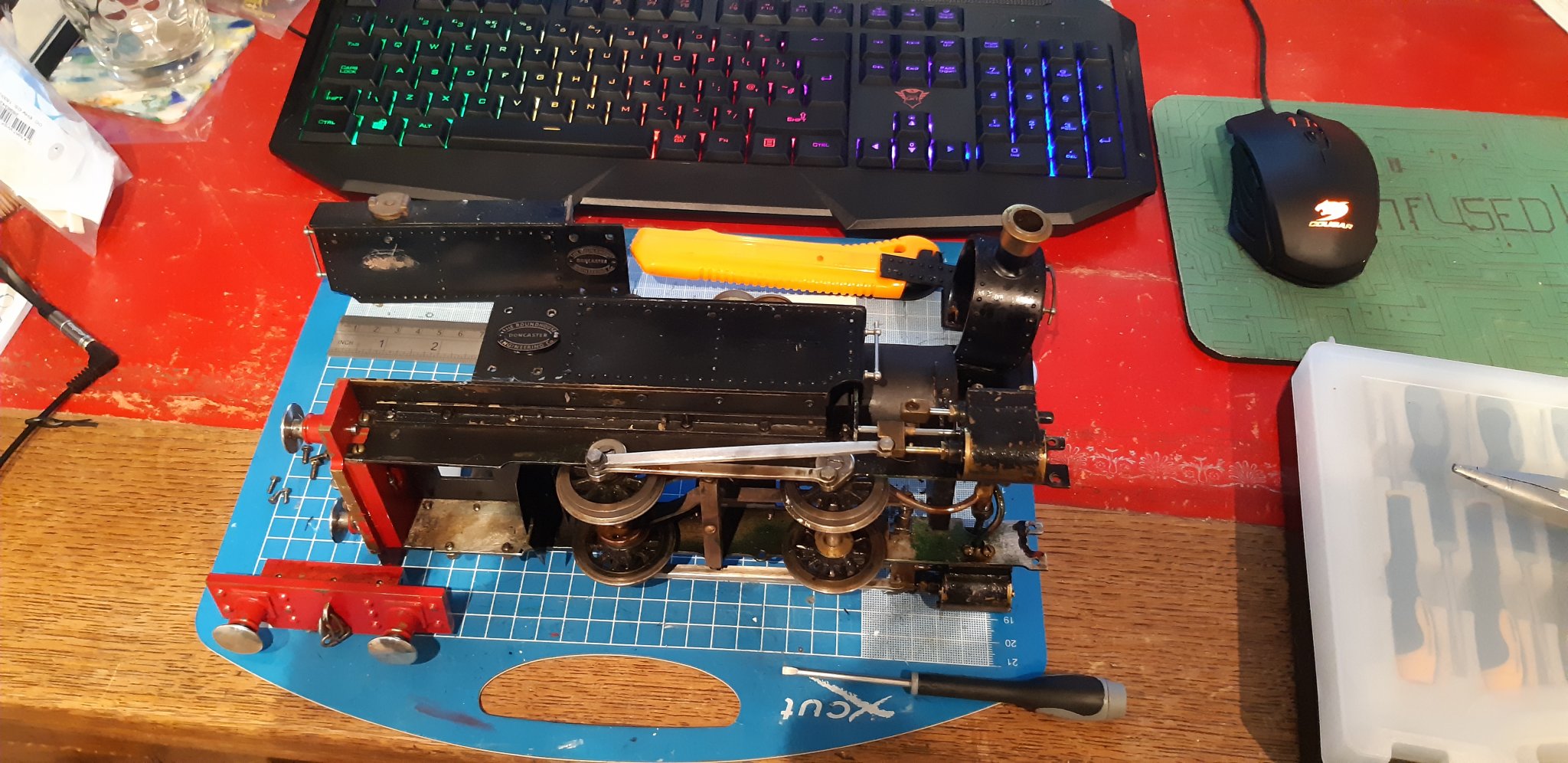

When I first started one of the jobs I had pondered on the most was what to do about the buffers. I had worried that I would need a milling machine to take off the cast buffer cases. Once I had got my head around how to dismantle the loco, I removed the first beam and took it into my workshop while we were quiet during the lockdown. In the end I was able to cut the largest chunks off using a hacksaw and then file off the rivets and the buffer bases. The hooks, buffer heads and springs have been saved for the useful parts box.

200324 (3).jpg

200324 (4).jpg

The front end would possibly be the most complex as I would need to figure out a way of extending the funnel. Each rivet on the foot plate and the tanks is a brass pin, drilled and soldered in place.

200324 (5).jpg

While the buffer beam was away I made some efforts to improve the running of the loco. I had run it on blocks before, but it had always been lumpy and stuck frequently on a low regulator. There were several loose fixings in the valve gear that needed to be tightened and secured. Additionally the centre frame spacer was in the wrong location and pushed the burner tube down, causing the front wick to flood. The meths tank sat too low and was very close to the railhead. To fix this, frame bolts had to be shortened where the excess protruded through. There was an additional support on the back of the tank that had to be shortened. Following the changes, the loco ran smoothly at all speeds on the blocks.

200325 (4).jpg


musket the dog

Professional engineer, amateur modeler
31 Oct 2009
719
106
Leicester
nlrr.webs.com
The front buffer beam was returned and the rear was treated in the same way. The dome is held on by the boiler strap which is tensioned town against the centre frame spacer. Moving the spacer meant that the dome and strap have moved forward on the boiler a bit. The o-ring under the safety valve was replaced and the drain plug on the back of the boiler was freed off, so the water level in the boiler could be judged correctly. The oil reservoir was removed, cleaned of gunk and scale and replaced, with new o-rings for the filler and drain. Whilst doing my welding training at work I made up a temporary bunker for the loco while I figure out how to reattach the original.

200329 (1).jpg

200329 (2).jpg



Attachments

  • 200330 (2).jpg
    200330 (2).jpg
    229.5 KB · Views: 0
  • Like
Reactions: 1 user

musket the dog

Professional engineer, amateur modeler
31 Oct 2009
719
106
Leicester
nlrr.webs.com
With the loco back in one piece, Casey Jones of the CFR kindly allowed me to bring the engine over for a test run. It wasn't completely unsuccessful, but the loco struggled to manage more than a couple laps of a time with a train attached.

201010 (1).jpg

It raised steam fine, but once the regulator was opened, it just couldn't keep up. When it stopped, it just wasn't regaining pressure. When it was stationary there still appeared to be quite a noticeable volume of steam coming through the funnel. This lead me to believe that it must be escaping past the pistons. It wouldn't cause an issue with the regulator closed, but it would never make as much power as it should and it wouldn't be able to build up steam when stationary. Therefore it was decided to risk screwing up the timing, and take the cylinders apart for inspection.

201112 (4).jpg

This revealed that the piston rings were life expired. Most of the gaskets were shot and some were missing altogether. Otherwise, the mechanicals and valve gear were in very good condition. One at a time (so I can remember how to put it back together) the cylinders were disassembled and given a 24hr soak in dettol to strip the paint.

201112 (5).jpg

201116 (1).jpg

I'm not sure if it is better to rebuild the cylinders and then paint them all in one piece, or paint all the parts separately and then reassemble them. I can't get ahold of a rebuild kit at the moment, so it's a quandary for another day.

  • Like
Reactions: 1 user

musket the dog

Professional engineer, amateur modeler
31 Oct 2009
719
106
Leicester
nlrr.webs.com
I wanted to add some stiffness back to the tanks as removing the cab meant there was to cross bracing to support them. Two M2 holes were drilled and tapped into the top of the tanks. A suitable strip of aluminium was cut to length and bent to the shape of the boiler using the outside of a 42mm hex socket. Matching holes were drilled and the braced secured into position.

201112 (1).jpg

201112 (2).jpg

201112 (3).jpg

  • Like
Reactions: 1 user

musket the dog

Professional engineer, amateur modeler
31 Oct 2009
719
106
Leicester
nlrr.webs.com

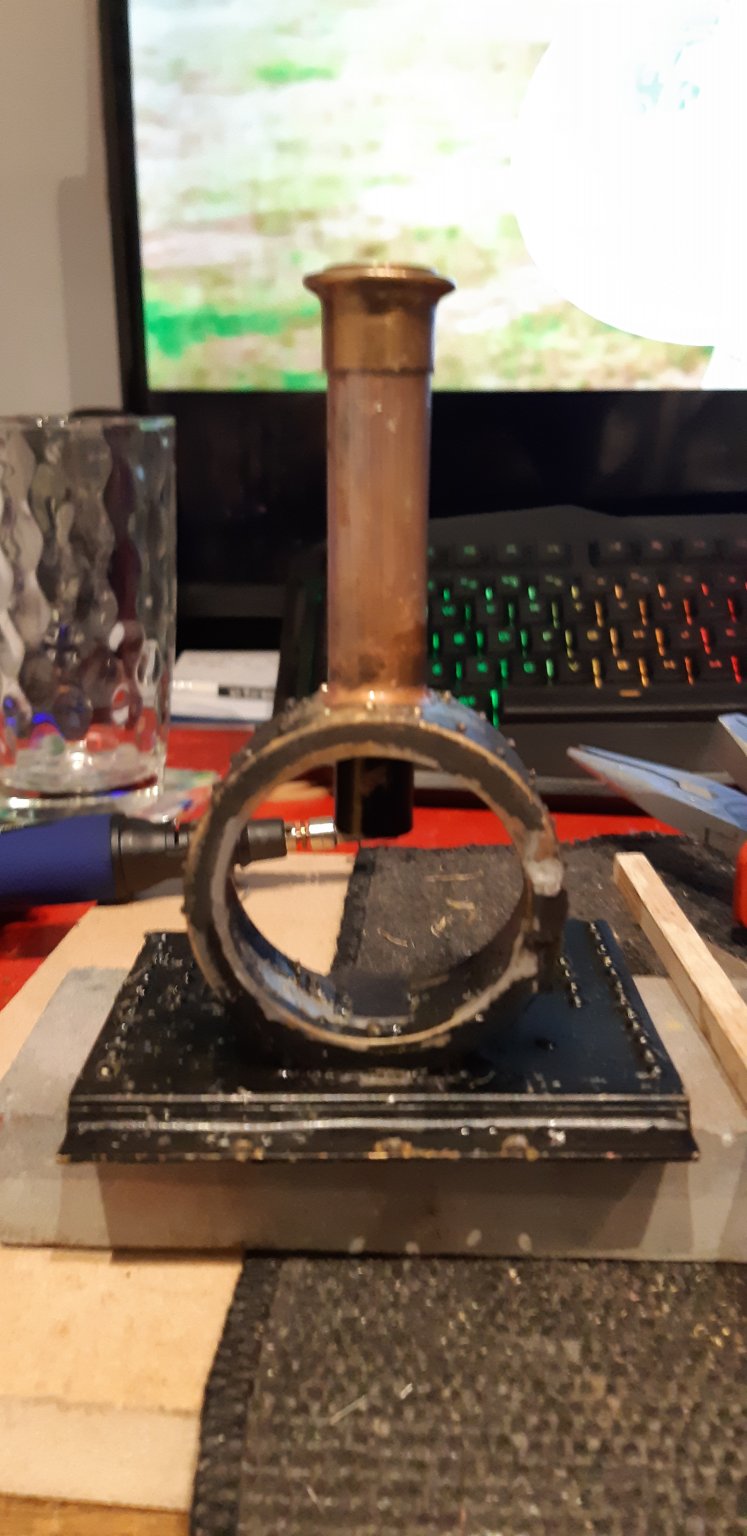

Finally for tonight, I've been attacking the front end. The oxy-acetylene was wafted over the smokebox which separated it into its individual parts, including the smokebox door, which at one point was hinged. I will try to restore this as it will make accessing the wickes for lighting a lot easier. A piece of 15mm copper pipe was sourced for the extension.
