I would like information on the construction of a single track lifting bridge. I.E. Hinge design and fittings please.

Firemangrumpy

Firemangrumpy

Registered
13 May 2018
92
1
52
Sunderland
I need to build a bridge too across footpath and at present have simple lift out section. My ideas about a hinge have been either a large gate hinge laid flat so that the smaller part is on theixed end and the large part on the bridge underside.
Or make my own hinge using a metal tube and rods inserted at each end. Another idea I just thought of is maybe using those that you find on the side of folding wallpaper paste tables?

Rhinochugger

Rhinochugger

Retired Oik (IBT)
27 Oct 2009
26,138
879
North West Norfolk
I've never tried it, but I would be tempted to have the hinge pivots 1" or 2" above rail height - this would allow the rails to come together, with perhaps some sort of widened fishplate arrangement.

So the actual hinges could be fairly crude pivots on arms, or traditional hinges on blocks.

However, from what I remember of your railway, you'd want to be able to disguise them pretty neatly :nerd::nerd:

  • Like
Reactions: Firemangrumpy
PhilP

PhilP

G Scale, 7/8th's, Electronics
5 Jun 2013
24,402
841
Tamworth, Staffs.
Look for 'Parliament Hinges'..

You need the pivot 'on-top' or above the track, really.. :nerd:

JimmyB

JimmyB

Semi-Retired; more time for trains.
23 Feb 2018
2,290
412
65
Weston-super-Mare
As mentioned, if you are going to lift your bridge, the fulcrum point needs to be at the highest point, if the highest point is just the tracks, then parliament hinges should be fine, however a lot of smaller scales that have hinged sections often have block well above track level with the hinge there, so as you open the hinge the two surfaces at the hinge side move (initially) horizontally away from each other.

Tanker man

Tanker man

G scale and 5 inch ride on
10 Jun 2015
312
65
Oxford
Hinges from a cheep wooden pasting table are also good, called 'ladder hinges' , I believe. I have been using them for over 10 years with hardly any need to adjust the gap, I, also cut the rail at an angle of 45* in the direction of the train which helps to line up the track and avoid that nasty 'bump' as the wheels hit the out of line track.
I will look out some pics later.
Dave

Rhinochugger

Rhinochugger

Retired Oik (IBT)
27 Oct 2009
26,138
879
North West Norfolk
Parliament hinges will work with a base board - I was imagining for G scale that maybe the bridge might be the bare metalwork - If G-gnome can give us a bit more of a clue, we can get our collective heads together >:)>:)

granddad gnome

granddad gnome

Registered
Thanks chaps. This is the gap I want to bridge and from what you all say I think this may be what I need to do. Thanks Guy's
no 2 _1.jpg


David1226

David1226

Registered
24 Oct 2009
3,983
2,381
69
Abingdon, Oxfordshire
As we have entered the 'flat' period of post-Christmas/New Year festivities, this thread is giving us a real lift.

David

  • Like
Reactions: Paul M
Rhinochugger

Rhinochugger

Retired Oik (IBT)
27 Oct 2009
26,138
879
North West Norfolk
Really, I think you ought to do something like this >:)>:)>:)>:)


  • Like
Reactions: Paul M
granddad gnome

granddad gnome

Registered
Rhinochugger

Rhinochugger

Retired Oik (IBT)
27 Oct 2009
26,138
879
North West Norfolk
Thanks chaps. This is the gap I want to bridge and from what you all say I think this may be what I need to do. Thanks Guy's
no 2 _1.jpg



Rhinochugger

Rhinochugger

Retired Oik (IBT)
27 Oct 2009
26,138
879
North West Norfolk

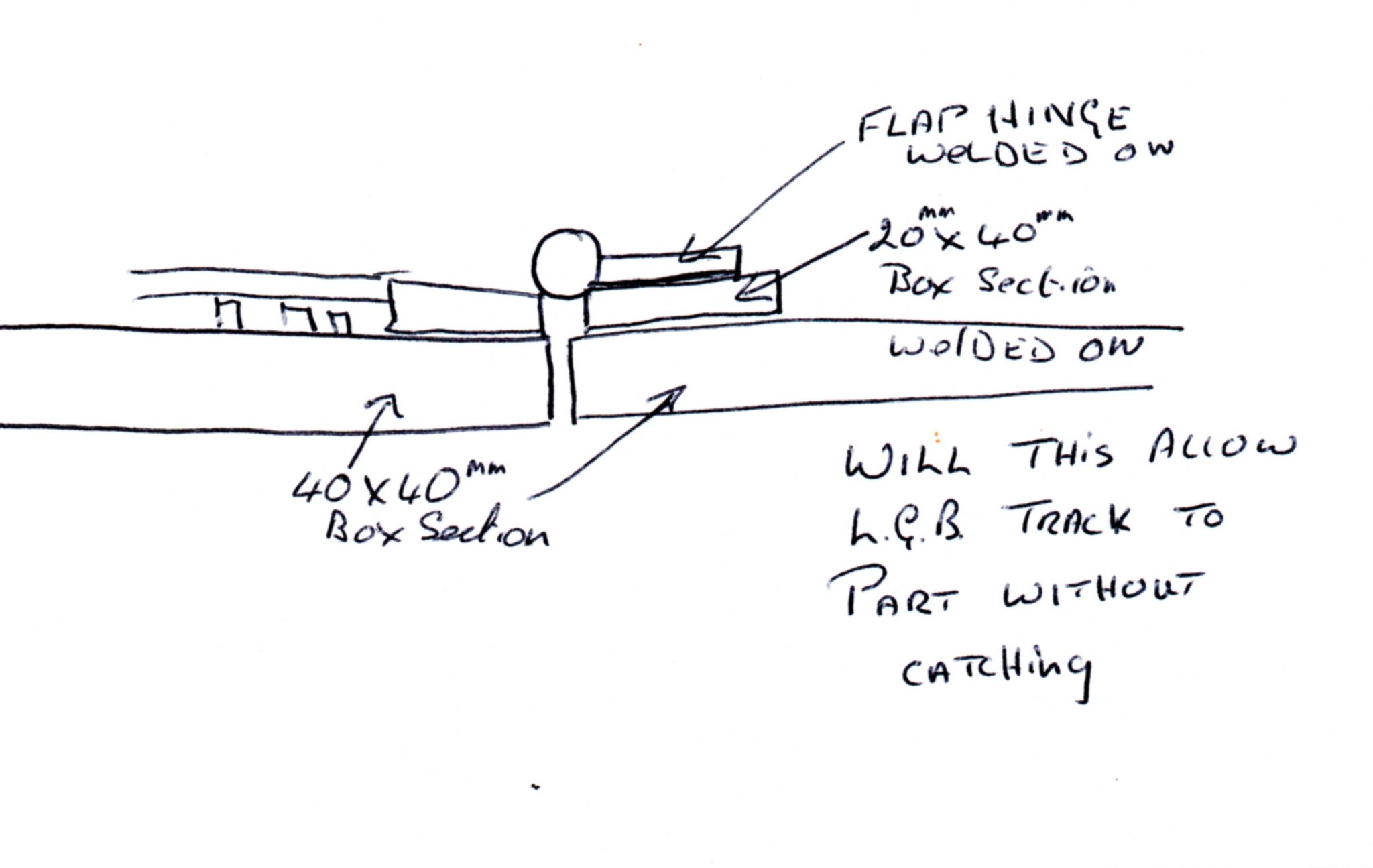

Thanks chaps. This is the gap I want to bridge and from what you all say I think this may be what I need to do. Thanks Guy's View attachment 260480
View attachment 260481
I'd be tempted to try and mount the hinges a bit higher.

I'm assuming that you're planning to run a separate power feed to the bridge track - that way, all you have to worry about is the rail alignment :think::think:

PhilP

PhilP

G Scale, 7/8th's, Electronics
5 Jun 2013
24,402
841
Tamworth, Staffs.
You also need to arrange for the power to be cut, a good-distance either side of the bridge, when it is open..

Think a loco pushing your longest train towards the abyss! :eek::sweating:

P

Paul M

Registered
25 Oct 2016
3,763
425
56
Royston
You also need to arrange for the power to be cut, a good-distance either side of the bridge, when it is open..

Think a loco pushing your longest train towards the abyss! :eek::sweating:
Or some spring loaded barrier type affair which automatically raises when the bridge is lifted

granddad gnome

granddad gnome

Registered
I'd be tempted to try and mount the hinges a bit higher.

I'm assuming that you're planning to run a separate power feed to the bridge track - that way, all you have to worry about is the rail alignment :think:
Yes I am hoping to have a failsafe system with micro switches to safe guard the line when track is lifted I like tankermans method so I think I will work towards that

Tanker man

Tanker man

G scale and 5 inch ride on
10 Jun 2015
312
65
Oxford

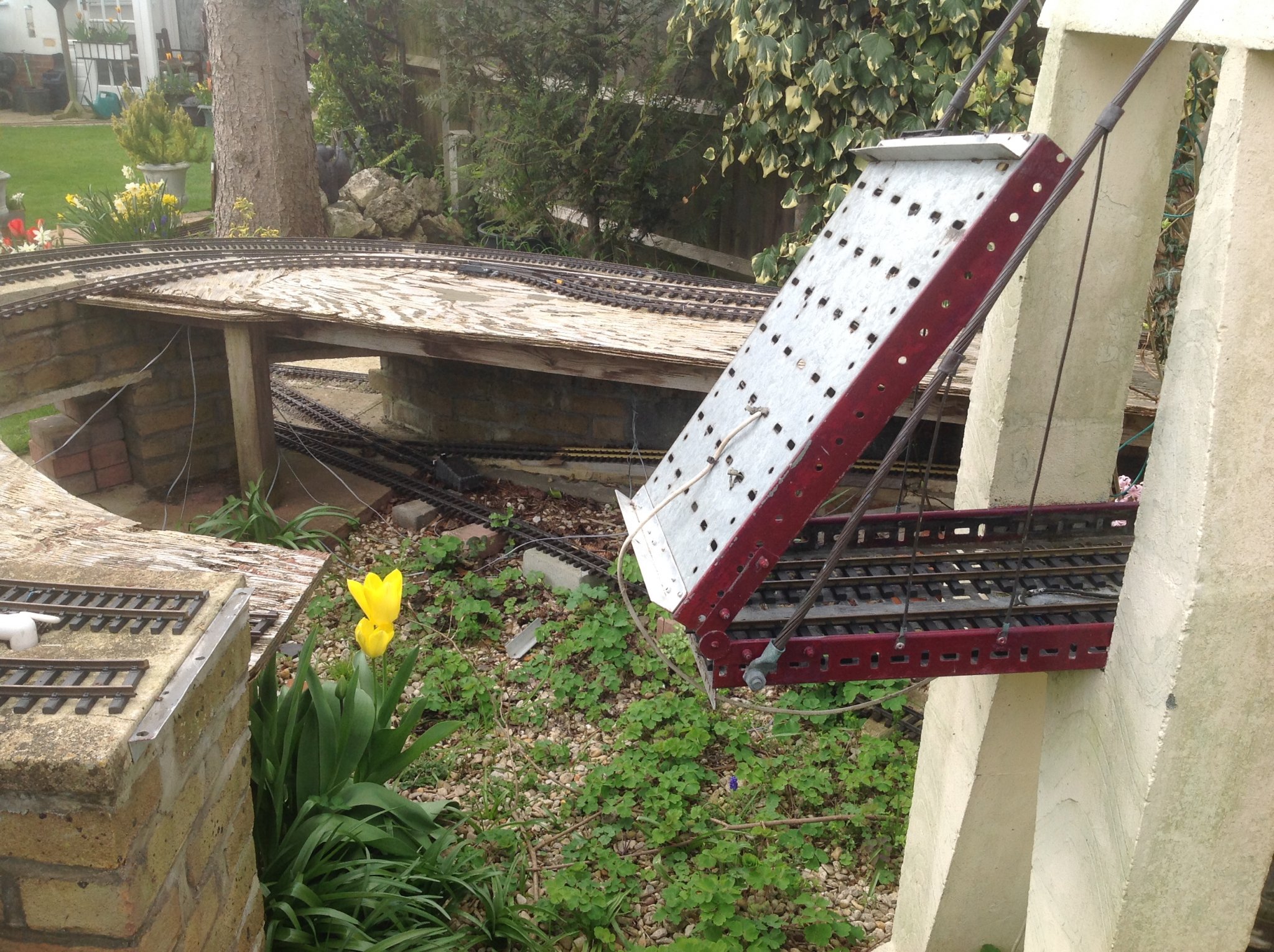

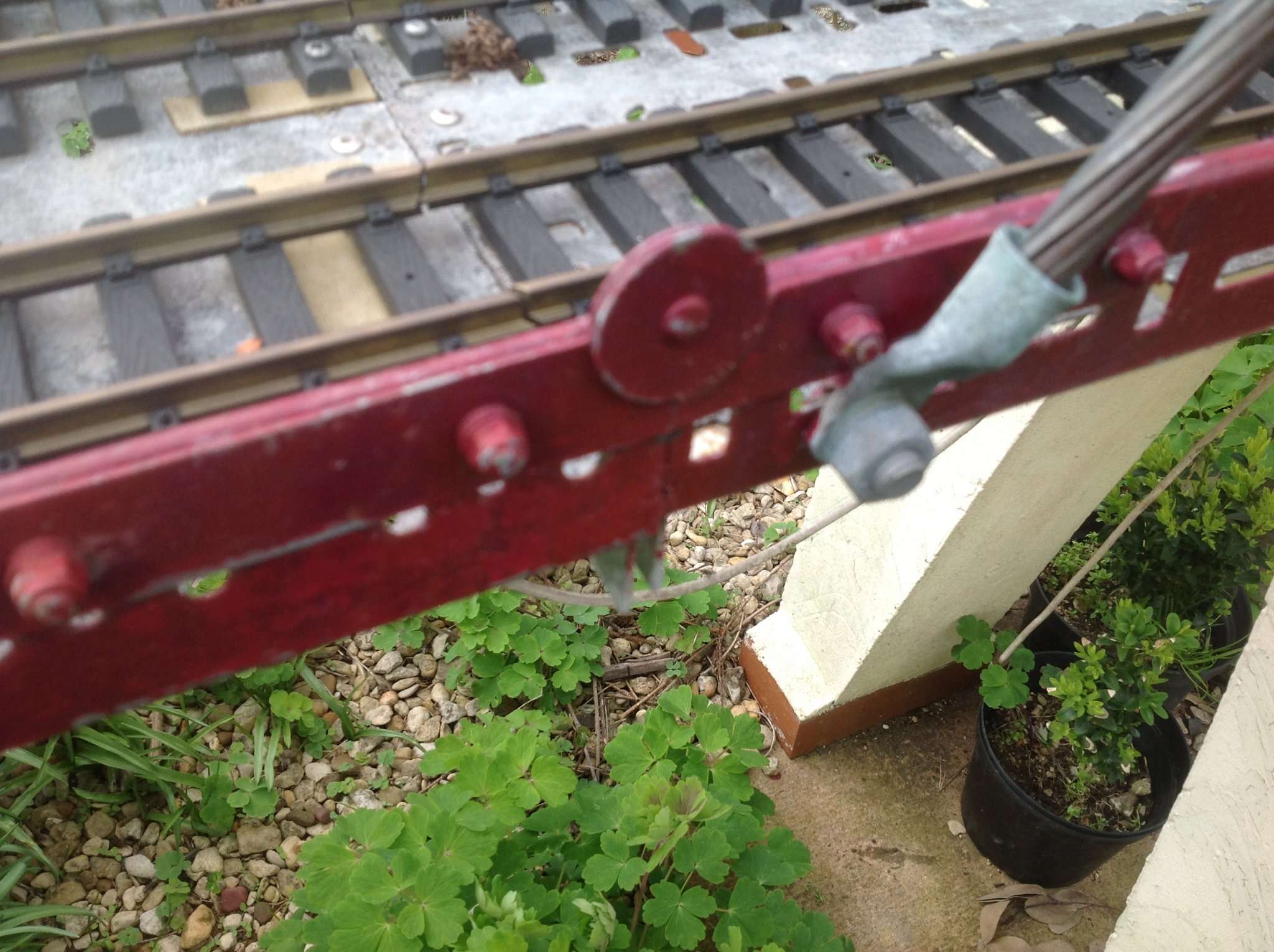

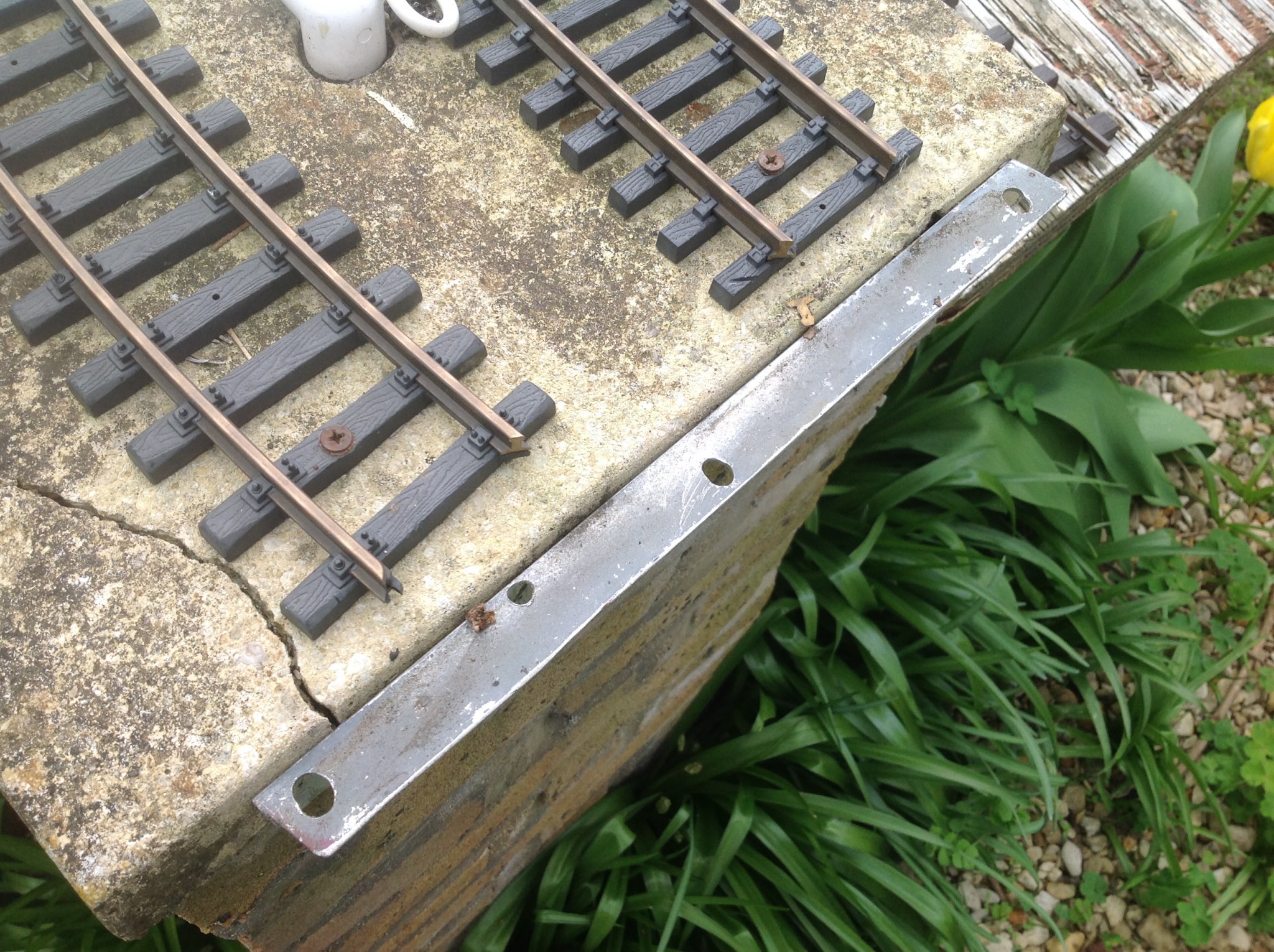

Ok have re posted pictures on post 8
Sorry about that
