Heavy Load Center Depressed Car

Steen Rudberg

Registered
5 Apr 2016
26
15
57
Helsingør
www.5inch.dk
Country flag
Hi

As mentioned in " What have you been printing. " I have been working on a car, inspired by LGB 4058.
I have used Piko arch bar trucks.
Pivot assemblies are done with 6M nuts & bolts

002 (2).JPG

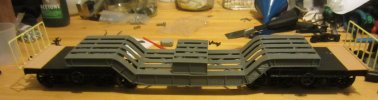

This is the proto type, & some changes are to be made.
Sectioning of the bed, will be changed so that the "S" will end at a 90 deg angle. Also the mechanical connection will be changed to 3 x 3M screws.


New revision (Rev3).
Skærmbillede 2021-01-10 20.30.43.png
New sections

Skærmbillede 2021-01-10 20.26.14.png Skærmbillede 2021-01-10 20.26.22.png
Car part with small mods.

Skærmbillede 2021-01-10 20.14.16.png
Full model

All stl files are attached ( I have not have had time for printing this revision )


Attachments

  • Skærmbillede 2021-01-10 20.01.24.png
    Skærmbillede 2021-01-10 20.01.24.png
    213.8 KB · Views: 0
Last edited:
  • Love
  • Like
Reactions: 1 users

John Fedak

Registered
2 Dec 2019
10
1
55
Ottawa Ontario
Country flag
Hello Steen,
That looks great!
Can you also post the stl for the car part?
Thanks
John

  • Like
Reactions: 1 user

Steen Rudberg

Registered
5 Apr 2016
26
15
57
Helsingør
www.5inch.dk
Country flag
Hi John

I got it - What a fool I'm. Now it should be OK.


Benco

Registered
22 May 2020
55
6
70
UK
Country flag
Are you going to tell him there is less now?
We should give Steen a rest and then tell him the end, and the car modifications, have disappeared and that there is still no car.
:) Ben


Paul M

Registered
25 Oct 2016
7,238
1,140
58
Royston
Country flag
We should give Steen a rest and then tell him the end, and the car modifications, have disappeared and that there is still no car.
:) Ben
Now that would be depressing


Steen Rudberg

Registered
5 Apr 2016
26
15
57
Helsingør
www.5inch.dk
Country flag
Depressing is when I up-load files and see that they are up-loaded and then the day after they are gone...... That is depressing.


Benco

Registered
22 May 2020
55
6
70
UK
Country flag
We should give Steen a rest and then tell him the end, and the car modifications, have disappeared and that there is still no car.
:) Ben
Congratulations Steen, everything is present and correct.
PhilP, the resident depressed centre car therapist can stand down
Thanks again.
Ben

Last edited:

Steen Rudberg

Registered
5 Apr 2016
26
15
57
Helsingør
www.5inch.dk
Country flag
Yes the cart is there. Thank You for sharing. What are the part 4 and part 5 IPT files for?
Part 4 / 5 are the parts that the footstep are made from.


Steen Rudberg

Registered
5 Apr 2016
26
15
57
Helsingør
www.5inch.dk
Country flag
I have updated the the bay, to remove some of the sharp edges. Also the tow center parts cam be mounted with a weight 60x100x10mm (L x W x H) with possibility to screw it on with M3 screws. holes are distanced 35x44mm (L x W).

Also the frame have had some holes to mount 2 weight bars 80 x 20* x 5 with a pair of holes 43,35 mm a part.
* can be up to 35mm.

Last edited:

justme igor

Registered
17 Apr 2020
317
33
Netherlands Westwoud
Country
Netherlands
Country flag
Don't get me wrong, please don't.....i like it very much
Do you have a picture of a prototypical thing?
One thing keeps on annoying me: the support sections in your steel frame.
Somehow this is off for my gut feeling
But what a job you did!:h:


Steen Rudberg

Registered
5 Apr 2016
26
15
57
Helsingør
www.5inch.dk
Country flag
The LGB 4058 is what I have used as idea for this construction
LGB_4058_Heavy_Duty_8_Axle_Depressed_Center_Frame_Car_w_Transformer_Load_lf-ft-low_1280[1].jpg
