This thread. (Pun intended.) is a cry for help about ridiculously small metric nuts and threads.
Basically, I'm wanting to put a thread on the ends of 2 mm brass rod. However I'm not sure which metric thread would be suitable.
I've tried searching for a chart showing external thread size in relation to the size of the rod to be threaded, to no avail.
I'm sure someone must have such a chart or know what size die I need to do this.
Cheers,
Paul.


Attachments

korm kormsen

korm kormsen

Registered
24 Oct 2009
2,492
51
i would try that with a No: 4NS36 cutter.

P

phils2um

Phil S
11 Sep 2015
448
235
Ann Arbor, Michigan
Maybe I'm missing something here but wouldn't a M2 die be the appropriate die to thread a 2mm diameter rod?

Edit added:
From page 246, Thomas J. Glover, Pocket Ref, Fourth Edition, Sequoia Publishing Inc., 2015 - "Clearance Holes for Bolts and Screws - Metric Series"
Bolt or screw size: 2, Nominal diameter millimeter: 2.00, close clearance hole: 2.10, normal clearance hole: 2.25, loose clearance: 2.40
bolt or screw size: 1.8, Nominal diameter millimeter: 1.80, close clearance hole: 1.90, normal clearance hole: 2.00, loose clearance: 2.15

Based on the above, and what you want to do, you might also be able to use a M1.8 die without turning down the rod if you were very careful!

By the way, Pocket Ref is a very handy little reference guide for everything from abrasives to zinc sheet gauge (first and last entries in the index). I highly recommend anyone with an engineering/mechanical/electrical bent have one. This particular volume is more taylored for U.S./North America. There is probably a similar reference directed toward Europe.

edited again in an attempt to make clearer!

Last edited:
Paul2727

Paul2727

Registered
5 Jun 2018
237
48
England
Maybe I'm missing something here but wouldn't a M2 die be the appropriate die to thread a 2mm diameter rod?

Edit added:
From page 246, Thomas J. Glover, Pocket Ref, Fourth Edition, Sequoia Publishing Inc., 2015 - "Clearance Holes for Bolts and Screws - Metric Series"
Bolt or screw size: 2, Nominal diameter millimeter: 2.00, close clearance hole: 2.10, normal clearance hole: 2.25, loose clearance: 2.40
bolt or screw size: 1.8, Nominal diameter millimeter: 1.80, close clearance hole: 1.90, normal clearance hole: 2.00, loose clearance: 2.15

Based on the above, and what you want to do, you might also be able to use a M1.8 die without turning down the rod if you were very careful!

By the way, Pocket Ref is a very handy little reference guide for everything from abrasives to zinc sheet gauge (first and last entries in the index). I highly recommend anyone with an engineering/mechanical/electrical bent have one. This particular volume is more taylored for U.S./North America. There is probably a similar reference directed toward Europe.

edited again in an attempt to make clearer!
Thanks Phil,
I thought that M2 would be right, but wasn't sure. I'll get a M2 die and give it a go.
Regards,
Paul.

Greg Elmassian

Greg Elmassian

Registered
8 Mar 2014
3,301
320
San Diego
www.elmassian.com
m2 won't have enough thread, I agree with Phil... notice for a bolt, only the smallest mode has an outer diameter of 2mm, the rest use a diameter greater than 2mm, so the threads will probably be not full depth/height

P

Paul M

Registered
25 Oct 2016
3,893
461
56
Royston
By the way, Pocket Ref is a very handy little reference guide for everything from abrasives to zinc sheet gauge (first and last entries in the index). I highly recommend anyone with an engineering/mechanical/electrical bent have one. This particular volume is more taylored for U.S./North America. There is probably a similar reference directed toward Europe.
We had Zeus books when I was an apprentice, very handy little book, I'm not sure what happened to mine, I really ought to replace it

dunnyrail

dunnyrail

DOGS, Garden Railways, Steam Trains, Jive Dancing,
25 Oct 2009
15,945
841
71
St.Neots Cambridgeshire UK

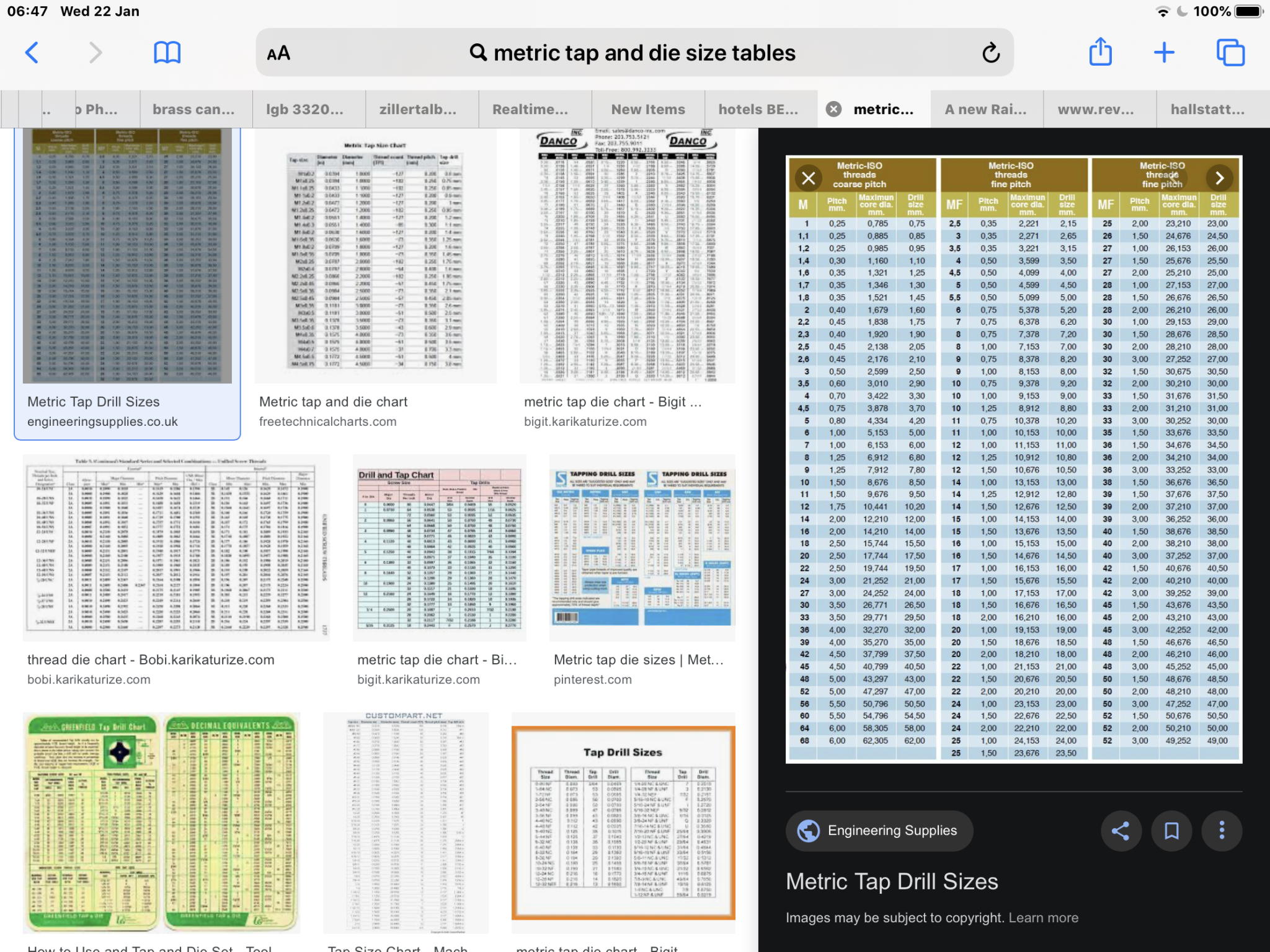

The following Google search brought up some tables. Sorry thought that I had posted this yesterday but was just sat waiting for me to press the post button!
