All,

I'm currently in the process of digitising a Spreewald locomotive I recently aquire.

The loco has 3 lights on the front and 3 lights on the reason (examples) below. I have a question on how lights are used on the prototype Spreewald/in the real world. Is the top one the normal running light and the bottom two are the high beam equivalent or am I over thinking this and they're all on together?

The decoder I have let's me do lights/directionally forward and backward. However, I also have an additional 8 outputs so have the flexibility to set this up in a more prototypical way.

Curtis





Paul M

Registered
25 Oct 2016
6,055
1,031
57
Royston
All,

I'm currently in the process of digitising a Spreewald locomotive I recently aquire.

The loco has 3 lights on the front and 3 lights on the reason (examples) below. I have a question on how lights are used on the prototype Spreewald/in the real world. Is the top one the normal running light and the bottom two are the high beam equivalent or am I over thinking this and they're all on together?

The decoder I have let's me do lights/directionally forward and backward. However, I also have an additional 8 outputs so have the flexibility to set this up in a more prototypical way.

Curtis



I Britain, the lights are lit in pattern to show what type of train is being pulled, ie goods, passenger, express etc. Whether that applies in this case I'm not sure images.jpeg


PhilP

G Scale, 7/8th's, Electronics
5 Jun 2013
27,355
2,821
Tamworth, Staffs.
Curtis,
I think it would depend on the line and country the prototype was running in?

But it is your loc (and line) so you can choose.

PhilP


dunnyrail

DOGS, Garden Railways, Steam Trains, Jive Dancing,
25 Oct 2009
18,636
3,804
72
St.Neots Cambridgeshire UK

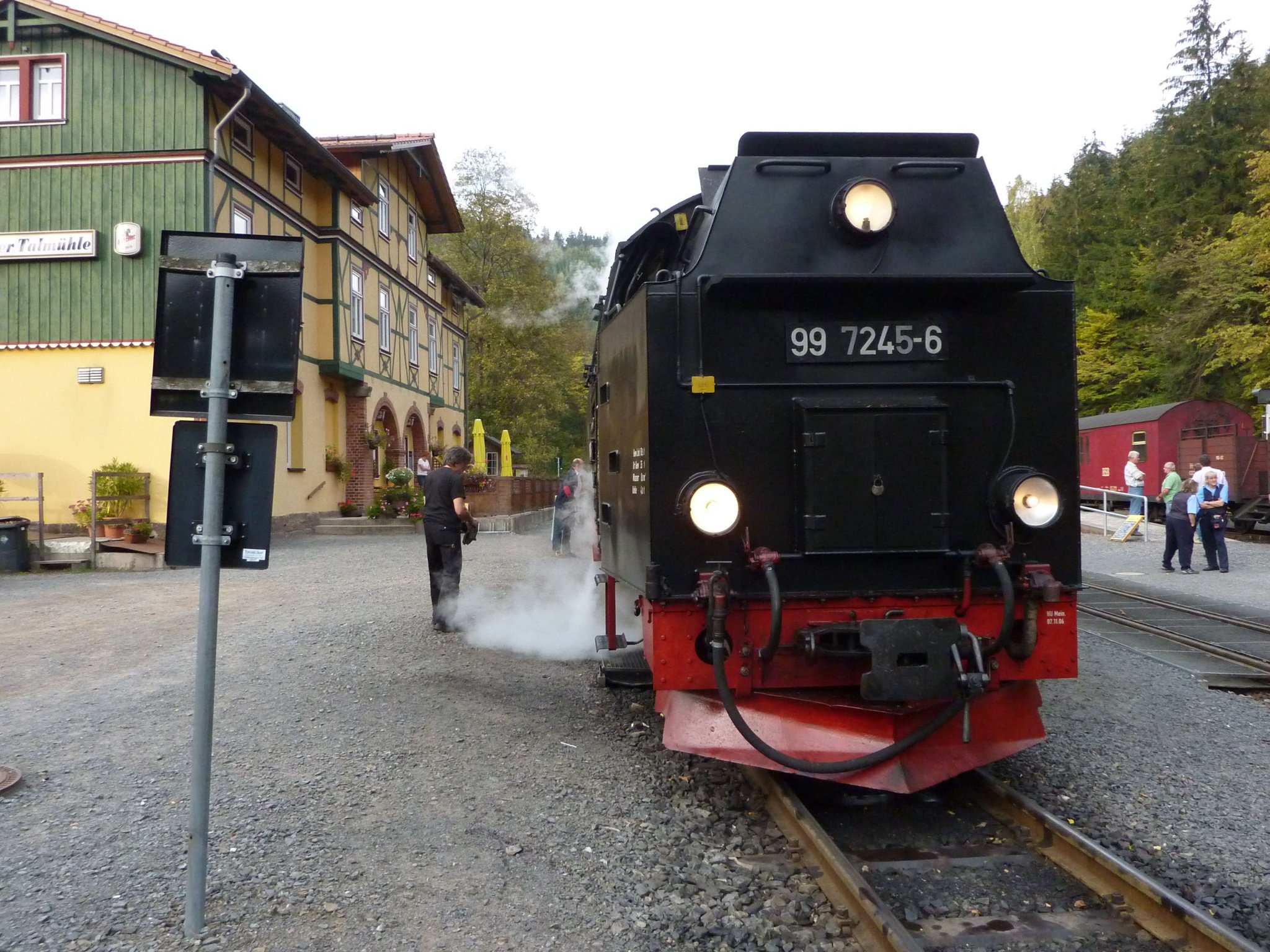

As Spreewald is a German Loco, German practice is to have all 3 alight in the direction of travel. You can see that on the loco below going bunker first. 0CD1DC38-6186-4400-A24B-D4DC9DA3A33D.jpeg


65 1057

Railways @ 1.435 mm/ 1.000 mm/ 750 mm and 45mm
9 May 2018
305
236
57
Berlin
As Spreewald is a German Loco, German practice is to have all 3 alight in the direction of travel. You can see that on the loco below going bunker first.

JonD: Absolutely right, and well observed!

According to the rules:

Signal Zg1 (Spitzensignal) - the leading loco/wagon of a train has always to show 3 white lamps in form of an "A" (in order to differentiate from cars w/ 2 lamps only).

An exception on the Deutsche Reichsbahn network still today:

Signal Fz1 (Rangiersignal) - just 1 bottom lamp (usually in driving direction bottom right) - applies ONLY for switching / shunting locos - NOT for trains

Although the Zg1 became mandatory in the 1950's, the Berlin S-Bahn still had many old trains running with 2 lamps only - see here in 1986:

19860929b Humboldthain - DR-Baureihe ET 165 – Wikipedia


curtis

Registered
27 Nov 2018
99
36
30
Germany
hsbagardenrailway.com
As always, I'm impressed with the depth of knowledge and helpfulness!

Paul - I never knew that about British running! Thank you

I didn't have a particular prototype in mind. I was mostly starting the conversation as I wired up the loco. For now, I'll start with 3 forward/ 3 rear in the direction of travel. John also messaged me separately and mentioned that when running backwards without a train they run with a red lamp which I made try my hand at adding in the future

Side note, until last year - I live 2minutes walk from where that last picture was taken (Humboldthain)


tac foley

Registered
11 Apr 2017
3,133
821
74
Near Huntingdon, UK
JonD: Absolutely right, and well observed!

According to the rules:

Signal Zg1 (Spitzensignal) - the leading loco/wagon of a train has always to show 3 white lamps in form of an "A" (in order to differentiate from cars w/ 2 lamps only).

An exception on the Deutsche Reichsbahn network still today:

Signal Fz1 (Rangiersignal) - just 1 bottom lamp (usually in driving direction bottom right) - applies ONLY for switching / shunting locos - NOT for trains

Although the Zg1 became mandatory in the 1950's, the Berlin S-Bahn still had many old trains running with 2 lamps only - see here in 1986:

19860929b Humboldthain - DR-Baureihe ET 165 – Wikipedia

Rangiersignal = shunting/switching indication.


Bynggi

Registered
24 Dec 2020
1
0
78
Baden-Baden, Germany
Please keeps us posted on your progess digitizing this little loc. I am new to this and need all the help I can get.
