Reverse loop with oval

[gscalerookie]

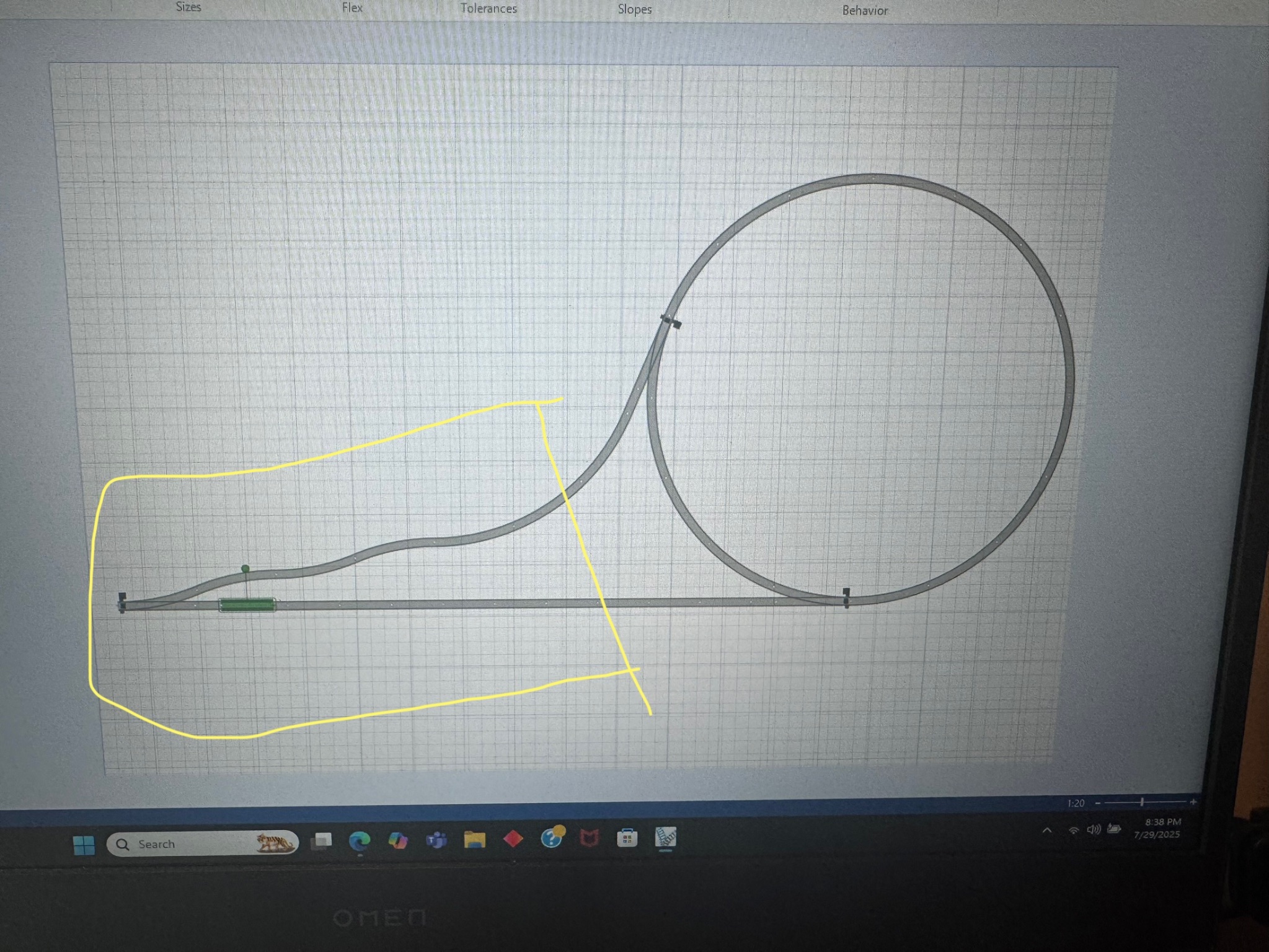

What am I getting wrong here. Can’t the highlighted area be shortened?



[Software Tools]

Can’t the highlighted area be shortened?

Pretty much certainly, but it will depend on a number of factors including:

• Curve radius concerned
• Possible need for some non standard length track sections,
• Or using several smaller than standard length sections

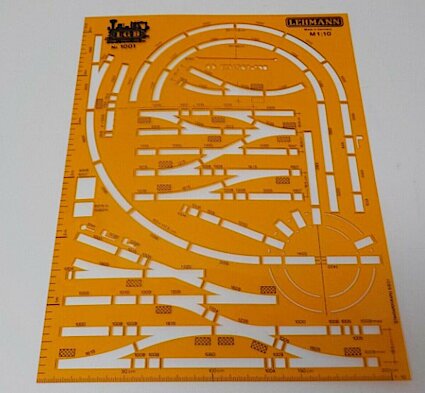

You would probably benefit from getting hold of the LGB 10010 track planning template....



[SevenOfDiamonds]

Can’t the highlighted area be shortened?

Yes, but . . .

If you don't need the link to make a circle . . .



Or, if you do need that link, you just need to use some non-standard track lengths . . .


I've assumed you're using R3 curves/points, but it's similar if you're using R1.

Cheers

David



[dunnyrail]

I think if you move the point one length nearer to the other one you will need less on the highlighted area, this was certainly the case when I built an R1 test loop. Of course much depends on the track radiu plus length of the straight track on the point in the circle.



[Gizzy]

For an R1 loop, I would use 7 curves, and LGB 10000 straights back to the points.

You wouldn't need any short pieces, and the loop wouldn't have an S curve....



[gscalerookie]

Pretty much certainly, but it will depend on a number of factors including:

• Curve radius concerned
• Possible need for some non standard length track sections,
• Or using several smaller than standard length sections

You would probably benefit from getting hold of the LGB 10010 track planning template....

View attachment 345653

couldnt find one of those last time i looked



[gscalerookie]

For an R1 loop, I would use 7 curves, and LGB 10000 straights back to the points.

You wouldn't need any short pieces, and the loop wouldn't have an S curve....

all i have is r3 curves. i would like to use those



[gscalerookie]

Yes, but . . .

If you don't need the link to make a circle . . .

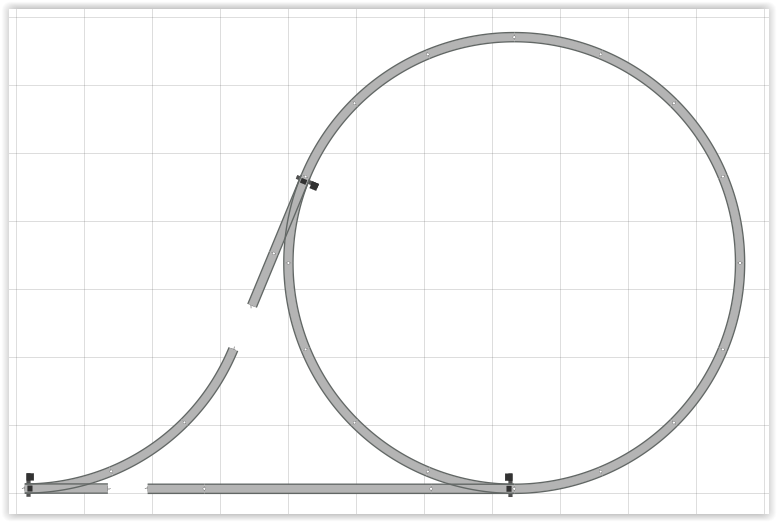

View attachment 345657

Or, if you do need that link, you just need to use some non-standard track lengths . . .

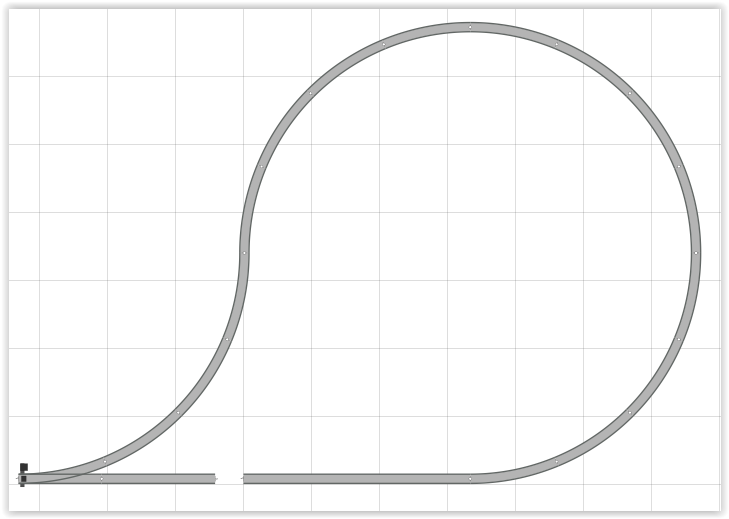

View attachment 345656

I've assumed you're using R3 curves/points, but it's similar if you're using R1.

Cheers

David

yes im using r3 curves. is that what you used on the second diagram above? is that anyrail? How can i load it into mine?



[gscalerookie]

Yes, but . . .

If you don't need the link to make a circle . . .

View attachment 345657

Or, if you do need that link, you just need to use some non-standard track lengths . . .
View attachment 345656

I've assumed you're using R3 curves/points, but it's similar if you're using R1.

Cheers

David

Thanks looks much better. I’m sure the track will give for the small gap



[gscalerookie]

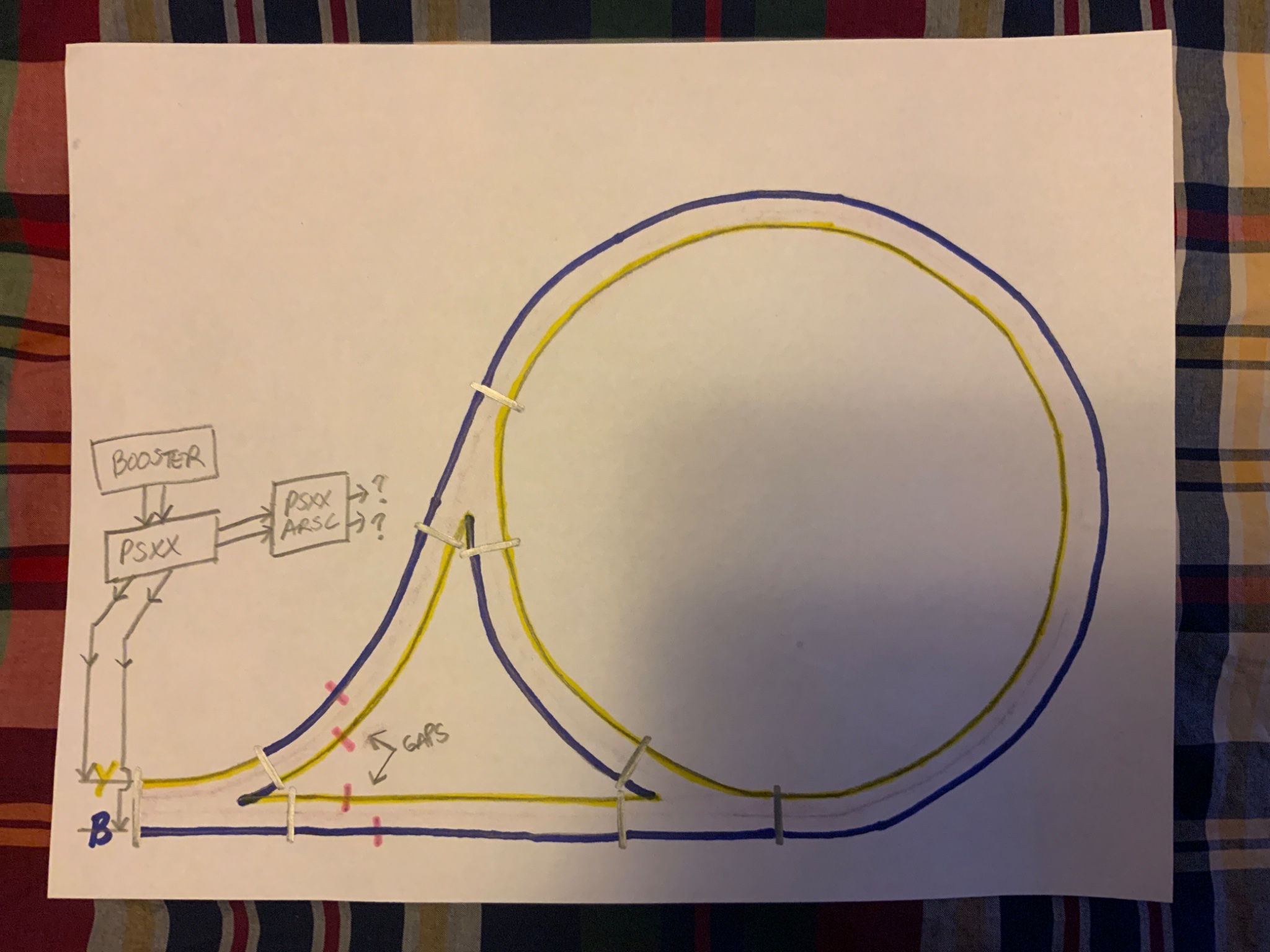

Help me make sense of the short circuit scenarios here. Am I missing something? I only see one instance. Where do I insulate the tracks? Will two psxx arsc work? Or will I need three?



[gscalerookie]

After putting it on paper i still believe i only need 1 psxx and 1 psxx-arsc. Does it matter where i connect the ar leads?
