FrenchChuffed
Registered
T have taken out all the screwa i can see, someone sait have fun getting to the boiler. I dont want to break any parts but which ones are made to be detatchable ? any ideas Guys?
OK what is the secret of taking apart the Stanz
- Thread starter FrenchChuffed
- Start date
FrenchChuffed
Registered
yes i checked the thread, but the link for some reason is not working, i get a page not available.
Ralphmp
Registered
D‘Oh! Just realised it was the link I pointed you to that doesn’t work - it used to, honestly - worth flagging up with the Mods.
FrenchChuffed
Registered
No Problem your only trying to help me computers are alaw unto themselves.
Ralphmp
Registered
So this is the info on the Massoth Wiki - https://www.massoth.de/wp-content/uploads/2020/04/LGB-2x212-Stainz_EN_massoth_umbaubericht.pdf
May be helpful.
May be helpful.
FrenchChuffed
Registered
The Patient's laying down in a Darkened room i think."OK what is the secret of taking apart the Stainz"
A huge amount of patience.....
Ralphmp
Registered
Especially when trying to get the cab past the blasted driver’s arm!"OK what is the secret of taking apart the Stainz"
A huge amount of patience.....
FrenchChuffed
Registered
I like how they say "Remove the Boiler" that is what i am trying to do lol i have followed all the other stages, its always great when instructions are written by people who know, i must need an iddiots guide
FrenchChuffed
Registered
Yes the driver needs to be h-armless
Ralphmp
Registered
Try the link to the Waltons Models web site from Shed. They cover boiler removal and separation pretty well
They are a little like one of those 3D wooden puzzles..
Hope the above links have helped?

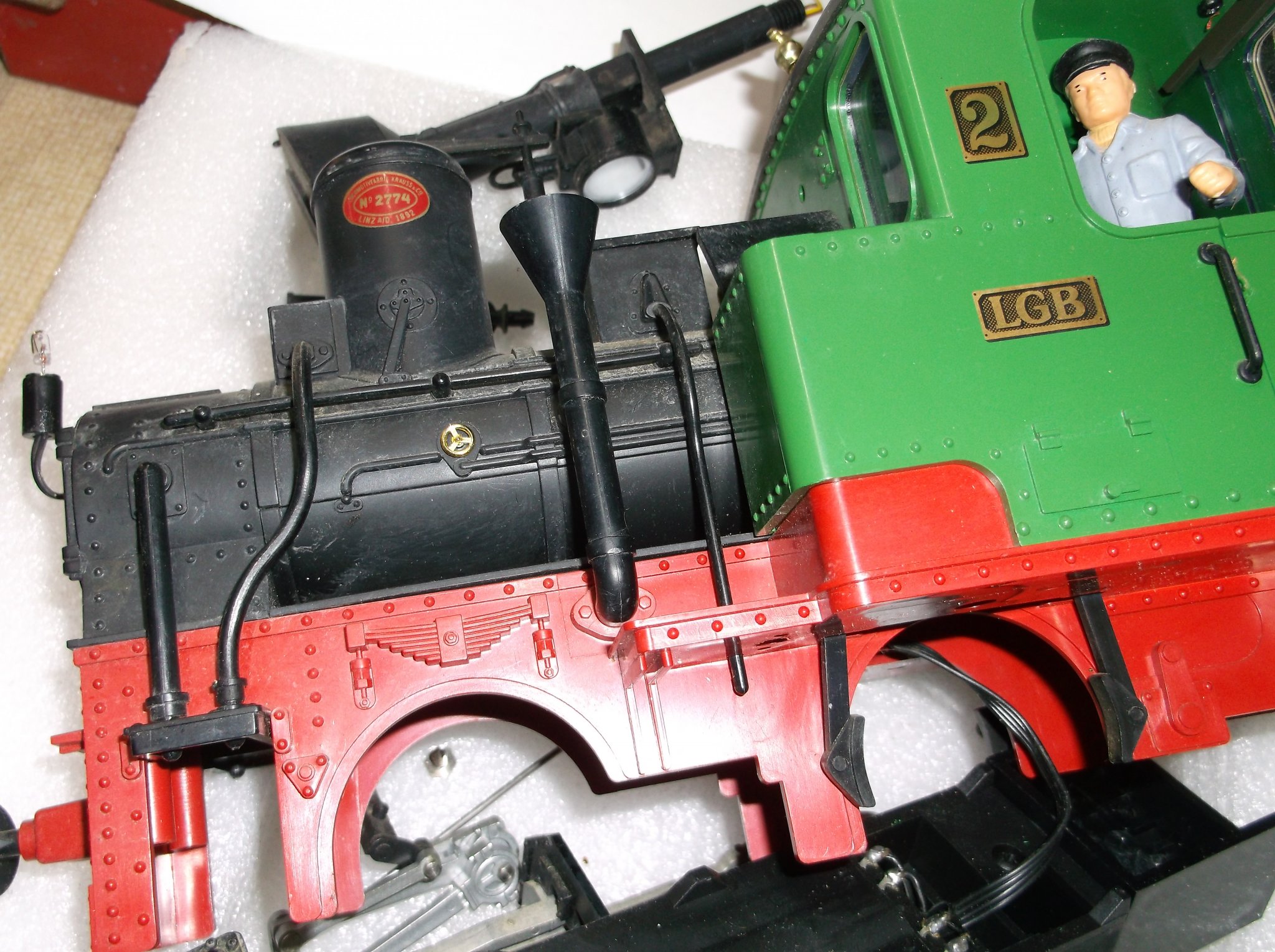

The pipes either side of the smoke box, pull out from the chassis.
The water filler funnel, pulls out at the bottom, and the? Safety valve-thing? In the front of the cab, pulls out of the cab, and up out of the boiler.
I *think* that is it?
The boiler is then squeezed/twisted, to separate it from the cab..
If you do it, the first time, without any loss of blood, I think you can give yourself a pat on the back.
PhilP
Hope the above links have helped?
The pipes either side of the smoke box, pull out from the chassis.
The water filler funnel, pulls out at the bottom, and the? Safety valve-thing? In the front of the cab, pulls out of the cab, and up out of the boiler.
I *think* that is it?
The boiler is then squeezed/twisted, to separate it from the cab..
If you do it, the first time, without any loss of blood, I think you can give yourself a pat on the back.
PhilP
FrenchChuffed
Registered

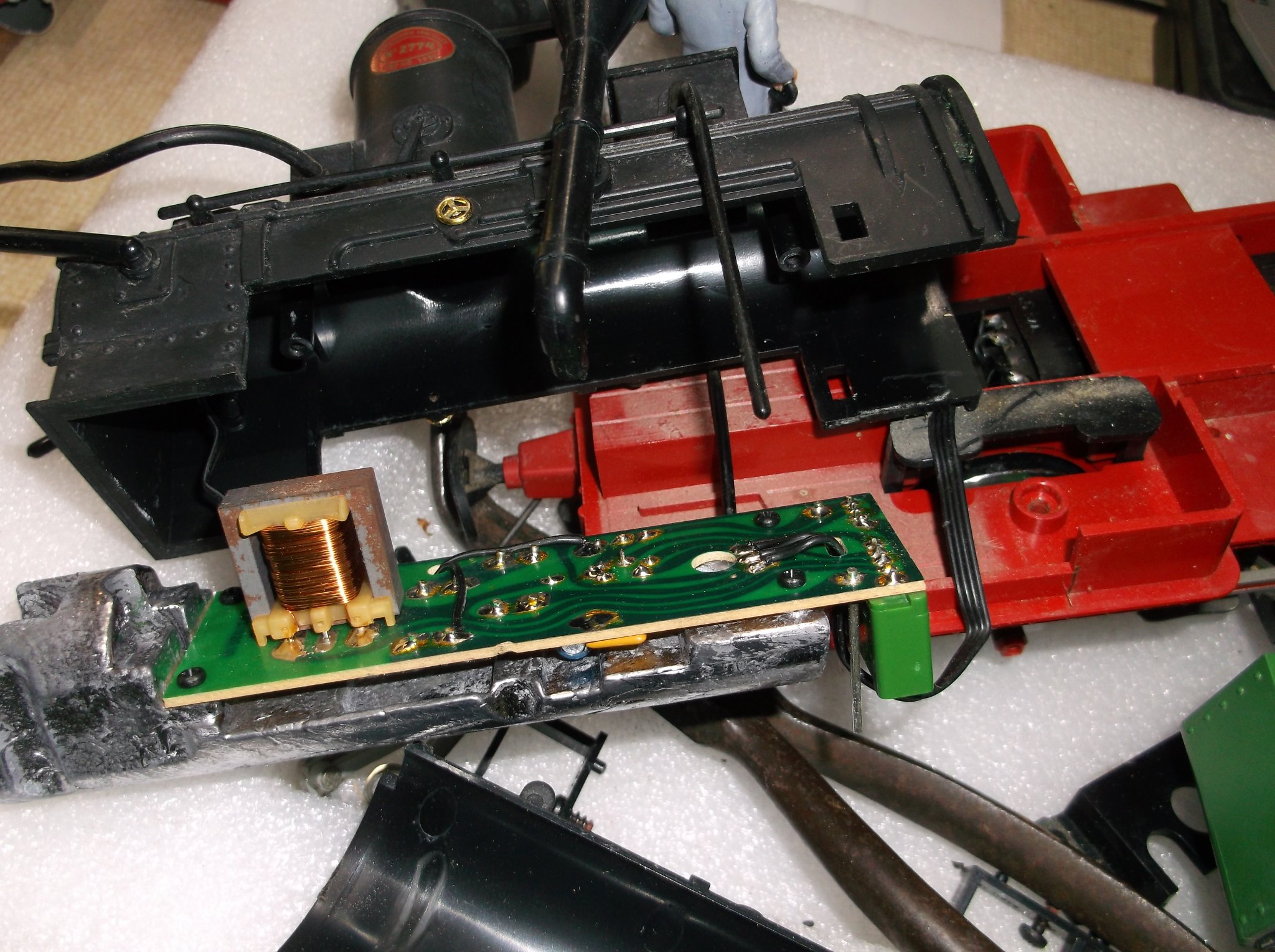

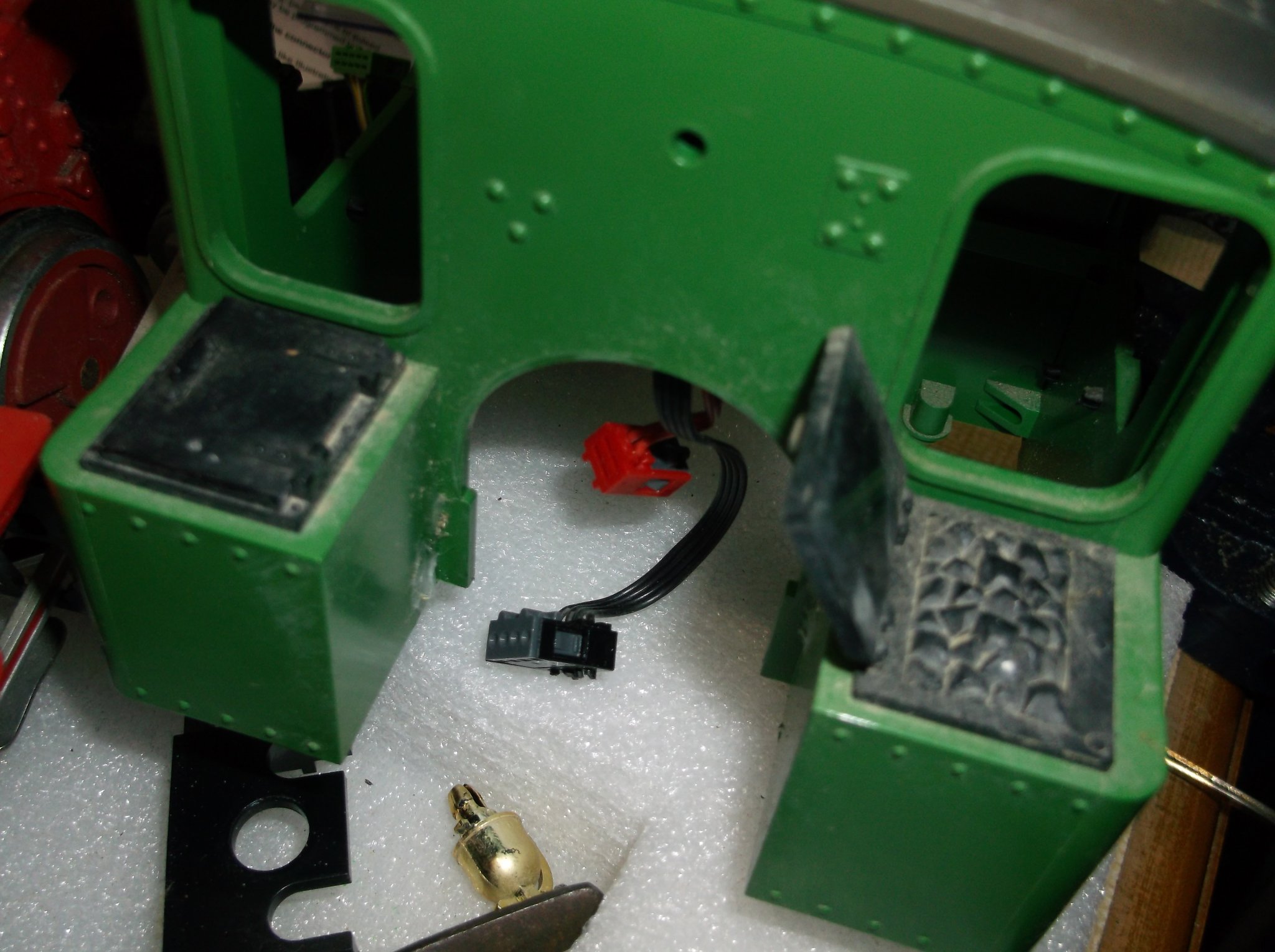

Yes the boiler cab end has to be squeezes or prized with a small flat blade screwdriver to pop the boile from the cab it doesnt slide up and out as one would expect from the groove it is in. then anothe judicious use of a small flat balde screwdriver to pop the bottom off the boiler you cant press the lugs in as i would have wxpected.
FrenchChuffed
Registered
As someone said the Gremans must have a sence of humour if this is the assembly of their basic starter locamotive, Full admeration for the though that went into it. GOD now what am i going to do with all these parts?? i cant remember why i took it apart now>
FrenchChuffed
Registered
Thanks Phill its knowing where to disasemble and where to add just that bit of extra pressure without breaking bits.They are a little like one of those 3D wooden puzzles..
Hope the above links have helped?
The pipes either side of the smoke box, pull out from the chassis.
The water filler funnel, pulls out at the bottom, and the? Safety valve-thing? In the front of the cab, pulls out of the cab, and up out of the boiler.
I *think* that is it?
The boiler is then squeezed/twisted, to separate it from the cab..
If you do it, the first time, without any loss of blood, I think you can give yourself a pat on the back.
PhilP
FrenchChuffed
Registered
well its only taken me 40 years to get there, i hope it doesnt take 40 years to put it back together i will be 118 by then. lol
