When the Isle of Man Railway company replaced the Basket Bridge at Sulby in 1914, the new structure was tested with three locos and a couple of carriages; there is a photograph of the wet November day in 1914 when this happened.

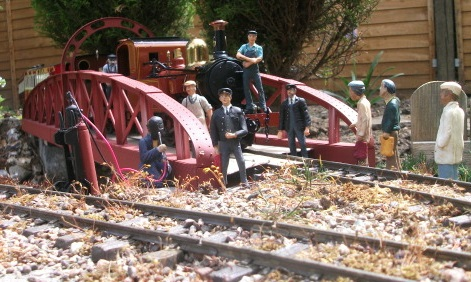

I built a model of the Basket Bridge a few years ago, but it finally succumbed to the weather, so a replacement has been built from laser cut acrylic, embellished with around 1500 Cambrian rivets (yes, I know!). Yesterday saw the testing re-enacted, albeit with one less locomotive and better weather:

  • Like
Reactions: steinman and mike
ge_rik

ge_rik

British narrow gauge (esp. Southwold and W&LLR)
24 Oct 2009
9,787
393
Cheshire
www.riksrailway.blogspot.com
Looks like a really good model. Have you got a side-on view?

Rik

Northsider

Northsider

Registered
3 May 2012
715
140
Looks like a really good model. Have you got a side-on view?

Rik

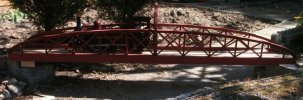

The background is a bit of a wasteland just now -I'm holding off on the new 'modelling shed' -a log cabin type of thing, suitable for year-round use. With a bit of planting it should look less utilitarian.
Basket Bridge 1.jpg
Basket Bridge 2.jpg
Basket Bridge 3.jpg

  • Like
Reactions: mike
Northsider

Northsider

Registered
3 May 2012
715
140
That is really beautiful! 1500 Cambrian rivets.... oh my!!
Yes, I turned into a bit of a rivet counter on that one, although much of it is guesswork rather than absolutely prototypical. The trouble is, once you have started you've got to see the thing through. And in my defence, it does look better than the Mk1 version...

Jasper

Jasper

Registered
11 Mar 2017
106
48
52
The Netherlands
Nice model. And I like that you re-enacted the original photo. Any chance of uploading that too?

Incidentally, I never knew "basket bridge" was a term.

Northsider

Northsider

Registered
3 May 2012
715
140
Nice model. And I like that you re-enacted the original photo. Any chance of uploading that too?

Incidentally, I never knew "basket bridge" was a term.
It was called the basket bridge because the arched bracing made it look like a basket...

(copyright remains with the Manx Museum)

The basket bridge was slid to one side and the new bridge installed -you can see it just behind the new bridge, which is the one under test.

Jasper

Jasper

Registered
11 Mar 2017
106
48
52
The Netherlands
It was called the basket bridge because the arched bracing made it look like a basket.
Thought that might be the case.

The gate shaped feature in the middle of the bridge is interesting. I assume it is for added strength.
