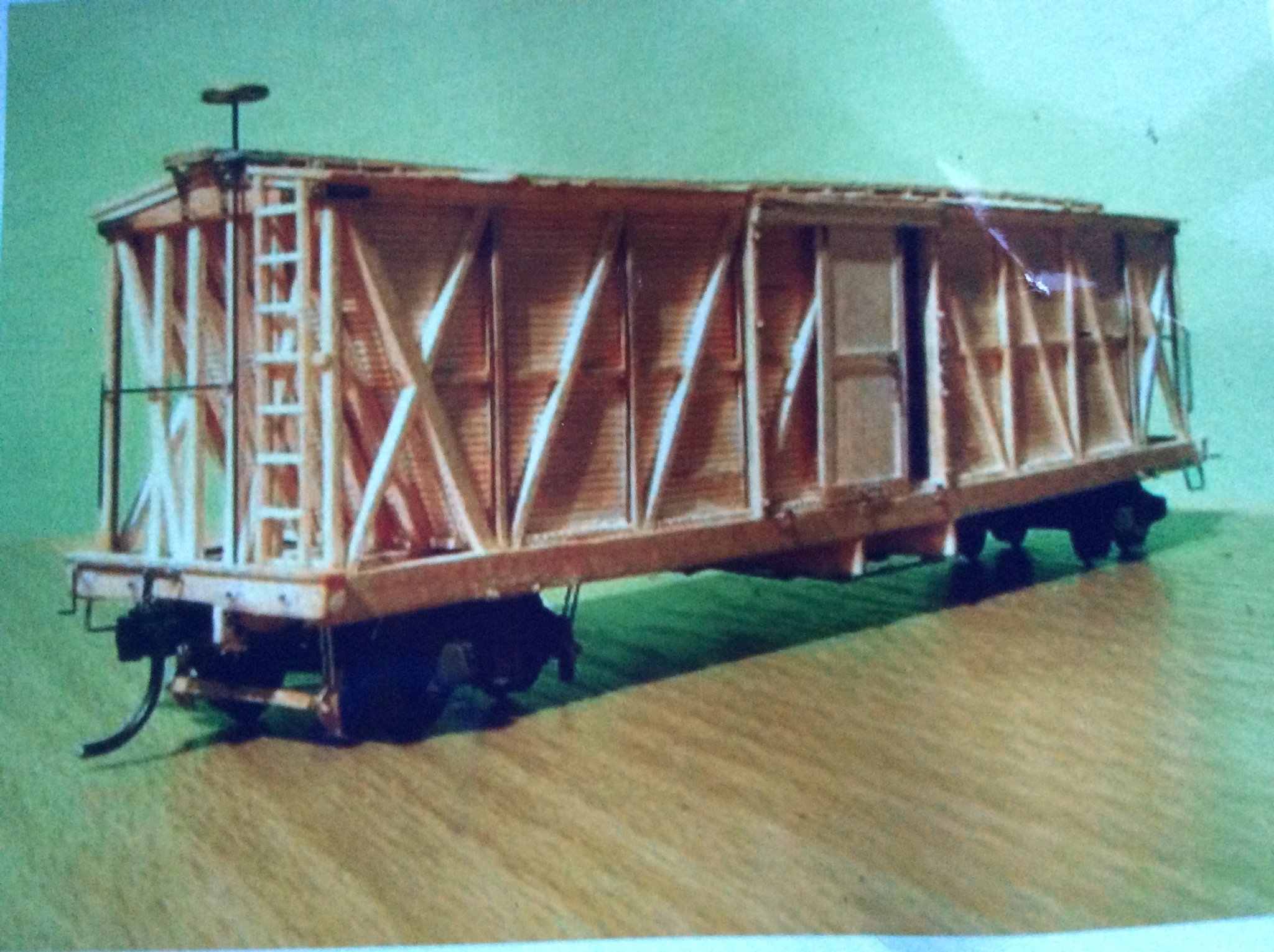

Problem: I have a photo of an ancient timber boxcar I want to model. The side of the car is divided into 9 apparently equal bays with external “X” cross braces on each end panel, and single braces going from bottom left to top right of the left hand 3 braced panels, bottom right to top left of the three right-hand panels, the centre panel being the open doorway.
The end of the vehicle and the doorway look to be in proportion as between height and width, allowing for perspective, compared with a Bachmann box van and what one would expect on a real boxcar. My difficulty arises from the fact that the “X” braces on the photo appear to be at a shallower angle to each other than my attempted full-scale drawing permits. This suggests that the model in the photo may be longer than a standard Bachmann model (remember 1950’s Hornby carriage models?) or does the model represent a longer, or lower height, vehicle? The axles look to be mounted close together in small bogies which look perhaps a bit further apart than might be expected.
Is there any way I can establish the perspective of the photo and use it to calculate the actual dimensions of the model?
