Choppercook
Registered

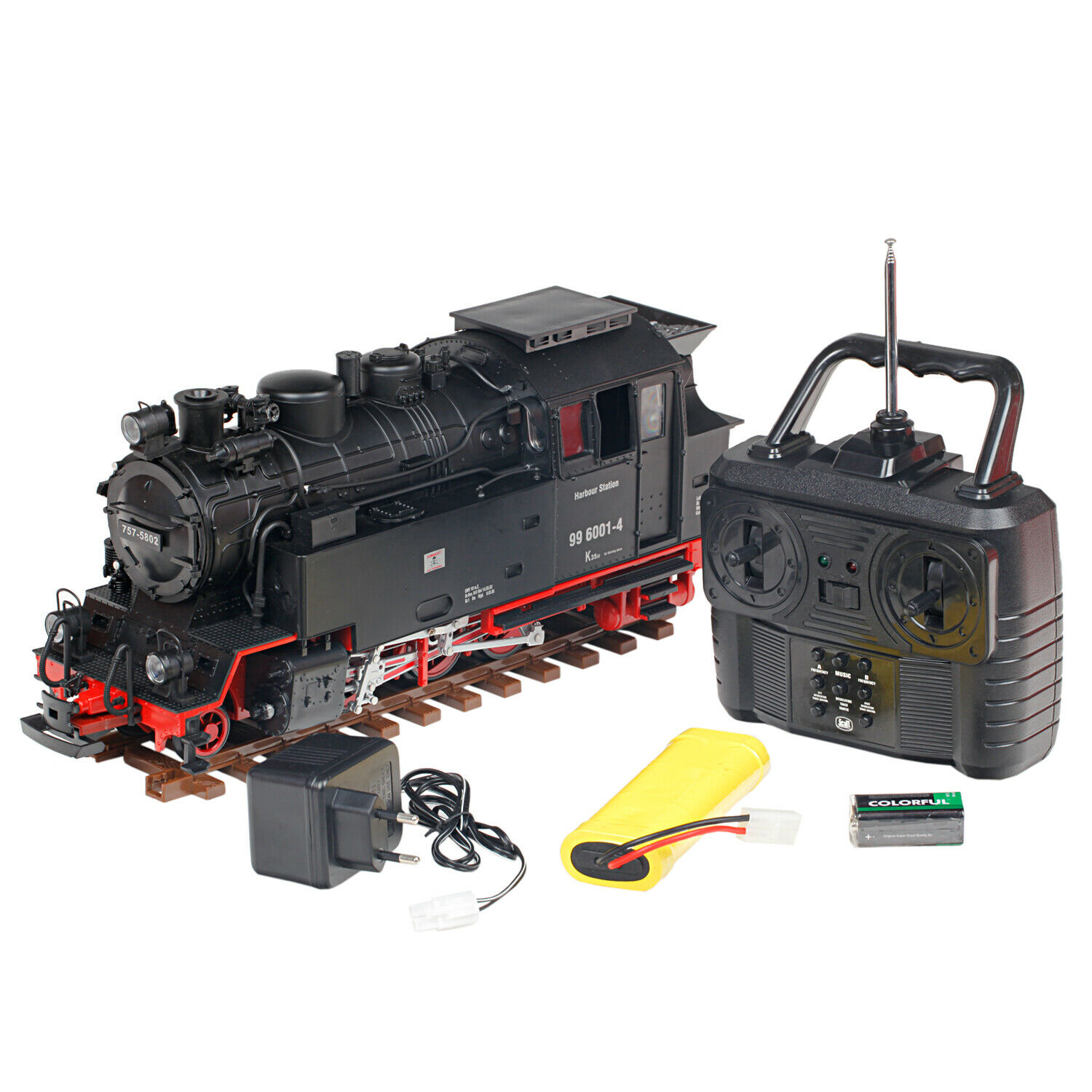

I try to run my loco today after a long time new batteries , run for a very short time then stop, will not run until I reconnect , then run but stop, lost signal ,please help
Why do my RX65-2 keep losing signal,
- Thread starter Choppercook
- Start date
Can you see the LED on the receiver?
If it flashes in groups of five, then Low Voltage Cut-off is thinking you have a lithium battery that is nearly flat..
Switching off/on, or going to zero on the transmitter, will rearm the receiver to run again.
Turn off LVC on the receiver, but only if using NiMH batteries.
PhilP
Choppercook
Registered
Thanks , I NiMH batteries 7.2v
Choppercook
Registered
what batteries to use do you recommend
7.2V is fine, if that gives you the speed you require..
Google Deltang paperclip settings, or see the documentation that came with your receiver, for how to turn LVC off.
PhilP
ge_rik
British narrow gauge (esp. Southwold and W&LLR)
I agree with Phil's diagnosis. Always a good idea to disable LVC if you are using NiMh cells.
Quick and easy to do with paperclip settings
www.deltang.co.uk
LVC
1. Connect P3 and P4 together.
2. Switch the receiver on.
3. Remove the connection.
The led on the receiver will come on solid and flicker:
* once a second if 'low voltage cutoff' is disabled (eg: for 9v PP3, Nicads, NiMHs, LiFe cells).
* twice in 1.5s if 'low voltage cutoff' is enabled (recommended for Lipo cells).
Rik
Quick and easy to do with paperclip settings
'Paperclip' Changes
LVC
1. Connect P3 and P4 together.
2. Switch the receiver on.
3. Remove the connection.
The led on the receiver will come on solid and flicker:
* once a second if 'low voltage cutoff' is disabled (eg: for 9v PP3, Nicads, NiMHs, LiFe cells).
* twice in 1.5s if 'low voltage cutoff' is enabled (recommended for Lipo cells).
Rik
Choppercook
Registered
I
Choppercook
Registered
ge_rik
British narrow gauge (esp. Southwold and W&LLR)

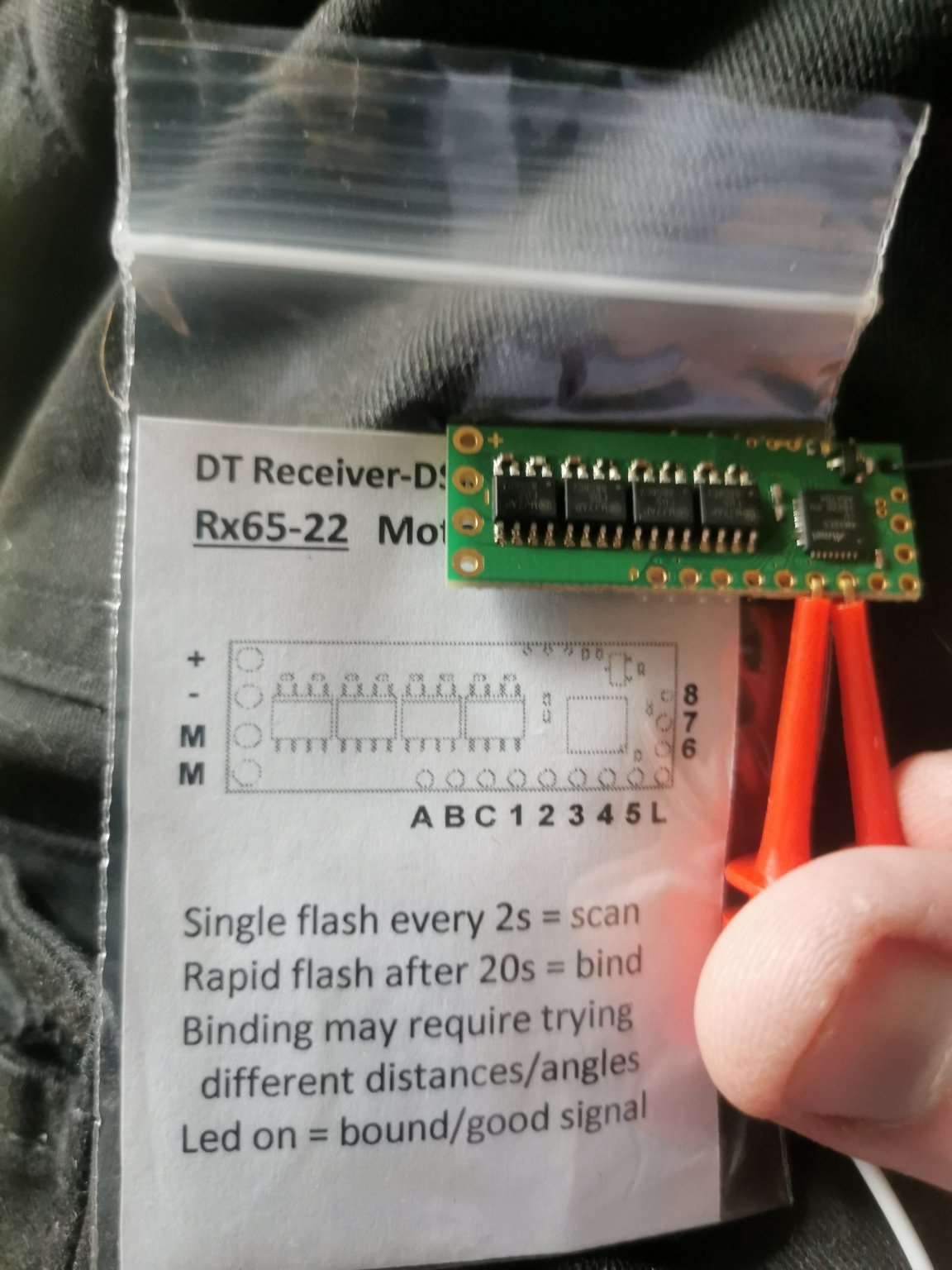

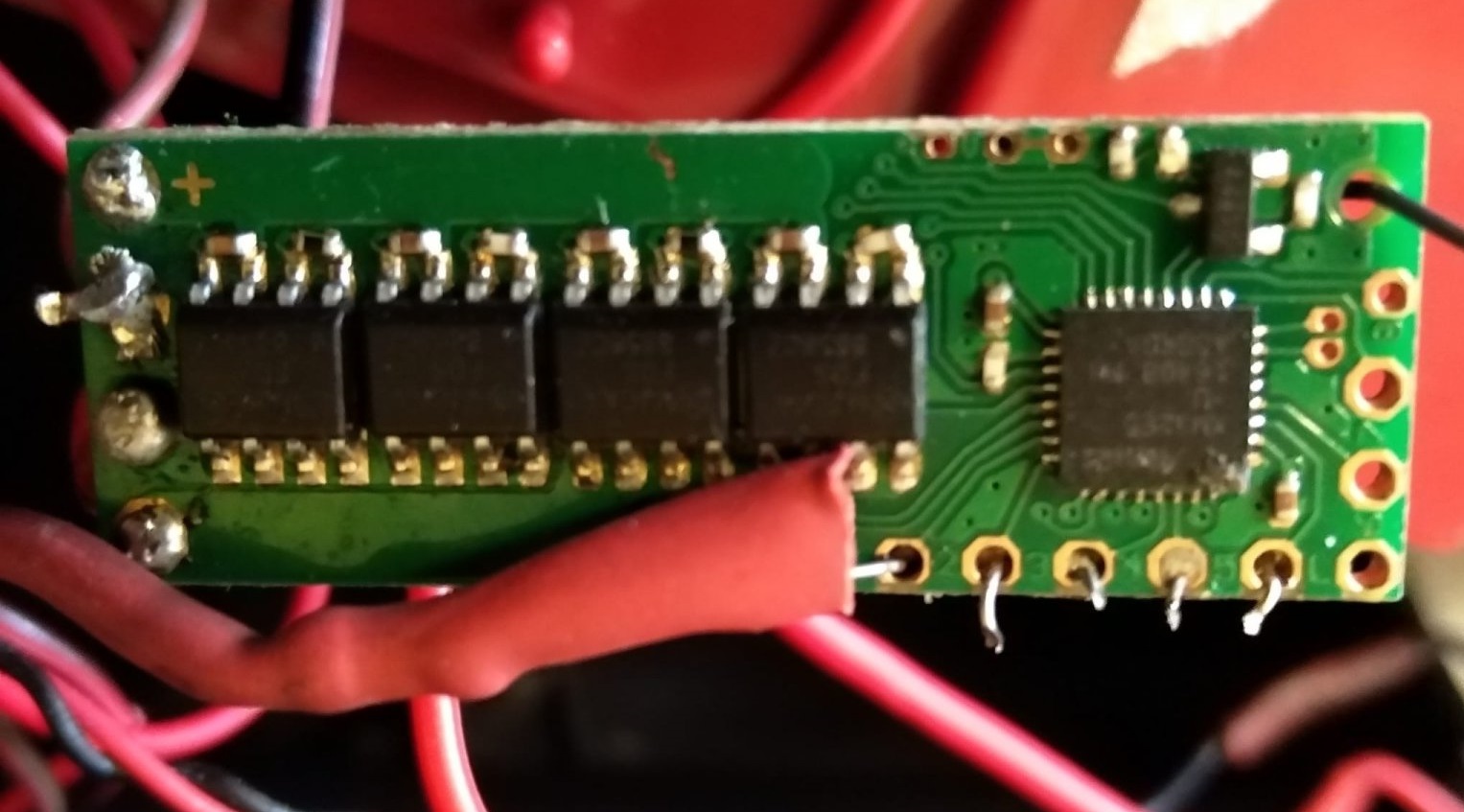

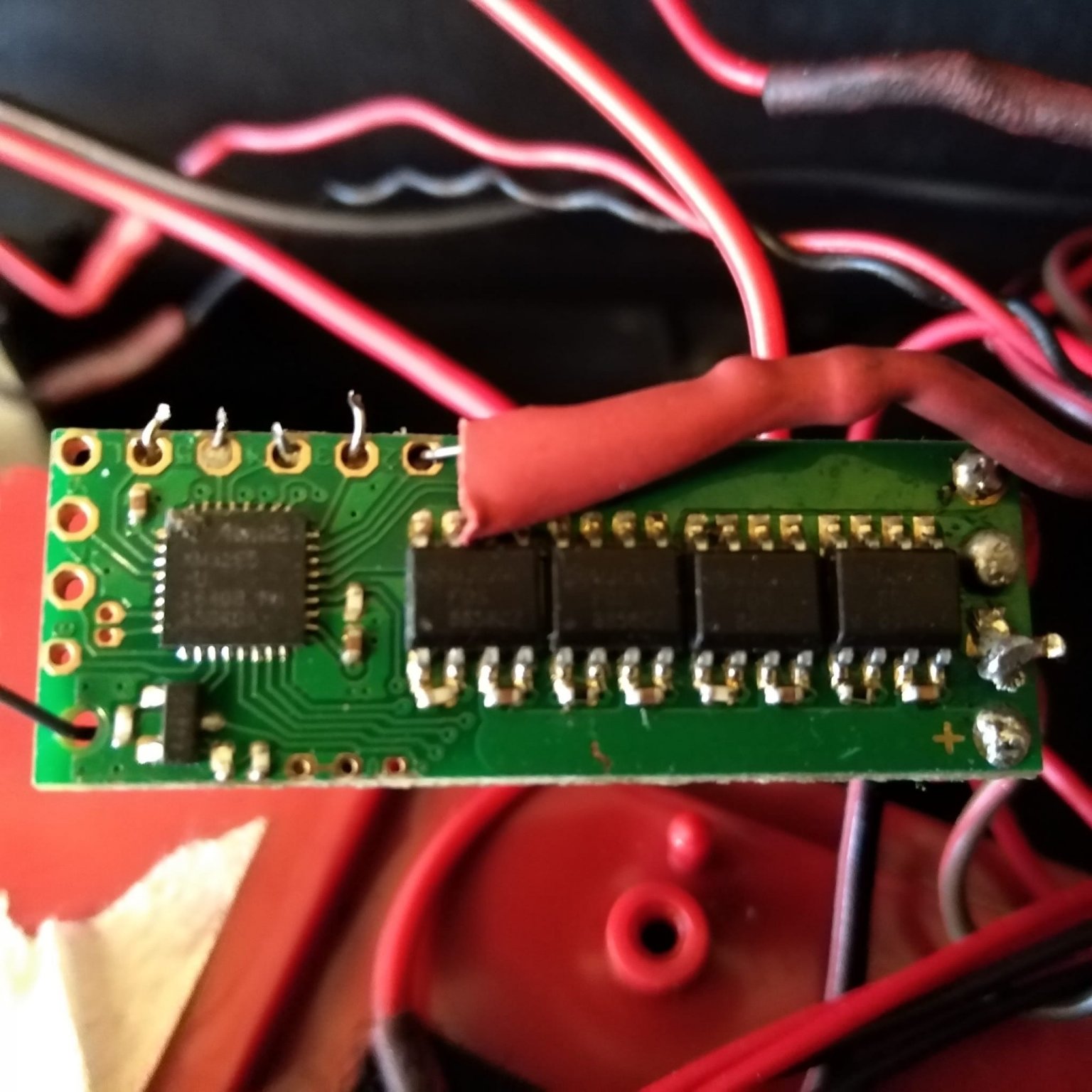

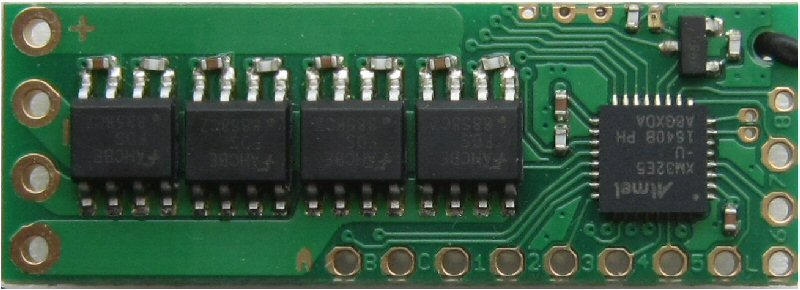

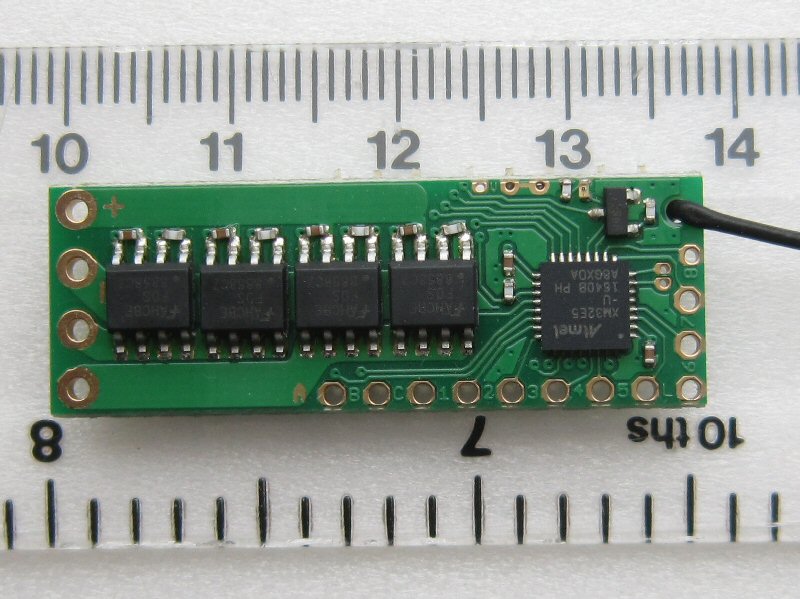

If you look closely at your second photo, you can see the numbers etched beside each pad. Alternatively, it's a bit clearer on this image from the Deltang website
A B C 1 2 3 4 5 L along the base and 6 7 8 up the side
Rik
Choppercook
Registered

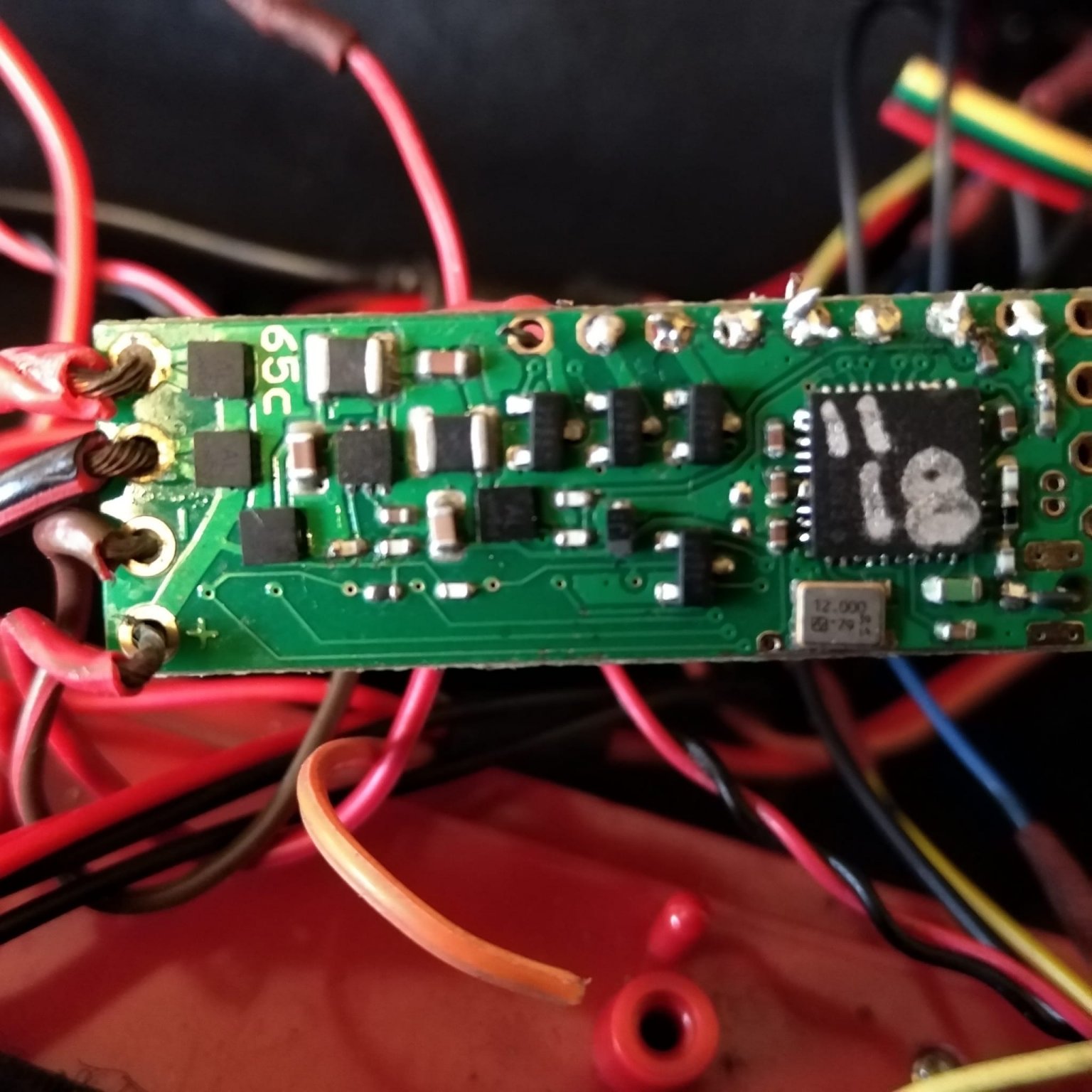

yea have that photo but my RX not the same
ge_rik
British narrow gauge (esp. Southwold and W&LLR)
Choppercook
Registered
sorry was looking at it upside down, ?
Choppercook
Registered
Sorry , I not the best at sorting things out , but you need electrical engineering degree to work this out. I contact port 2 and 3 to turn off LVC , Think it work but as soon as I run the loco it cut out , I am using a 3300 mAh 7 cell = 8.4V, what do I need to do to get it running as it used to, PLEASE HELP
IF you connected ports 2 & 3, then you will have changed from centre-off to low-off throttle. - I doubt you have done this.
You need to connect pins 3 & 4.
Then switch the receiver on..
You should see one flash per second.
If not, turn off and back on again.
When you get one flash per second, turn the receiver off. Remove the link.
You have now turned LVC off, so if you still have a problem, it is something else.
PhilP
You need to connect pins 3 & 4.
Then switch the receiver on..
You should see one flash per second.
If not, turn off and back on again.
When you get one flash per second, turn the receiver off. Remove the link.
You have now turned LVC off, so if you still have a problem, it is something else.
PhilP
Choppercook
Registered
I know I'm not the brightest of sparks but this is very complicated for me , I have uses a Spektrum TX and RX with a ESC in 2 other loco's and they work just fine Lipo and NiMH, mysound card and smoke unit , I got the Deltang as told it the best, yes you if you know how the think works, Sorry bur I get so confused and mad with it all, I just want to run trains around my garden, you are a good man PhilP, Thanks
ge_rik
British narrow gauge (esp. Southwold and W&LLR)
If you send the receiver to me or to Phil, we'll happily turn off the LVC function for you. I'd pop round and do it, but Norfolk is a bit of a trek from Cheshire .....
The alternative is to swap over a lipo pack from one of your other locos.
If you buy another Deltang/Micron Rx, you can ask for it to be supplied with LVC disabled
Rik
Choppercook
Registered
Choppercook
Registered
yes but I need the wife to turn on the loco as I hold the paper clip on the RX , Thanks there are some good men on this site , I just a bit thick
