Aristo Mikado or new Pacific Chassis
- Thread starter WKDOR
- Start date
WKDOR
Registered
Morning Mike
Thanks for the lightning fast response. Please note correction to thread title, my apologies.
According to the Aristo Exploded Parts they are the same:
Mikado: 21400-33 Chassis
Pacific: 21400-33 Chassis
But I am not 100% confident that these are always accurate, so please let me check a key measurement before you start unpacking your shed/loft/garage.
Will get back to you today.
Many Thanks for trying.
mike
Thanks for the lightning fast response. Please note correction to thread title, my apologies.
According to the Aristo Exploded Parts they are the same:
Mikado: 21400-33 Chassis
Pacific: 21400-33 Chassis
But I am not 100% confident that these are always accurate, so please let me check a key measurement before you start unpacking your shed/loft/garage.
Will get back to you today.
Many Thanks for trying.
mike
Last edited:
Neil Robinson
Registered
To the best of my knowledge there are two different Pacific mechanisms and one Mikado. The Mike differs from both Pacifics and the exploded parts diagram number for the Mike chassis is 21500-33, not 21400-33 which is for the Pacific.
However the later Pacific chassis may be common with the Mike.
However the later Pacific chassis may be common with the Mike.
Last edited:
WKDOR
Registered
Many Thanks Neil.
Yes I entirely agree with your first sentence - the newer Pacific is different from the older Pacific chassis and they're both different from the Mikado.
But my edition of the Aristo Exploded Parts for the Mikado shows part # as 21400-33 Chassis. It has an ID under the page number of 071003 that I guess is the date. Could you check this ID on yours please? Can I have a copy?
Best
mike
Yes I entirely agree with your first sentence - the newer Pacific is different from the older Pacific chassis and they're both different from the Mikado.
But my edition of the Aristo Exploded Parts for the Mikado shows part # as 21400-33 Chassis. It has an ID under the page number of 071003 that I guess is the date. Could you check this ID on yours please? Can I have a copy?
Best
mike
WKDOR
Registered
Well here's a surprise update. Just measured the crucial distance between the front and rear motor block mounting posts as follows:
Newer Pacific: 220mm
Mikado; 220mm
So it looks like (absent any other differences) that there are only the two chassis types after all - Older Pacific vs Pacificado (Newer Pacific/Mikado). And Neil was right - again!
Mike, when you get a chance and if I'm in luck, could you please check the same measurement for me please?
Another case of speedy progress on this forum. Thank you both.
mike
Newer Pacific: 220mm
Mikado; 220mm
So it looks like (absent any other differences) that there are only the two chassis types after all - Older Pacific vs Pacificado (Newer Pacific/Mikado). And Neil was right - again!
Mike, when you get a chance and if I'm in luck, could you please check the same measurement for me please?
Another case of speedy progress on this forum. Thank you both.
mike
Neil Robinson
Registered
Hi Mike,
My sources are
http://www.aristocraftforum.com/exploded_parts/ART21400_PACIFIC-462.pdf
and
http://www.aristocraftforum.com/exploded_parts/ART21500_MIKADO.pdf
Logically the set of sheets for the Pacific and Mikado will have different numbers even for common
parts.
Edit.
P.S. that Pacific diagram is for the earlier version
Last edited:
beavercreek
Travel, Art, Theatre, Music, Photography, Trains
Yep, the Mikado and the Pacific shared the same chassis. In fact due to similar mouldings for the the boiler etc, some have called it the 'Pacifikado'.
The motor and gearing gear were changed so that each axle has its own gearbox and flywheel and I am not sure if it was done at the same time on both types of loco.
I have a Mikado with one broken gearbox (both of the wheels and axles have separated from the gear itself).
I am hoping to get a spare gearbox/axle assembly from Navin when I go over to New York at the end of the month (I have already spoken to him about it so he does have one,... but only the one, apparently, that he has put aside for me!).
The motor and gearing gear were changed so that each axle has its own gearbox and flywheel and I am not sure if it was done at the same time on both types of loco.
I have a Mikado with one broken gearbox (both of the wheels and axles have separated from the gear itself).
I am hoping to get a spare gearbox/axle assembly from Navin when I go over to New York at the end of the month (I have already spoken to him about it so he does have one,... but only the one, apparently, that he has put aside for me!).
WKDOR
Registered
Many Thanks to both.
Yes Neil that's the same version I have. I agree that using the model number suffix would be logical but that's not what Aristo did in the Parts list on page 6!
I had asked Navin whether he had any chassis earlier this year but he didn't. But I'd like to check with him again - Mike can you please confirm that he is still using the *****electronics2********** address? Have a good trip
Yes Neil that's the same version I have. I agree that using the model number suffix would be logical but that's not what Aristo did in the Parts list on page 6!
I had asked Navin whether he had any chassis earlier this year but he didn't. But I'd like to check with him again - Mike can you please confirm that he is still using the *****electronics2********** address? Have a good trip
Neil Robinson
Registered
Ooops sorry. I have had a letter from Specsavers stating my eyesight test is overdue!
ebay mike
Retired, but still hoarding. (GOF)

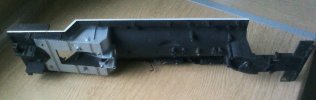

Ask and ye shall receive, hopefully. Well here it is Mike. Still has some pipework and tanks attached. I can't see any damage to the main chassis, but it's not pristine. As I don't have the motor block I didn't know where to measure from, but was a little concerned as there is a rebate for a driving wheel centrally which made me think Pacific. There is no obvious part number to refer to. If any good, it's yours for a tenner including postage. It would have been less but it's too long for a small packet so will incur medium parcel rate.
WKDOR
Registered
Many thanks for speedy reply Mike. Sorry for delay Can't upload with FF again.
Not pristine is fine by me. Can you please measure between the motor block mounting posts fore and aft, something like this:
Many Thanks
mike
Not pristine is fine by me. Can you please measure between the motor block mounting posts fore and aft, something like this:
Many Thanks
mike
ebay mike
Retired, but still hoarding. (GOF)
Back to the drawing board I'm afraid Mike. It's 200mm between the points marked, not the 220 you desire. Sorry I can't be of assistance.
Good luck with your search. Regards Mike.
WKDOR
Registered
Thanks very much indeed for checking Mike. That's as I feared when I was studying your pix, but its always difficult to see exactly what's what and where when you're looking at black against black.
I see your avatar looks not a million miles from mine. I was going to keep this Mikado motor block for a Garratt build but had decided against that. Maybe I'll have to review that decision..... Can't find any video of yours running on GSC, or is there?
All the best. I'll keep looking.
mike
I see your avatar looks not a million miles from mine. I was going to keep this Mikado motor block for a Garratt build but had decided against that. Maybe I'll have to review that decision..... Can't find any video of yours running on GSC, or is there?
All the best. I'll keep looking.
mike
ebay mike
Retired, but still hoarding. (GOF)
Hi Mike. My Garrett is still not finished after nearly 4 years - there always seemed to be something more pressing to tackle. Just for you have uploaded the only video clip i have of it in action - Hemsby Valley Railway 13 on YouTube. Link below.
It's a botch of two stretched Bachmann Big Haulers.
Mike
Mike
funandtrains
Registered
I hope you don't mind but I need the details pack of air pumps, bell and whistle - has anyone got these spare?
