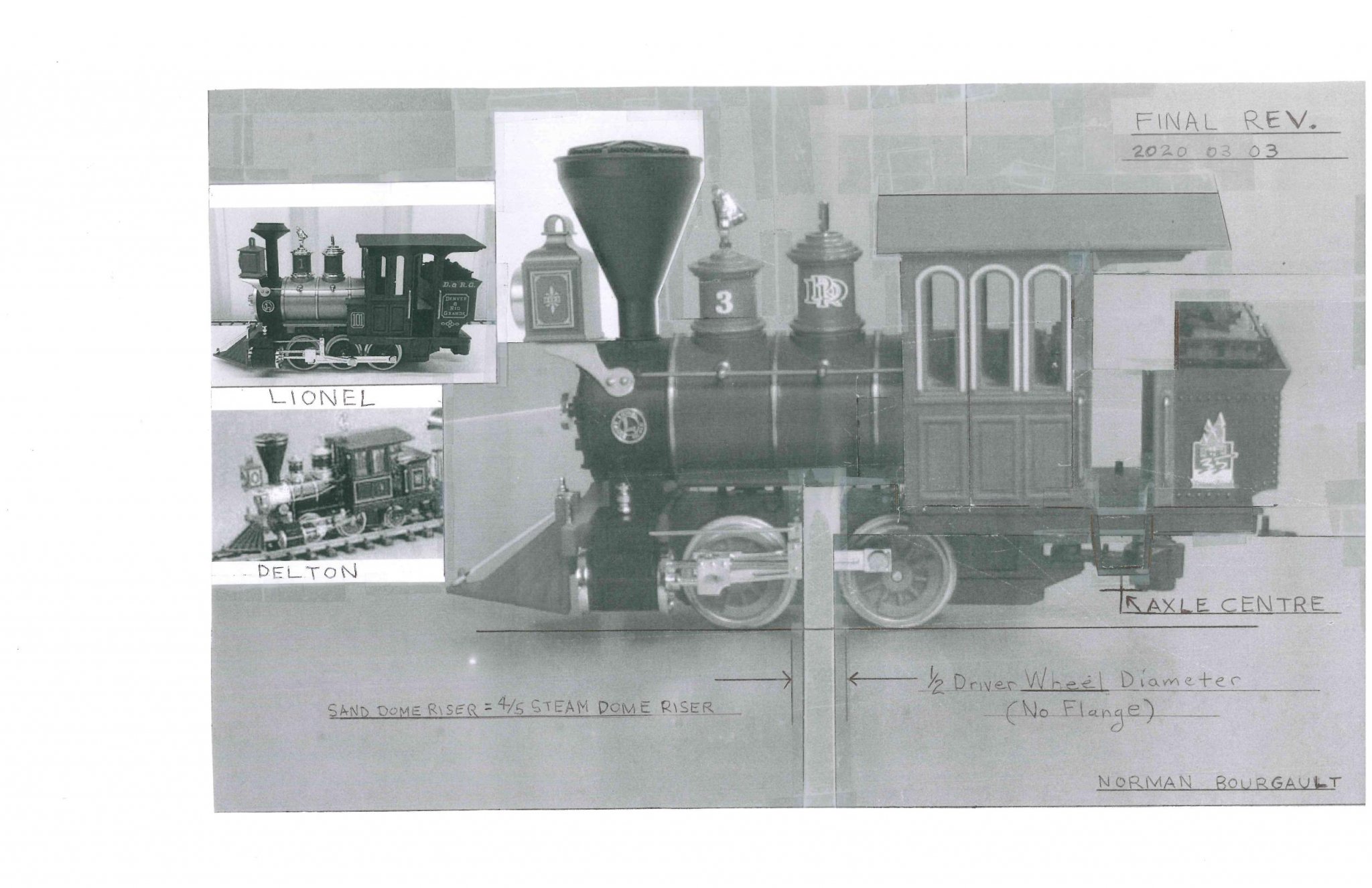

The NORMAN BOURGAULT Final Revision of the
LIONEL 0-4-2T with Smokebox of 2 Inch Diameter as the DELTON 0-4-2T with Smokebox of 1.5 Inch Diameter.


The Bunker must be moved further forward to be flush to the Front Edge of the Bunker Vertical Handrail.

I will Laser Cut the New Wood Cab with the C P HUNTINGTON Style of the Cab Side Rectangular Squared Corners Two Window Panes.
The Arched Tri Window Pane Design is also attractive.

The Replacement of the LIONEL Sand Dome & Steam Dome with
the BACHMANN COLUMBIA Sand Dome & Steam Dome would
provide an even closer match in appearance
of the LIONEL 0-4-2T Conversion to the Original DELTON 0-4-2T.


Inline image

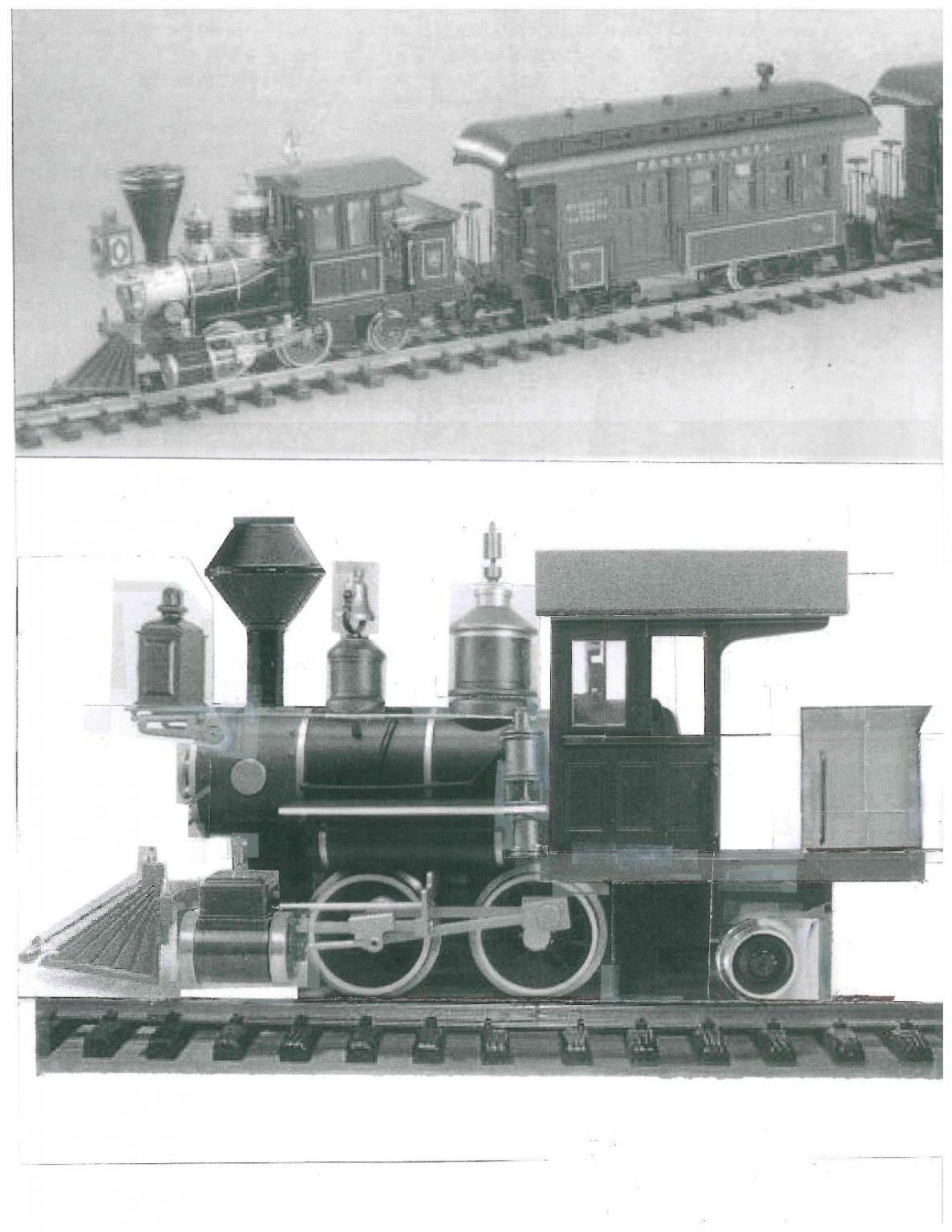

The BACHMANN COLUMBIA 1.75 Inch Diameter Boiler will Mate with the
HLW Flat Panel Roof Cab IF Horizontally Compressed to 3/4 of the Original Factory Length for
an appearance similar to the DELTON 0-4-2T " LOOK " using either

the BACHMANN COLUMBIA Drive with the C-16 Steam Cylinders

BACHMANN 0-4-2T.jpg

Inline image

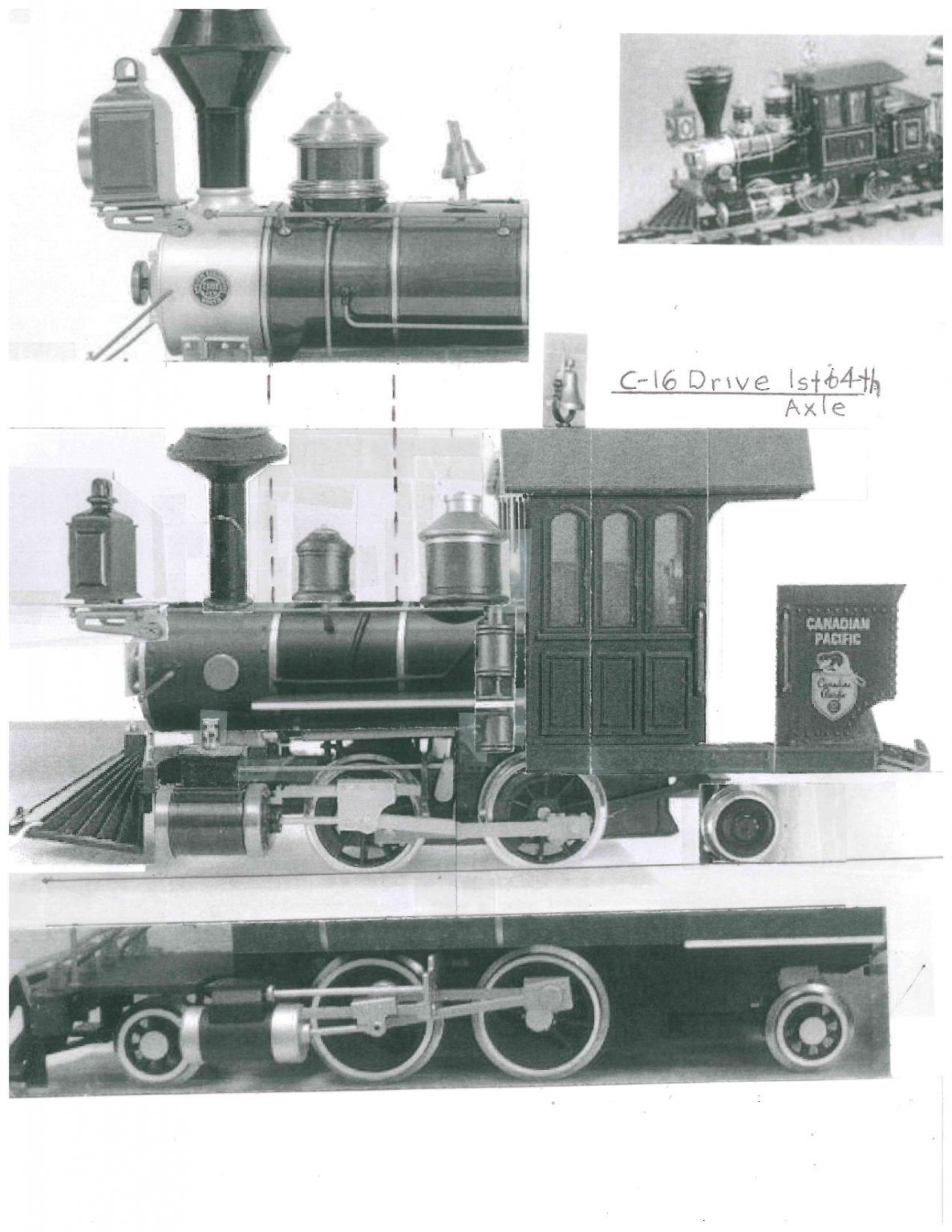

or the Custom Drive built of the 1st & 4th Axles of the DELTON C-16 Drive.

BACHMANN-DELTON 0-4-2T.jpg

Inline image

Upper Drive: The Custom Drive built of the 1st & 4th Axle of the DELTON C-16 Drive.
Lower Drive: The BACHMANN COLUMBIA Drive.


For myself,
I am simply going to concentrate on the LIONEL 0-6-0T to the DELTON 0-4-2T Conversion.


Norman Bourgault
