The DELTON-LIONEL 0-6-0T Rebuild as the DELTON 0-4-2T.

N

norman

Registered
1 Jan 2013
88
10

The G Scale Central Article, the DELTON-LIONEL 0-6-0T Rebuild as the DELTON 0-4-2T.



The DELTON-LIONEL 0-6-0T is a Horizontally & Vertically Compressed Version of the DELTON 0-4-2T Prototype,

as per LIONEL's Standard Compression Design for Tight Radius Locomotives.


The DELTON 0-4-2T Prototype Smokebox is 1.5 Inch Diameter.

The DELTON-LIONEL 0-6-0T Parts Source Smokebox is 2.0 Inch Diameter.



Therefore,

the Cab Side Bottom Panel Aspect Ratio of Height to Width
is Lower on the DELTON Original 0-4-2T Original Prototype and
is Higher on the DELTON-LIONEL 0-6-0T Rebuild as the DELTON 0-4-2T.


Calculations for the DELTON-LIONEL 0-6-0T Rebuild as the DELTON 0-4-2T.


Inline image

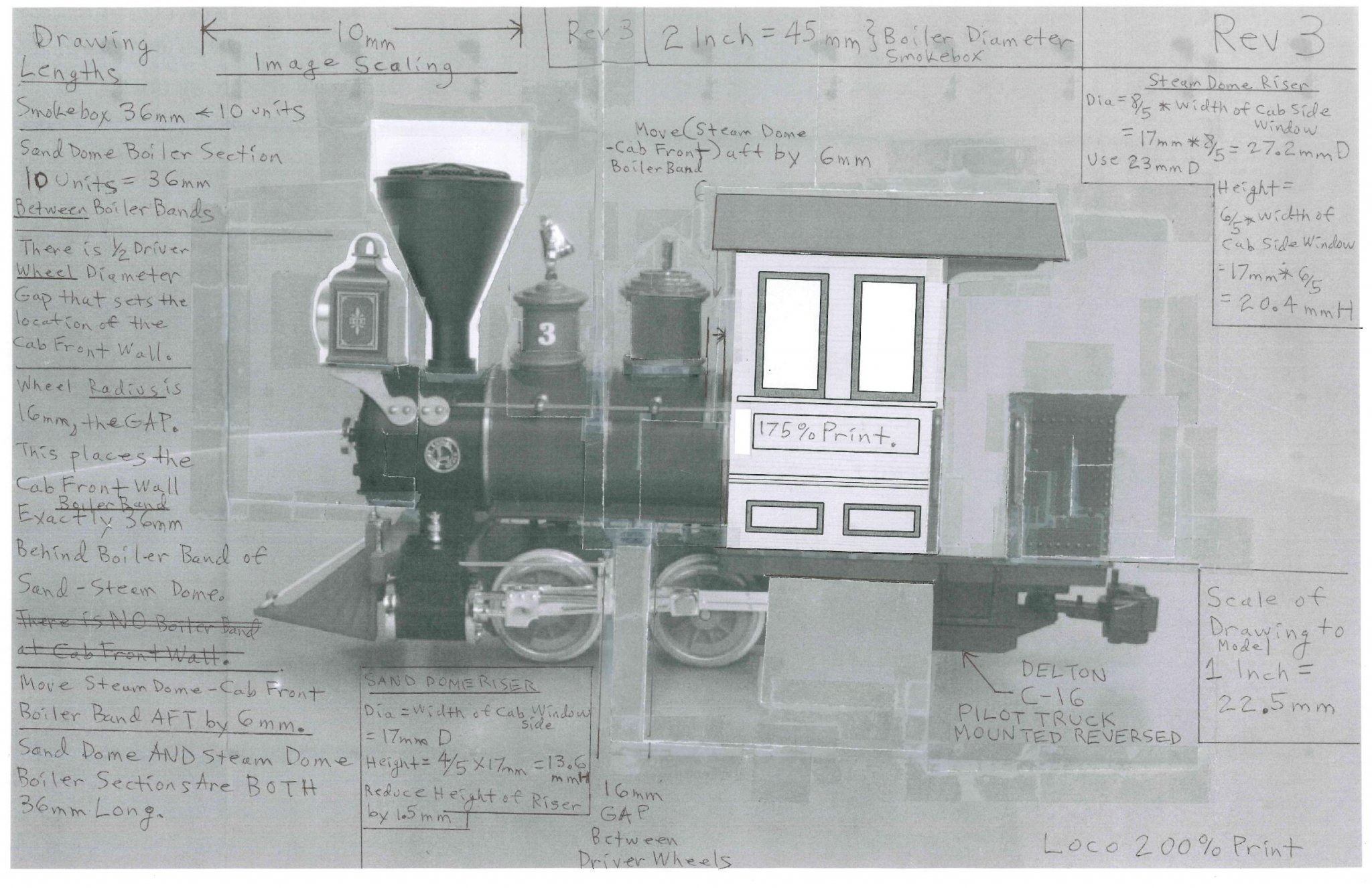

Drawing of the
DELTON-LIONEL 0-6-0T Rebuilt as the DELTON 0-4-2T .

Inline image

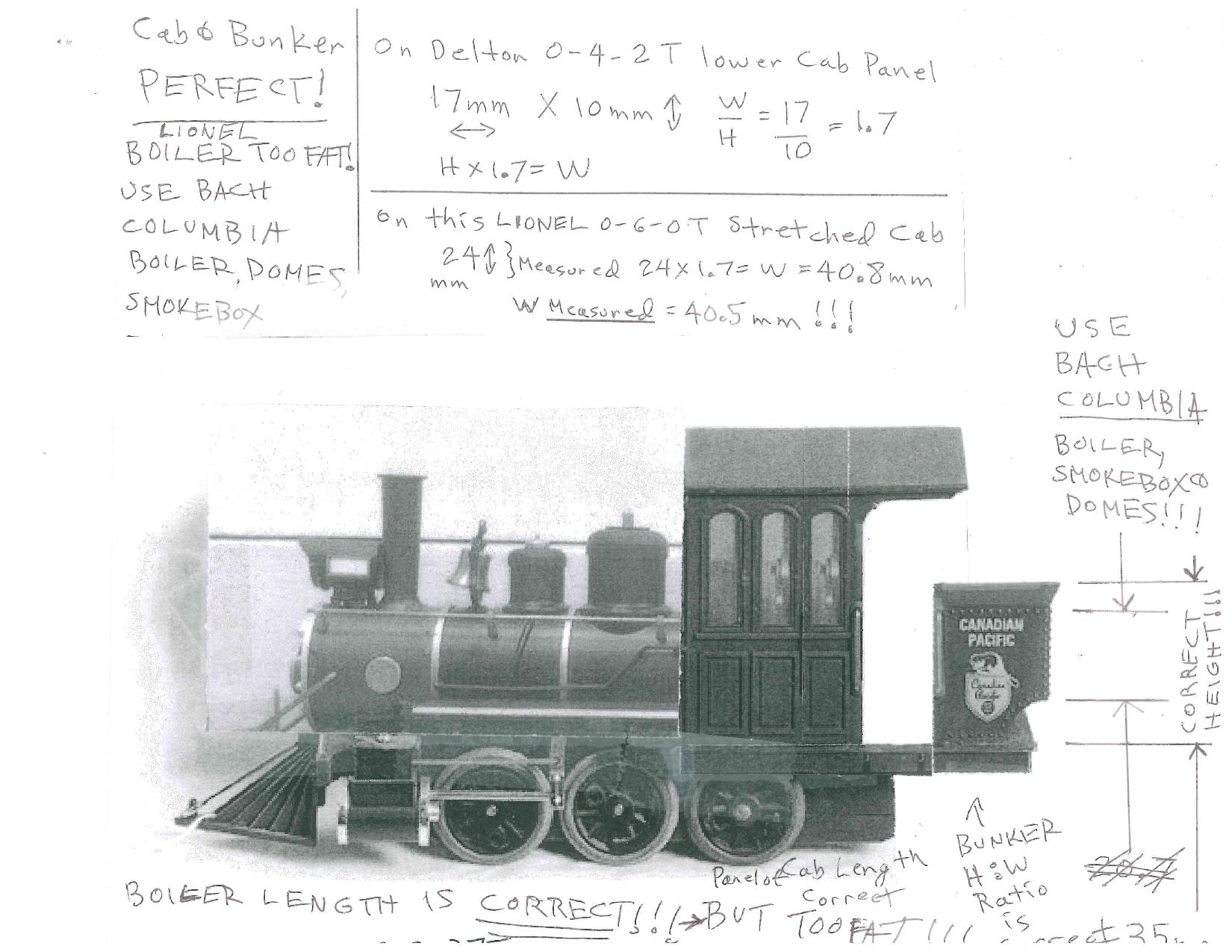

Calculations for the
- ( BACHMANN COLUMBIA 2-4-2 with Tender ,
Box HeadLamp, Smokebox, Boiler, Domes & Bell )
- ( DELTON C-16 2-6-0 ,
Steam Cylinders, Drive of 1st & 4th Axles, Pilot Truck as Trailing Truck )
- ( DELTON LIONEL 0-6-0T ,
Stack, Extended Cab, Fuel Bunker )
Rebuild as the DELTON 0-4-2T.

Inline image



Drawing of the
- BACHMANN COLUMBIA 2-4-2 with Tender ,
Box HeadLamp, Smokebox, Boiler, Domes & Bell.
- DELTON C-16 2-6-0 ,
Steam Cylinders, Drive of 1st & 4th Axles, Pilot Truck as Trailing Truck.
- DELTON LIONEL 0-6-0T ,
Stack, Extended Cab, Fuel Bunker.
Rebuild as the DELTON 0-4-2T.

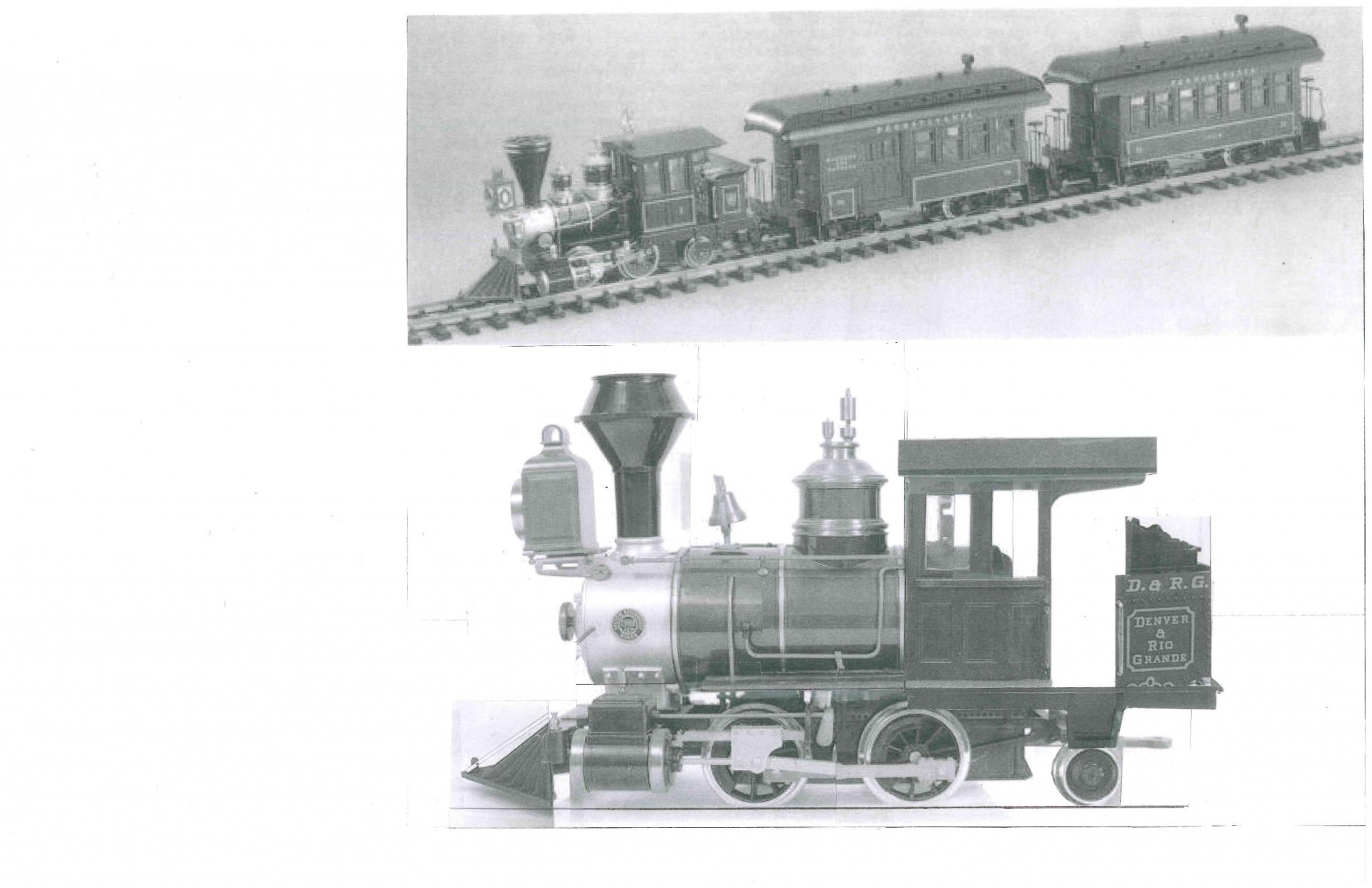

doc21508520200302165539-page-001 _1_.jpg

Inline image


My Personal Favourite,

Drawing of the

- BACHMANN COLUMBIA 2-4-2 with Tender ,
Box HeadLamp, Smokebox, Boiler, Domes & Bell.
- DELTON C-16 2-6-0 ,
Steam Cylinders, Pilot Truck as Trailing Truck, Headlamp Bracket, Compressed Cab.
- LGB Parts ,
DIAMOND Stack.
- DELTON LIONEL 0-6-0T ,
Cow Catcher.
Rebuild as the DELTON 0-4-2T.

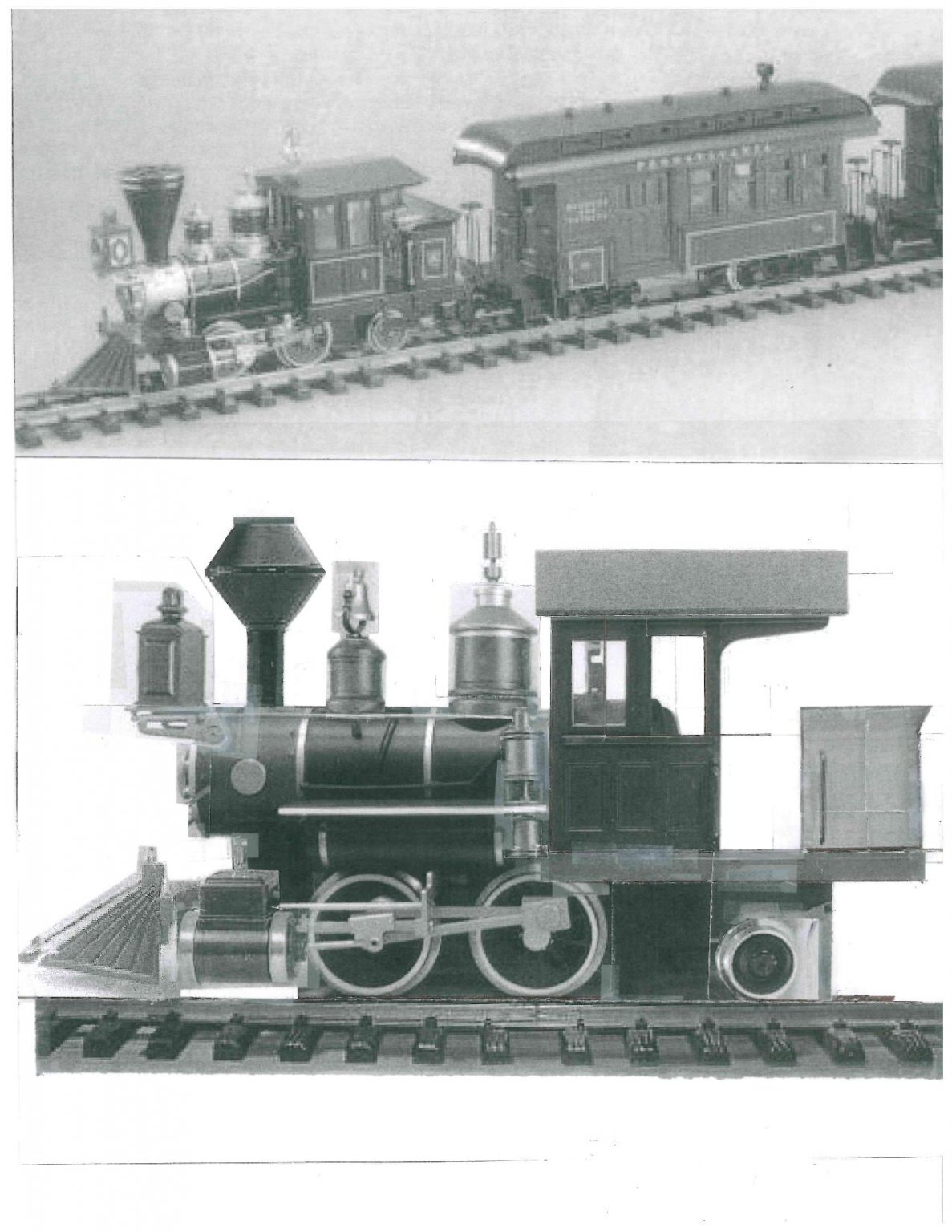

Inline image

Drawing of the
Compressed DELTON C-16 with the DELTON LIONEL 0-6-0T Bunker,

Inline image



Norman Bourgault

tac foley

tac foley

Registered
11 Apr 2017
2,435
540
74
Near Huntingdon, UK
...and now??????????

Are you going to convert something that never existed into something else that never existed?

This is a fine demonstration of the whimsy element of our modelling that makes it so much fun! :)
